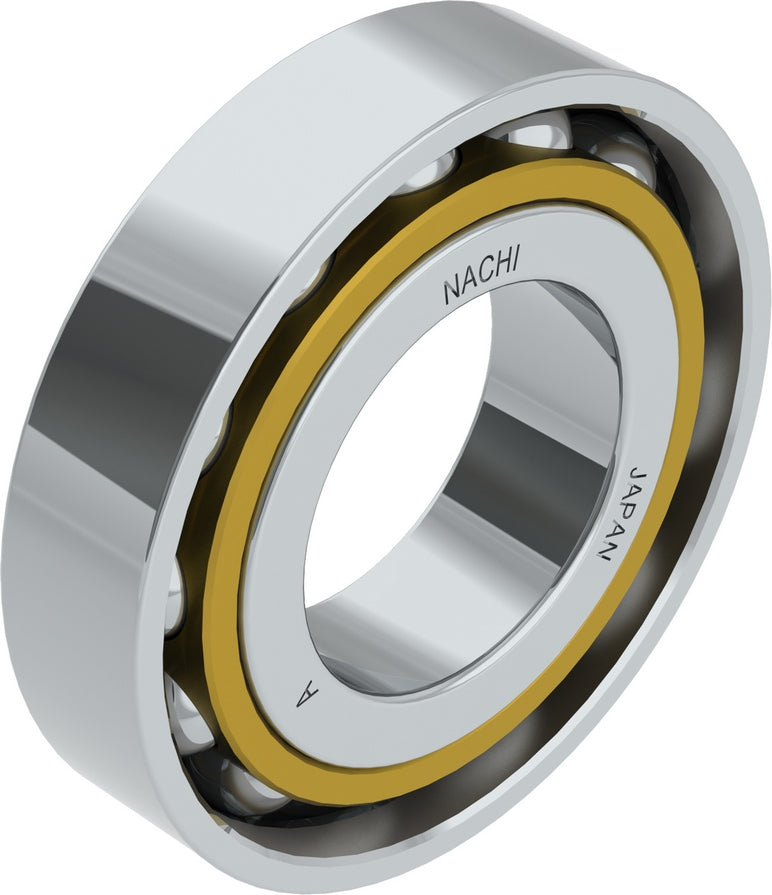

Nachi 7228BMUC3 - Angular Contact Ball Bearing - Single - 40°, 140x250x42mm
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Angular Contact Ball Bearing. Balls and the inner ring and outer ring raceways are designed for contact in a specific contact angle, which means this type of bearing is suitable for composite loads (axial load and radial load). The contact angle means that axial force components are generated when a radial load is applied, so these are normally used in pairs at either end of a shaft.
| Specifications | |
|---|---|
| Manufacturer Part Number | 7228BMUC3 |
| Nachi Package Code | 7228BMUC3BNLZ |
| UPC / EAN | 4991893846942 |
| Brand | Nachi |
| Bearing Type | Angular Contact Ball Bearing - Single - 40° |
| Product Series | 7200 SERIES ANGULAR CONTACT BALL BEARING |
| Inner Diameter (Bore) | 140 mm |
| Outer Diameter | 250 mm |
| Width | 42 mm |
| Bore Type | Cylindrical |
| Contact Angle | 40 |
| Dynamic Load Capacity | 197000 N |
| Static Load Capacity | 213000 N |
| Limiting Speed - Grease | 2200 RPM |
| Limiting Speed - Oil | 2900 RPM |
| Internal Clearance | C3 |
| Seals or Shields | No |
| Snap Ring | No |
| Grease Fill | No Fill |
| ISO Precision Class | P0 |
| Universally (Flush) Ground | Yes |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | Machined High Strength Brass Cage |
| Weight | 17 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.10.50.28 |
| Country of Origin | Japan |
With angular contact ball bearings, the balls and the inner ring and outer ring raceways form a specific angle of contact. When used in a single configuration, axial load is limited to a single direction, this type of bearing is suitable for bearing composite loads made up of axial and radial loads. Since this type of bearing has a contact angle, axial components are generated when a radial load is applied. Becasue of this, this type of bearing is normally used in pairs at either end of a shaft.
