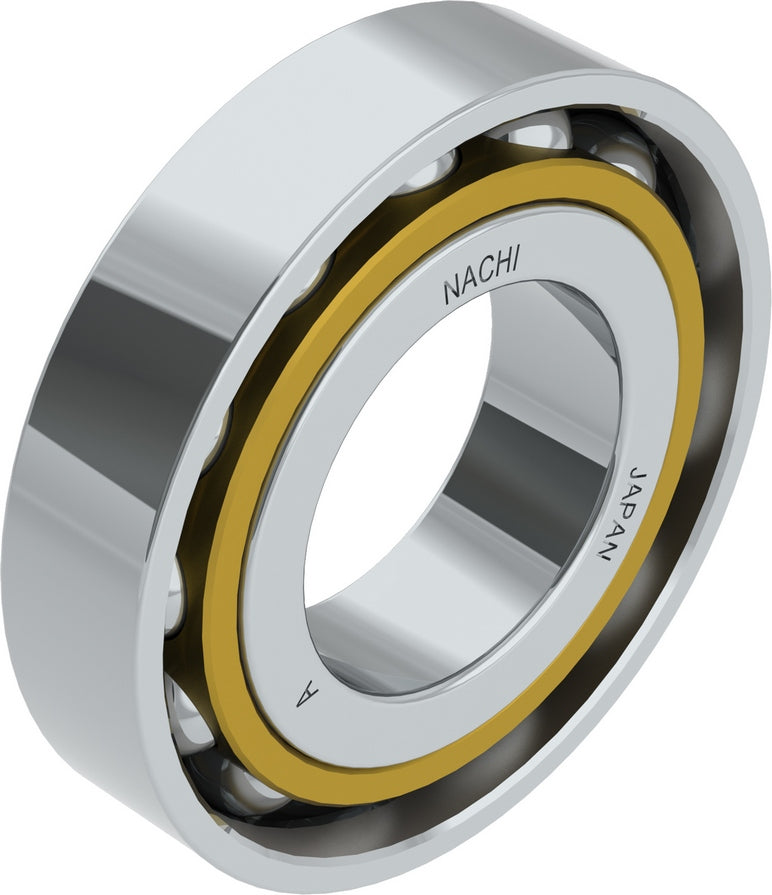

Nachi 7228BMBUC3 - Angular Contact Ball Bearing, 140x250x42mm
Regular price
$6,543.61 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Nachi's new BMBU 40 degree angular contact ball bearings have a counter bored inner ring and new optimized cage for better lubricant flow, especially in vertical shaft electric motor applications. Lower rotating mass results in better energy efficiency.
| Specifications | |
|---|---|
| Manufacturer Part Number | 7228BMBUC3 |
| Nachi Package Code | 7228BMBUC3BNLZ |
| UPC / EAN | 0 |
| Brand | Nachi |
| Bearing Type | Angular Contact Ball Bearing |
| Inner Diameter (Bore) | 140 mm |
| Outer Diameter | 250 mm |
| Width | 42 mm |
| Bore Type | Cylindrical |
| Contact Angle | 40° |
| Dynamic Load Capacity | 189000 N |
| Static Load Capacity | 201000 N |
| Limiting Speed - Grease | 2100 RPM |
| Limiting Speed - Oil | 2600 RPM |
| Internal Clearance | C3 Axial |
| Seals or Shields | No |
| Grease Fill | No Fill |
| ISO Precision Class | P0 |
| Universally (Flush) Ground | Yes |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | JIS HBsC Brass |
| Weight | 17 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.10.50.28 |
| Country of Origin | Japan |
