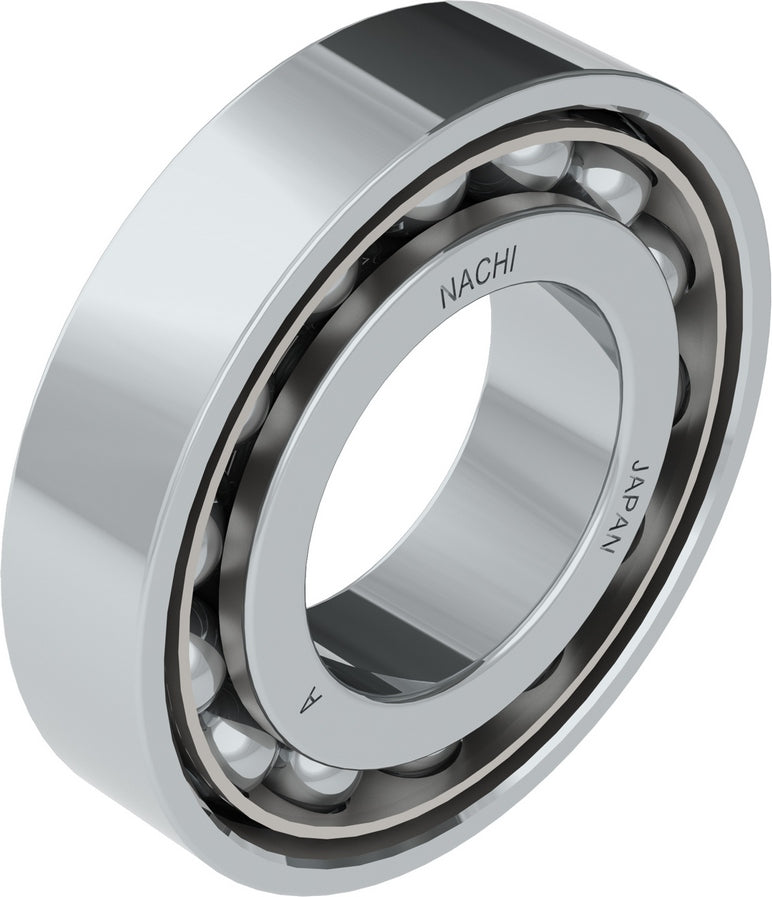

Nachi 7202B - Angular Contact Ball Bearing - Single - 40°, 15x35x11mm
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Angular Contact Ball Bearing. Balls and the inner ring and outer ring raceways are designed for contact in a specific contact angle, which means this type of bearing is suitable for composite loads (axial load and radial load). The contact angle means that axial force components are generated when a radial load is applied, so these are normally used in pairs at either end of a shaft.
| Specifications | |
|---|---|
| Manufacturer Part Number | 7202B |
| Nachi Package Code | 7202BBNLS |
| UPC / EAN | 4991893835793 |
| Brand | Nachi |
| Bearing Type | Angular Contact Ball Bearing - Single - 40° |
| Product Series | 7200 SERIES ANGULAR CONTACT PRECISION BRG |
| Inner Diameter (Bore) | 15 mm |
| Outer Diameter | 35 mm |
| Width | 11 mm |
| Bore Type | Cylindrical |
| Contact Angle | 40 |
| Dynamic Load Capacity | 8600 N |
| Static Load Capacity | 4500 N |
| Limiting Speed - Grease | 16000 RPM |
| Limiting Speed - Oil | 21000 RPM |
| Internal Clearance | CN/C0 |
| Seals or Shields | No |
| Snap Ring | No |
| Grease Fill | No Fill |
| ISO Precision Class | P0 |
| Universally (Flush) Ground | No |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | JIS SPCC Steel |
| Weight | 0.11 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.10.50.28 |
| Country of Origin | Japan |
With angular contact ball bearings, the balls and the inner ring and outer ring raceways form a specific angle of contact. When used in a single configuration, axial load is limited to a single direction, this type of bearing is suitable for bearing composite loads made up of axial and radial loads. Since this type of bearing has a contact angle, axial components are generated when a radial load is applied. Becasue of this, this type of bearing is normally used in pairs at either end of a shaft.
