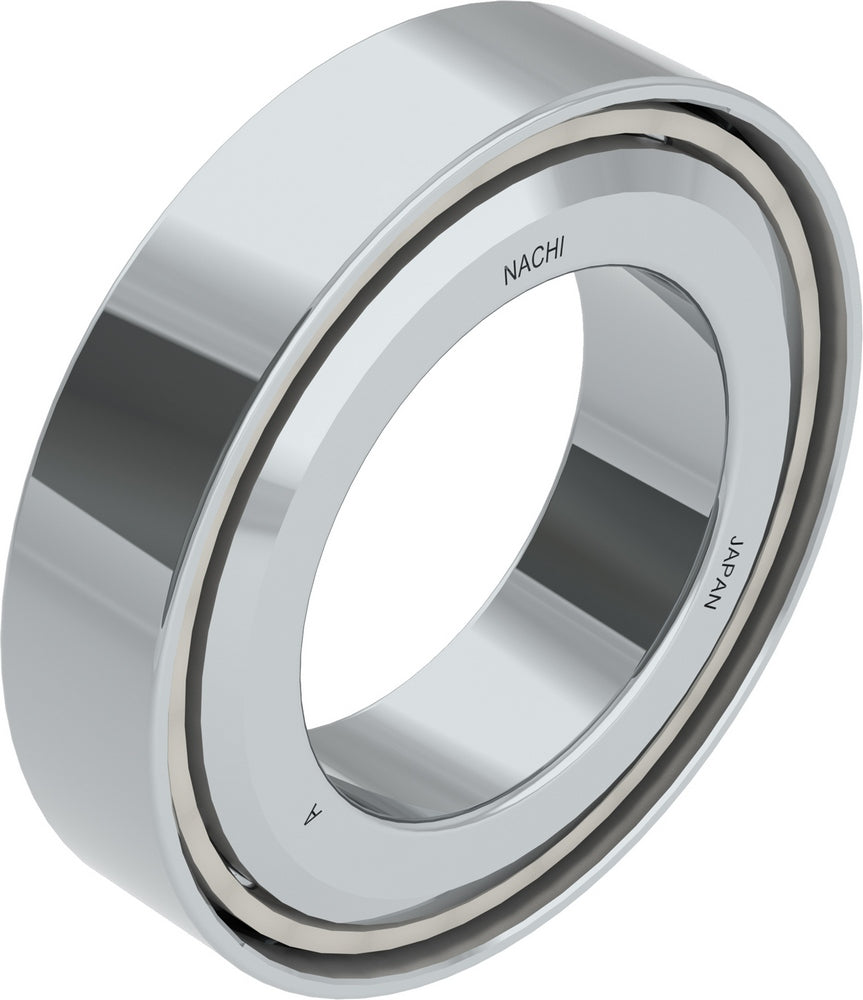

Nachi 65TAH10TDBP4 - Precision Thrust Load Angular Contact Ball Bearing, 65x100x33mm
Regular price
$4,990.91 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TAH Series beraings have a smaller contact angle than the previous TAD Series bearings, for less gyro-moment induced ball sliding and lower operating temperatures.
| Specifications | |
|---|---|
| Manufacturer Part Number | 65TAH10TDBP4 |
| Nachi Package Code | 65TAH10TDBP4 |
| Brand | Nachi |
| Bearing Type | Precision Thrust Load Angular Contact Ball Bearing |
| Product Series | TAA PRECISION BRG |
| Inner Diameter (Bore) | 65 mm |
| Outer Diameter | 100 mm |
| Width | 33 mm |
| Bore Type | Cylindrical |
| Contact Angle | 30° |
| Dynamic Load Capacity | 25600 N |
| Static Load Capacity | 61000 N |
| Limiting Speed - Grease | 9100 RPM |
| Limiting Speed - Oil | 11500 RPM |
| Preload | Medium |
| Seals or Shields | No |
| Grease Fill | No Fill |
| ISO Precision Class | P4 |
| Universally (Flush) Ground | No |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | Phenolic Resin |
| Weight | 1.01413 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.10.50.28 |
| Country of Origin | Japan |
Used to replaced obsolete TAD Series bearings.
