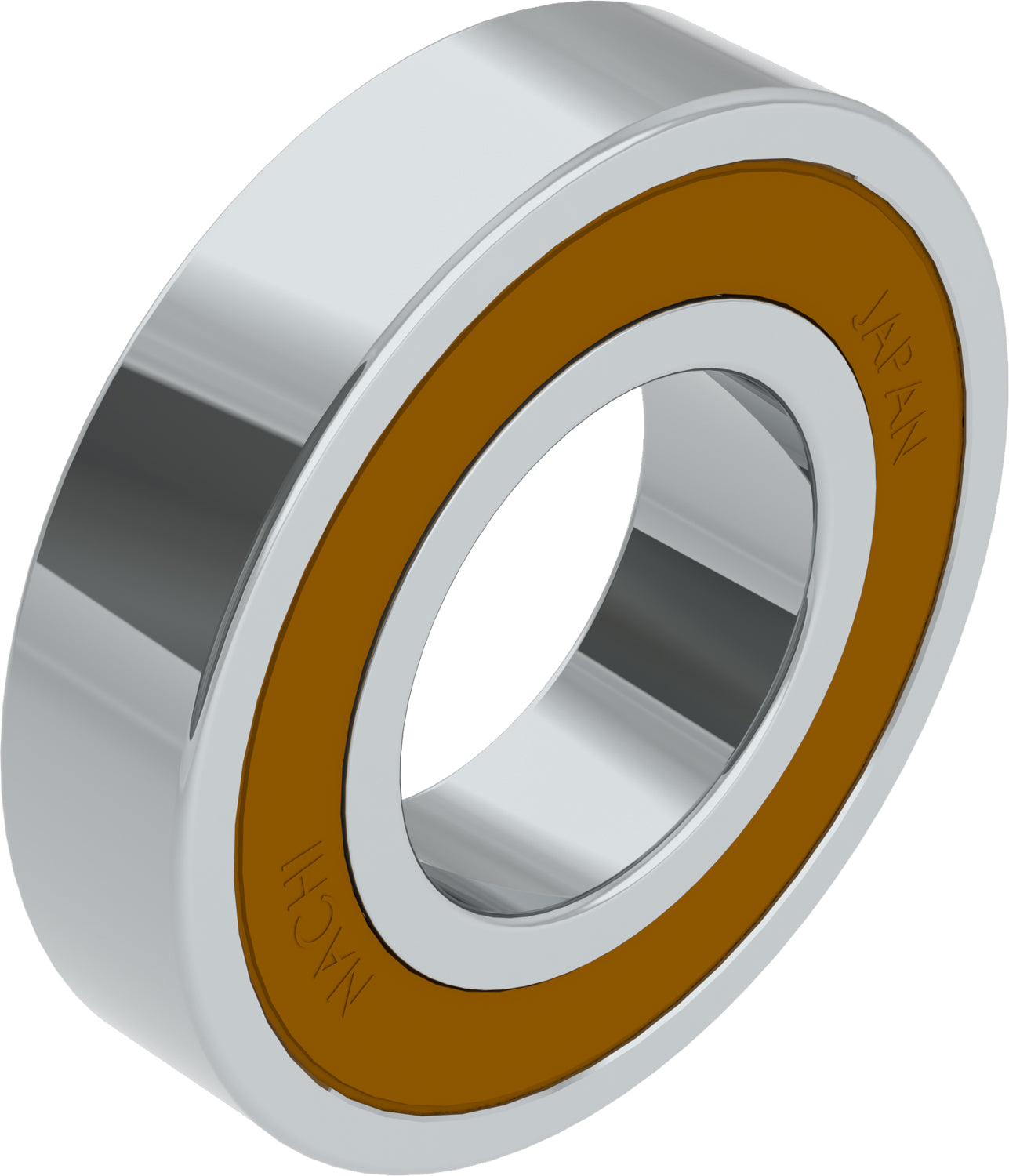

Nachi 6320-2NSLC3 - Deep Groove Ball Bearing, 100x215x47mm
Regular price
$2,983.64 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
| Specifications | |
|---|---|
| Manufacturer Part Number | 6320-2NSLC3 |
| Nachi Package Code | 63202NSLC3BSRS |
| UPC / EAN | 4991893796148 |
| Brand | Nachi |
| Bearing Type | Deep Groove Ball Bearing |
| Product Series | 6300 SERIES DEEP GROOVE RADIAL BALL BRG |
| Inner Diameter (Bore) | 100 mm |
| Outer Diameter | 215 mm |
| Width | 47 mm |
| Bore Type | Cylindrical |
| Dynamic Load Capacity | 173000 N |
| Static Load Capacity | 141000 N |
| Limiting Speed - Grease | 2200 RPM |
| Internal Clearance | C3 |
| Seals or Shields | 2 Contact Seals |
| Snap Ring | No |
| Grease Fill | Chevron SRI#2 |
| ISO Precision Class | P0 |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | JIS SPCC Steel |
| Weight | 15.43 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.10.50.56 |
| Country of Origin | Japan |
NACHI Deep-Groove Ball Bearings are available open, sealed, or shielded.
Part Number Designations
- (-2NSE9) = 2 High Performance NBR Contact Seals
- (-2NKE9) = 2 High Performance NBR Non-Contact Seals
- (ZZE) = 2 Heavy Duty Shields
- (-2NSL) = 2 Large Size NBR Contact Seals
- (ZZ) = 2 Large Size Shields
- (MY) = Brass Cage
