Nachi 51203G - Thrust Ball Bearing, 17x35x12mm
Regular price
$163.59 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

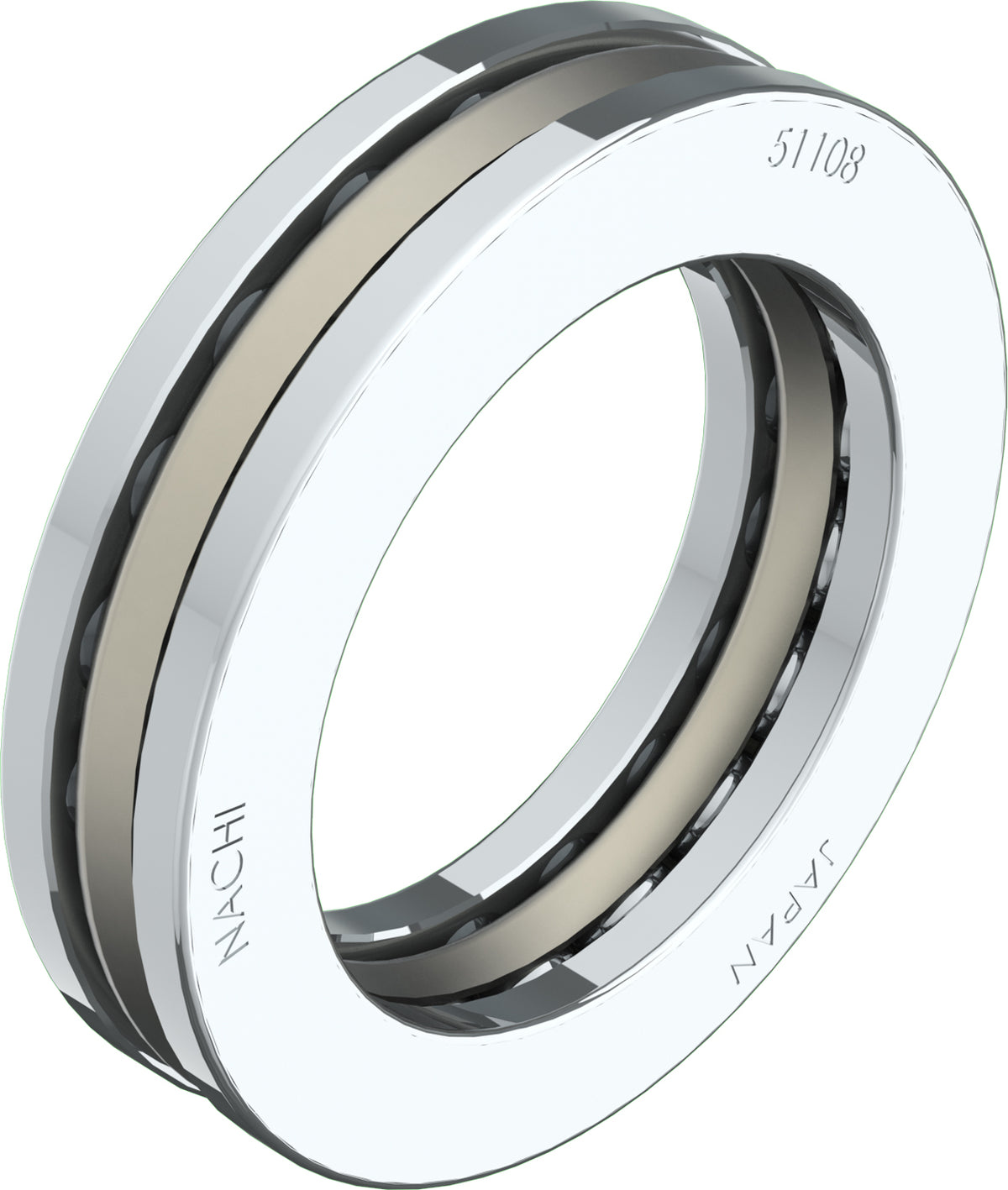

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Thrust Ball Bearings are made as single-direction and double-direction bearings. Single-direction Thrust Ball Bearings can sustain an axial load in only one direction, whereas Double-direction Thrust Ball Bearings can sustain bi-directional thrust load. Both types of Thrust Ball Bearings cannot sustain a radial load.
| Specifications | |
|---|---|
| Manufacturer Part Number | 51203G |
| Nachi Package Code | 51203GBNLS |
| UPC / EAN | 4991893595871 |
| Brand | Nachi |
| Bearing Type | Thrust Ball Bearing |
| Product Series | 51200 THRUST BALL BEARING |
| Inner Diameter (Bore) | 17 mm |
| Outer Diameter | 35 mm |
| Width | 12 mm |
| Bore Type | Cylindrical |
| Dynamic Load Capacity | 17100 N |
| Static Load Capacity | 27300 N |
| Limiting Speed - Grease | 4800 RPM |
| Limiting Speed - Oil | 7300 RPM |
| Internal Clearance | CN/C0 |
| Seals or Shields | No |
| Grease Fill | No Fill |
| ISO Precision Class | P0 |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | PA66 Polyamide Resin |
| Weight | 0.12 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.10.50.48 |
| Country of Origin | Japan |
Part Number Designations
- (G) = PA66 Polyamide cage
