Nachi 50TAB10UP4 - Ball Screw Support Bearing, 50x100x20mm
Regular price
$2,465.93 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

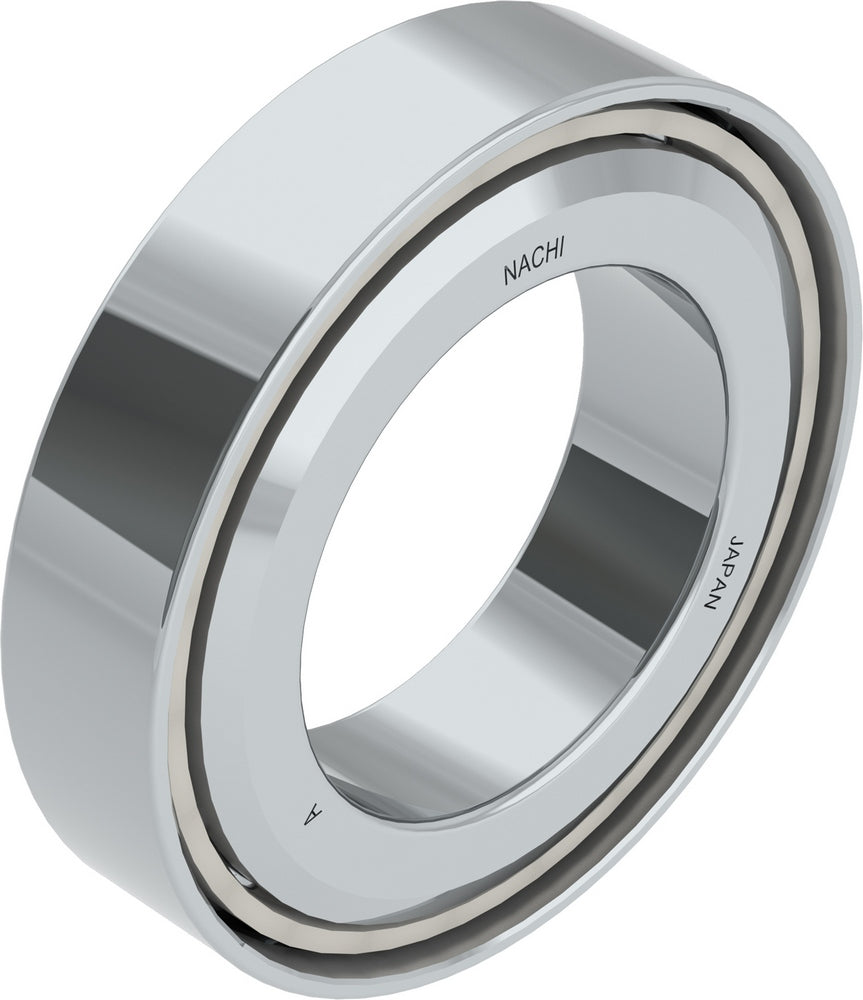

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
| Specifications | |
|---|---|
| Manufacturer Part Number | 50TAB10UP4 |
| Nachi Package Code | 50TAB10UP4M40060 |
| UPC / EAN | 4991893593457 |
| Brand | Nachi |
| Bearing Type | Ball Screw Support Bearing |
| Product Series | TAA PRECISION BRG |
| Inner Diameter (Bore) | 50 mm |
| Outer Diameter | 100 mm |
| Width | 20 mm |
| Bore Type | Cylindrical |
| Contact Angle | 60° |
| Dynamic Load Capacity | 69500 N |
| Static Load Capacity | 119000 N |
| Limiting Speed - Grease | 2800 RPM |
| Limiting Speed - Oil | 3500 RPM |
| Preload | Medium |
| Seals or Shields | No |
| Grease Fill | No Fill |
| ISO Precision Class | P4 |
| Universally (Flush) Ground | Yes |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | PA66 Polyamide Resin |
| Weight | 1.59 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.10.50.28 |
| Country of Origin | Japan |
NACHI's TAB Series Ball Srew Support Bearings are available open, contact sealed, or non-contact sealed.
