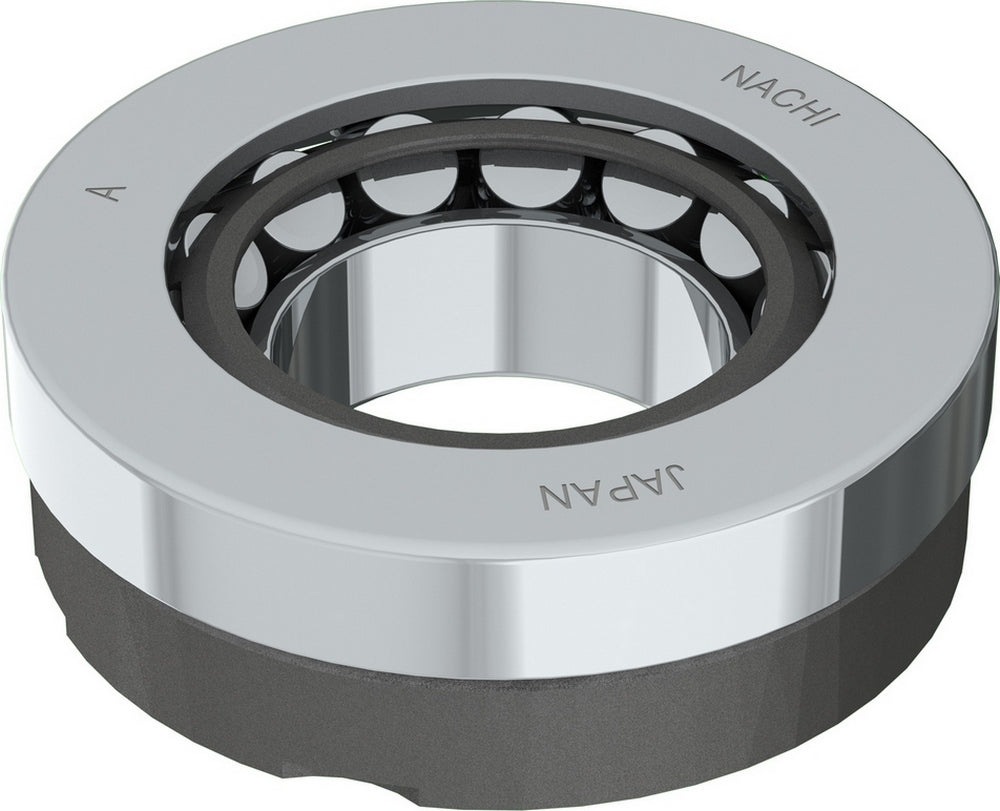

Nachi 29324EX - Spherical Roller Thrust Bearing, 120x210x54mm
Regular price
$6,694.55 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
NACHI Spherical Roller Thrust Bearings utilize barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for up to 2° of angular misalignment. There are two basic designs; A conventional “E-Type” design uses a machined brass cages while the “EX-Type” design uses an optimized internal design, larger rollers and a stamped steel cage for higher loads and longer life.
| Specifications | |
|---|---|
| Manufacturer Part Number | 29324EX |
| Nachi Package Code | 29324EXBNLW |
| UPC / EAN | 4991893556643 |
| Brand | Nachi |
| Bearing Type | Spherical Roller Thrust Bearing |
| Product Series | 29300 SPHERICAL THRUST ROLLER BEARING |
| Inner Diameter (Bore) | 120 mm |
| Outer Diameter | 210 mm |
| Width | 54 mm |
| Bore Type | Cylindrical |
| Dynamic Load Capacity | 670000 N |
| Static Load Capacity | 2160000 N |
| Limiting Speed - Grease | 1100 RPM |
| Limiting Speed - Oil | 1900 RPM |
| Internal Clearance | CN/C0 |
| Grease Fill | No Fill |
| ISO Precision Class | P0 |
| Max Operating Temp. | 200°C (392°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | JIS SPCC Steel |
| Weight | 17.41 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.30.00.80 |
| Country of Origin | Japan |
