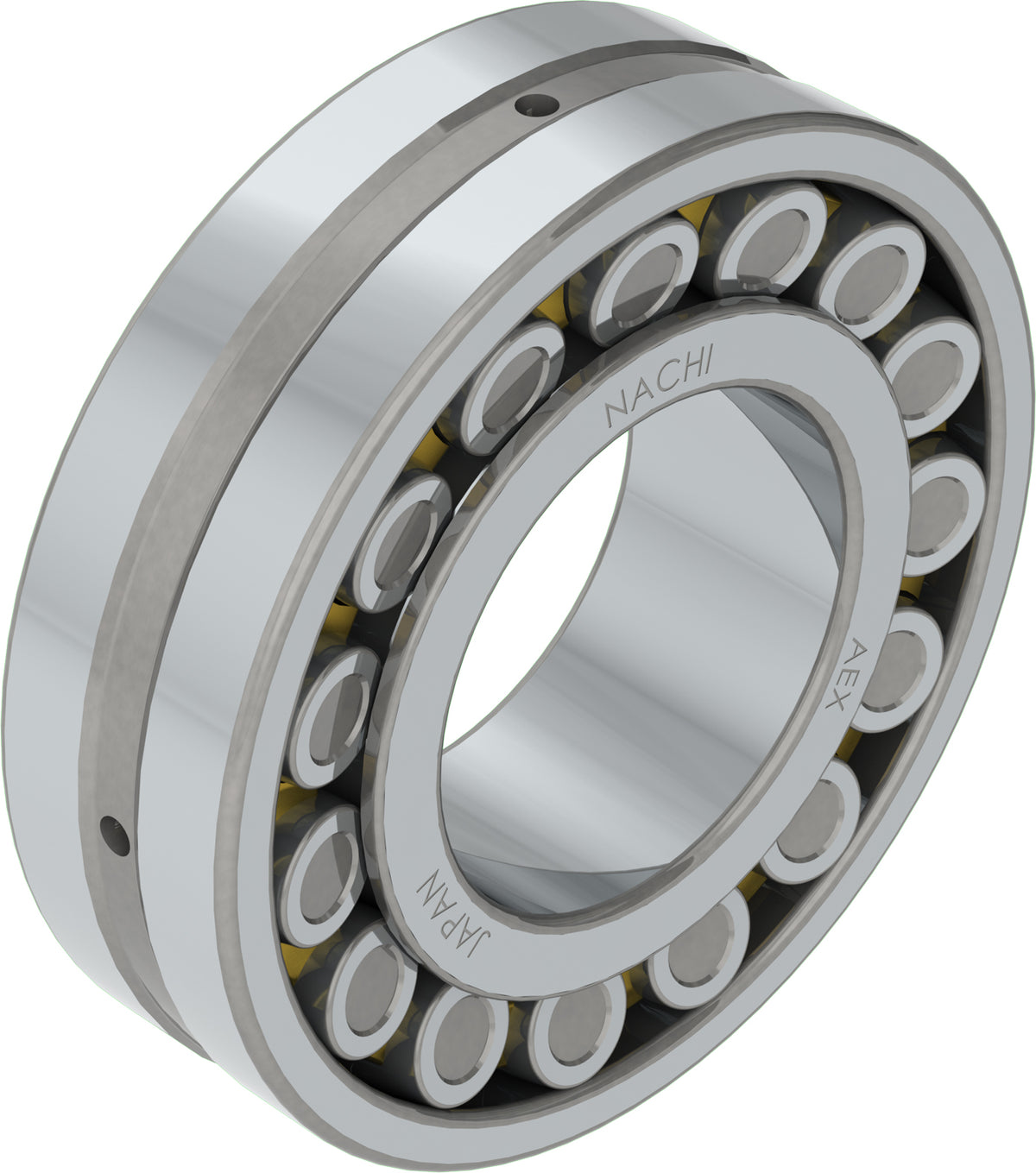

Nachi 23048EW33KC3 - Spherical Roller Bearing, 240x360x92mm
Regular price
$14,943.55 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. See Table 1 for the roller, the guide ring and cage design for NACHI Spherical Roller Bearings. They can sustain radial and axial loads.
| Specifications | |
|---|---|
| Manufacturer Part Number | 23048EW33KC3 |
| Nachi Package Code | 23048EW33KC3BNLZ |
| UPC / EAN | 4991893856224 |
| Brand | Nachi |
| Bearing Type | Spherical Roller Bearing |
| Product Series | 23000 SPHERICAL ROLLER BEARING |
| Inner Diameter (Bore) | 240 mm |
| Outer Diameter | 360 mm |
| Width | 92 mm |
| Bore Type | Tapered |
| Dynamic Load Capacity | 1530000 N |
| Static Load Capacity | 2000000 N |
| Limiting Speed - Grease | 1200 RPM |
| Limiting Speed - Oil | 1500 RPM |
| Internal Clearance | C3 |
| Seals or Shields | No |
| Grease Fill | No Fill |
| ISO Precision Class | P0 |
| Max Operating Temp. | 200°C (392°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | Machined High Strength Brass Cage |
| Weight | 73.83 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.30.00.80 |
| Country of Origin | Japan |
Symmetric rollers - Inner ring rib -
Part Number Designations
- (W33) = Lubricant groove and holes on outer ring - (K) = Tapered bore 1:12
