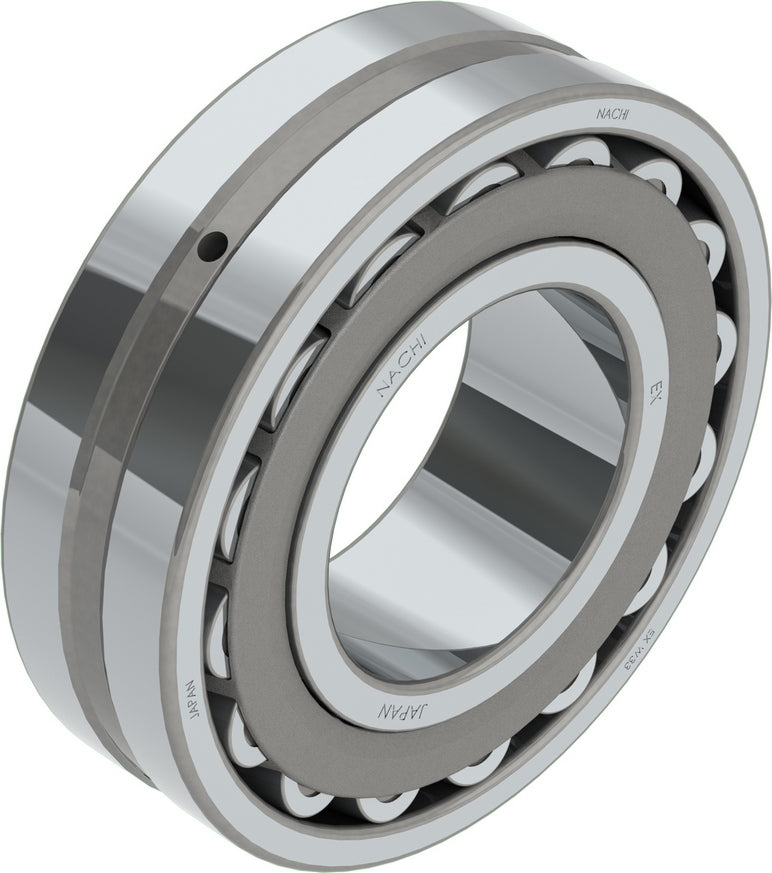

Nachi 22320EXQW33VCS147 - Spherical Roller Bearing, 100x215x73mm
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Nachi is proud to introduce our new Vibrating Screen Bearing for applications with high impact or heavy vibrations. Nachi integrated a hardened steel cage into the standard EXQ High Capacity Bearings. The EXQ-V cage is 10 times more impact-resistant than standard cages.
| Specifications | |
|---|---|
| Manufacturer Part Number | 22320EXQW33VCS147 |
| Nachi Package Code | 22320EXQW33VCS147BNL |
| Brand | Nachi |
| Bearing Type | Spherical Roller Bearing |
| Product Series | 22300 SPHERICAL ROLLER BEARING |
| Inner Diameter (Bore) | 100 mm |
| Outer Diameter | 215 mm |
| Width | 73 mm |
| Bore Type | Cylindrical |
| Dynamic Load Capacity | 975000 N |
| Static Load Capacity | 875000 N |
| Limiting Speed - Grease | 2200 RPM |
| Limiting Speed - Oil | 2900 RPM |
| Internal Clearance | C4 (Special) |
| Seals or Shields | No |
| Grease Fill | No Fill |
| ISO Precision Class | Special |
| Max Operating Temp. | 200°C (392°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | Nitrocarburized Steel |
| Weight | 32.41 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.30.00.80 |
| Country of Origin | Japan |
The new EXQ-V cage has increased tensile strength is more fatigue resistant and more resistant to wear. Nachi’s EXQ-V spherical roller bearing design maintains high load capacities by utilizing the longest length & largest diameter rollers in the market. The floating guide ring and new EXQ-V cage design generates less heat and promotes lower operating temperatures.
Part Number Designations
- (W33) = Lubricant groove and holes on outer ring
