MHS-120V-2ESAC
Regular price
$16,668.75 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

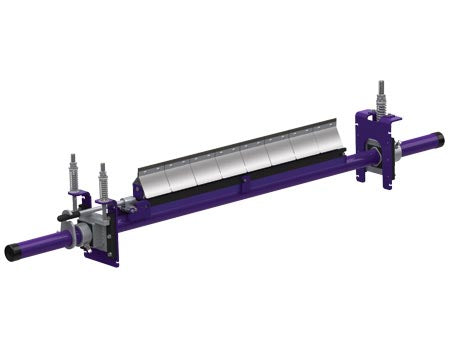

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Specifications
| Attribute | Value |
|---|---|
| Belt Width (in.) | 120 |
| Belt Width (mm) | 3000 |
| Blade Configuration | Dual Cartridge |
| Blade Material | Tungsten Carbide V-Tips (for vulcanized belts only) |
| Tips Required | 20 |
| CEMA Rating | Class 5 |
| Horizontal Clearance Required (in.) | 4-1/2 |
| Horizontal Clearance Required (mm) | 114 |
| Maximum Belt Speed (FPM) | 1200 |
| Maximum Belt Speed (M/sec) | 6 |
| Maximum Conveyor Span (in.) | 168 |
| Maximum Conveyor Span (mm) | 4200 |
| Pole Diameter (in.) | 2-7/8 |
| Pole Diameter (mm) | 73 |
| Pole Length (in.) | 180 |
| Pole Length (mm) | 4500 |
| Temperature Range (C) | -35° to 82° |
| Temperature Range (F) | -30° to 180° |
| Tensioner | Dual CST Spring Tensioners |
| Usable Blade Wear Length (in.) | 88 |
| Usable Blade Wear Length (mm) | 9 |
| Vertical Clearance Required (in.) | 12-1/2 |
| Vertical Clearance Required (mm) | 318 |
| Weight (kg) | 196.1 |
| Weight (lbs) | 432.5 |
