MBC-60-575V-S
Regular price
$12,851.25 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

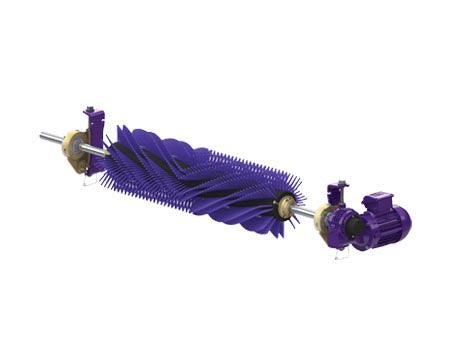

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Specifications
| Attribute | Value |
|---|---|
| Belt Width (in.) | 60 |
| Belt Width (mm) | 1500 |
| Maximum Belt Speed (FPM) | 700 |
| Maximum Belt Speed (M/sec) | 3.5 |
| Temperature Range (C) | -30° to 82° |
| Temperature Range (F) | -20° to 180° |
| Horizontal Clearance Required (in.) | 12 |
| Horizontal Clearance Required (mm) | 305 |
| Overall Shaft Length (in.) | 102 |
| Overall Shaft Length (mm) | 2567 |
| Shaft Diameter (in.) | 1 1/2 |
| Shaft Diameter (mm) | 38 |
| Vertical Clearance Required (in.) | 12 |
| Vertical Clearance Required (mm) | 305 |
| Maximum Chevron or Cleat Height (in.) | 1/2 |
| Maximum Chevron or Cleat Height (mm) | 13 |
| Motor Voltage | 575V 3-Phase |
| Bristle Length (in.) | 3 1/4 |
| Bristle Length (mm) | 83 |
| CEMA Rating | Class 4 |
| Motor HP | 2 HP |
| Weight (kg) | 87.0 |
| Weight (lbs) | 192.0 |
| Motor Standard | IP66 |
