Marathon Electric Inverter (Vector) Duty Motor, 2 HP, 3 Ph, 60 Hz, 230/460 V, 1800 & 1800 RPM, 182TC Frame, TENV
Regular price
$2,427.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

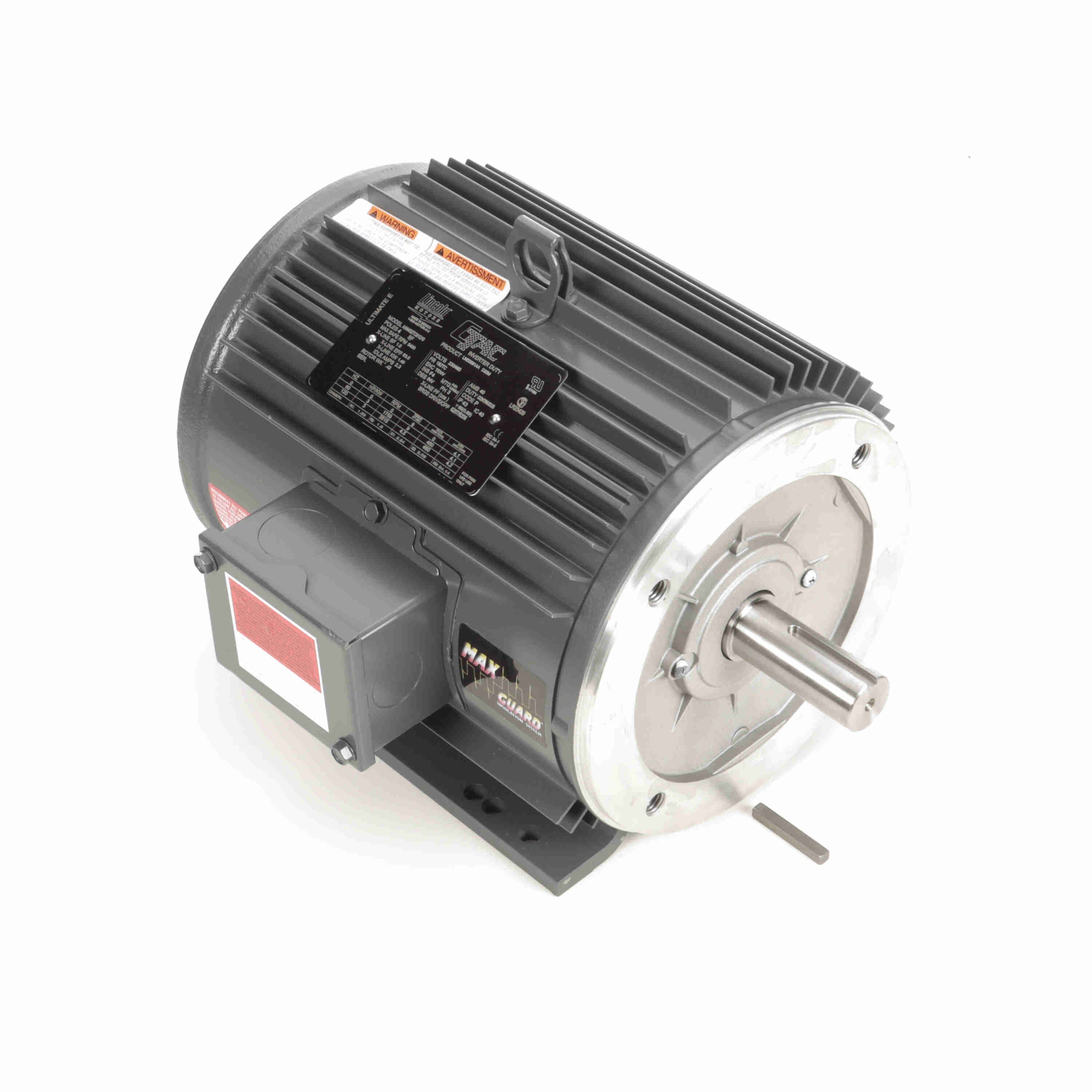

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Inverter (Vector) Duty Motor, 2 HP, 3 Ph, 60 Hz, 230/460 V, 1800 & 1800 RPM, 182TC Frame, TENV
Features
- Class H inverter rated insulation system
- Constant torque operation from 0 to base RPM rating with vector drives
- C Face with rigid base through 100 HP on LEESON models, Lincoln models through 5 HP
- TEBC designs utilize 3-phase blower motors
- Normally closed thermostats
- Cast iron, Steel and Aluminum frame construction
- Provisions for Encoder feedback devices
- Precision balanced rotors
- UL recognized and CSA certified
Specifications
| Performance & Electrical | |
| Power | 2 HP |
| Power (dual rating) | 2 HP |
| Power | 1.5 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1770 RPM |
| Speed (dual) | 1770 RPM |
| Full-load current | 8.2/3.3 A |
| Current (dual) | 8.2/3.3 A |
| Nominal efficiency | 83.5% |
| Power factor | 69% |
| Service factor | 1.00 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | INV |
| KVA code | P |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Duty |
| Starting method | Inverter Only |
| Main winding resistance | 0 Ω |
| Frame & Mechanical | |
| Frame | 182TC |
| Frame size | 182 |
| Frame suffix | TC |
| Frame material | Aluminum |
| Frame length | 9.5 in |
| Enclosure | Totally Enclosed Non Ventilated |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Selective Clockwise |
| Max ambient | 40 |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 2.62 in |
| Shaft type | T |
| C dimension | 15.88 in |
| Drive-end bearing | 6207 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 0501020LN |
| Outline drawing | 036143LN-950 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 18.31 × 13.50 × 13.38 in |
| Weight | 74.00 lb |
| Identification | |
| Manufacturer part / model | LM33591 |
| Catalog number | LM33591 |
| UPC | 691720044896 |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
