Marathon Electric Elevator Duty Motor, 25 & 20 HP, 3 Ph, 60 & 60 Hz, 200 & 200 V, 3600 & 3600 RPM, 160TZ Frame, OPEN
Regular price
$2,074.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

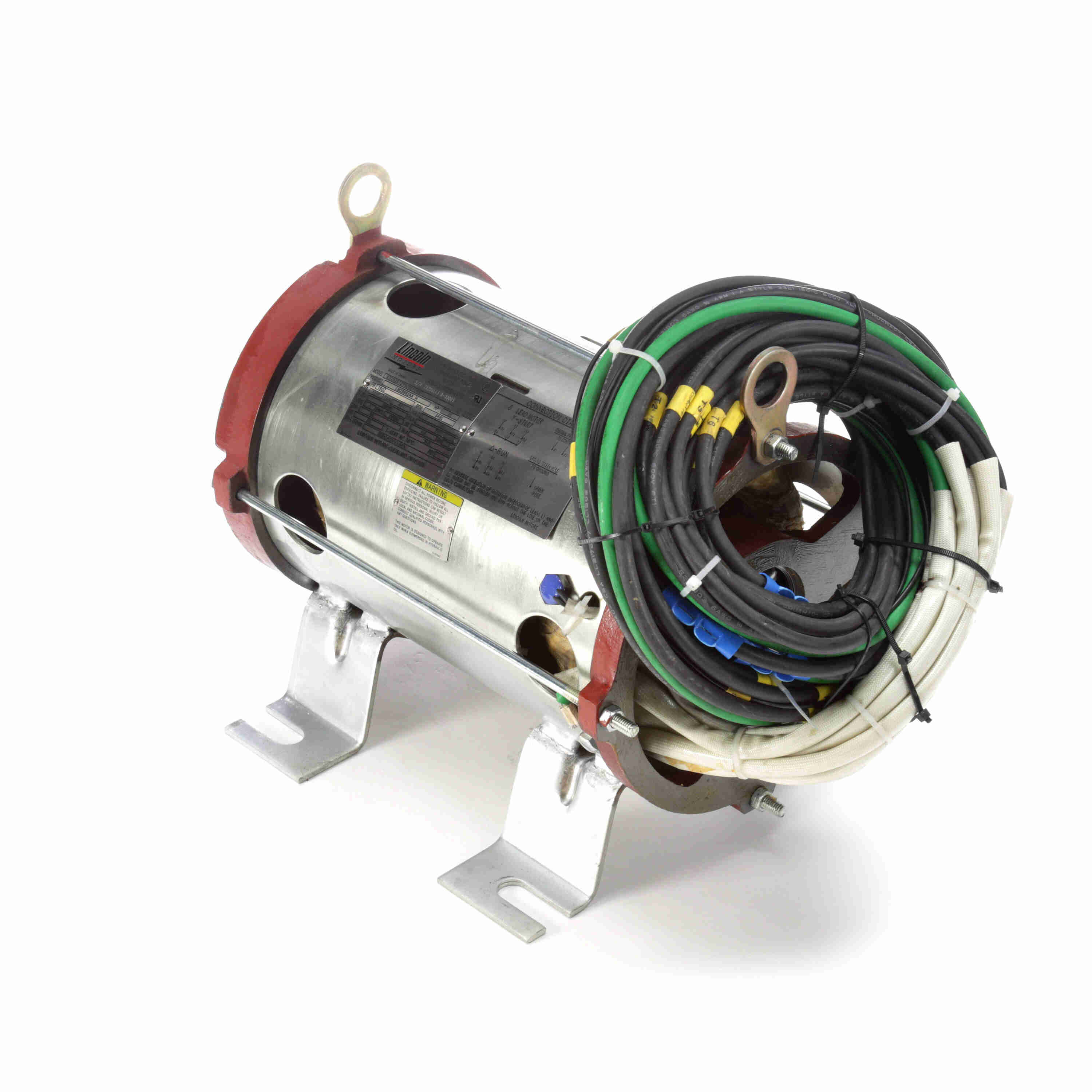

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Elevator Duty Motor, 25 & 20 HP, 3 Ph, 60 & 60 Hz, 200 & 200 V, 3600 & 3600 RPM, 160TZ Frame, OPEN
Features
- Intermittent duty
- Suitable for Wye-Delta starters
- 1.0 service factor and 70°C ambient rated
- Three bolt circles, 12 mounting holes, and face mounting to accept both the IMO and Allweiler pumps
- 10 foot long leads, spliced 40 inches from motor to prevent wicking of hydraulic fluid
- Thermostat leads are marked P1 and P2
- Class F insulation
- Two stainless steel nameplates, one shipped separate for remote mount
- UL recognized component listing and CSA approved
Specifications
| Performance & Electrical | |
| Power | 25 HP |
| Power (dual rating) | 25 & 20 HP |
| Power | 18.7 kW |
| Voltage | 200 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 3505 RPM |
| Speed (dual) | 3505 & 3530 RPM |
| Full-load current | 72.5 A |
| Current (dual) | 72.5 & 59 A |
| Nominal efficiency | 86.5% |
| Power factor | 86% |
| Service factor | 1 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | 120/80 Starts/Hour |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Wye Start Delta Run |
| Main winding resistance | .647 Ω |
| Frame & Mechanical | |
| Frame | 160TZ |
| Frame size | 160 |
| Frame suffix | TZ |
| Frame material | Rolled Steel |
| Frame length | 12. in |
| Enclosure | Open |
| IP rating | IP10 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 70°C |
| Shaft & Bearings | |
| Shaft diameter | 1.25 in |
| Shaft extension | 2.92 in |
| Shaft type | Single Special Extension |
| C dimension | 14.53 in |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6307 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | A-92652 |
| Outline drawing | 0216000039 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 17.00 × 13.50 × 16.00 in |
| Weight | 135.00 lb |
| Identification | |
| Manufacturer part / model | LM29662 |
| Catalog number | LM29662 |
| UPC | 691720399965 |
| Country of origin | China |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
