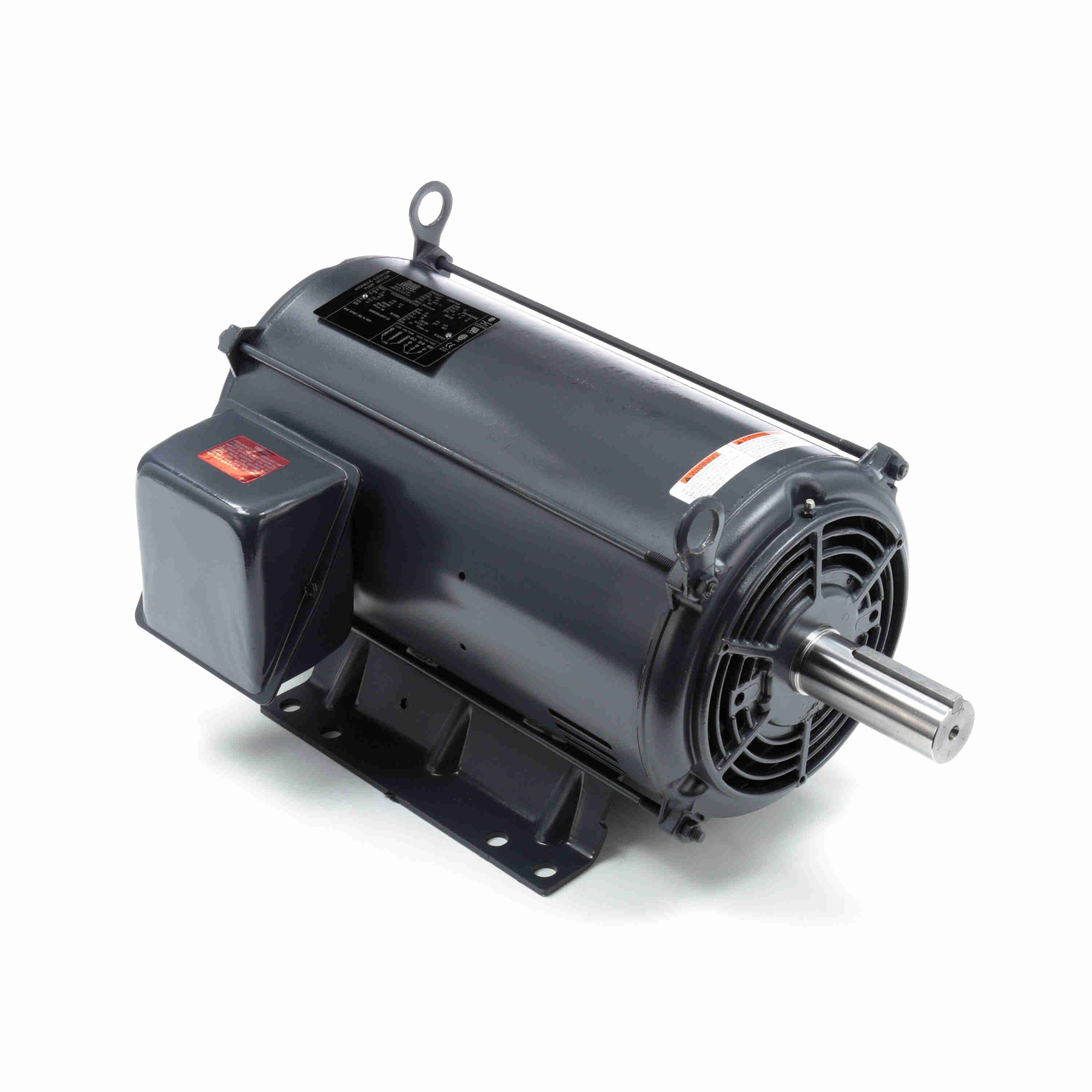

Marathon Electric Elevator Duty Motor, 15 & 20 HP, 3 Ph, 60 & 60 Hz, 230/460 & 230/460 V, 1800 & 1800 RPM, 254T Frame, DP
Regular price
$2,216.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Elevator Duty Motor, 15 & 20 HP, 3 Ph, 60 & 60 Hz, 230/460 & 230/460 V, 1800 & 1800 RPM, 254T Frame, DP
Features
- Dual rated nameplates for 80 & 120 starts/hour
- Designed for belt driven pumps
- Wye Start/Delta Run
- Class F Insulated; 40° C ambient
- F-1 mounting
- Ball bearings with grease fittings and automatic relief
- NEMA® dimensions
- UL recognized component listing and CSA approved
- Constructed for low noise and low vibration
Specifications
| Performance & Electrical | |
| Power | 15 HP |
| Power (dual rating) | 15 & 20 HP |
| Power | 11.2 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1760 RPM |
| Speed (dual) | 1760 & 1760 RPM |
| Full-load current | 38.5/19.2 A |
| Current (dual) | 38.5/19.2 & 51.5/25.7 A |
| Nominal efficiency | 91% |
| Power factor | 80.2% |
| Service factor | 1 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | INV |
| KVA code | E |
| Duty | 120/80 Starts/Hour |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Wye Start Delta Run |
| Main winding resistance | .62 Ω |
| Frame & Mechanical | |
| Frame | 254T |
| Frame size | 254 |
| Frame suffix | T |
| Frame material | Rolled Steel |
| Frame length | 15.45 in |
| Enclosure | Drip Proof |
| IP rating | IP12 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.625 in |
| Shaft extension | 4 in |
| Shaft type | T |
| C dimension | 22.32 in |
| Drive-end bearing | 6309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6208 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7358 |
| Outline drawing | SS86503LN-1545 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 25.94 × 16.50 × 18.00 in |
| Weight | 205.00 lb |
| Identification | |
| Manufacturer part / model | LM28874 |
| Catalog number | LM28874 |
| UPC | 691720103159 |
| Country of origin | United States of America |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
