Marathon Electric General Purpose Motor, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 380-415 V, 1200 & 1000 RPM, 286TC Frame, TEFC
Regular price
$6,388.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

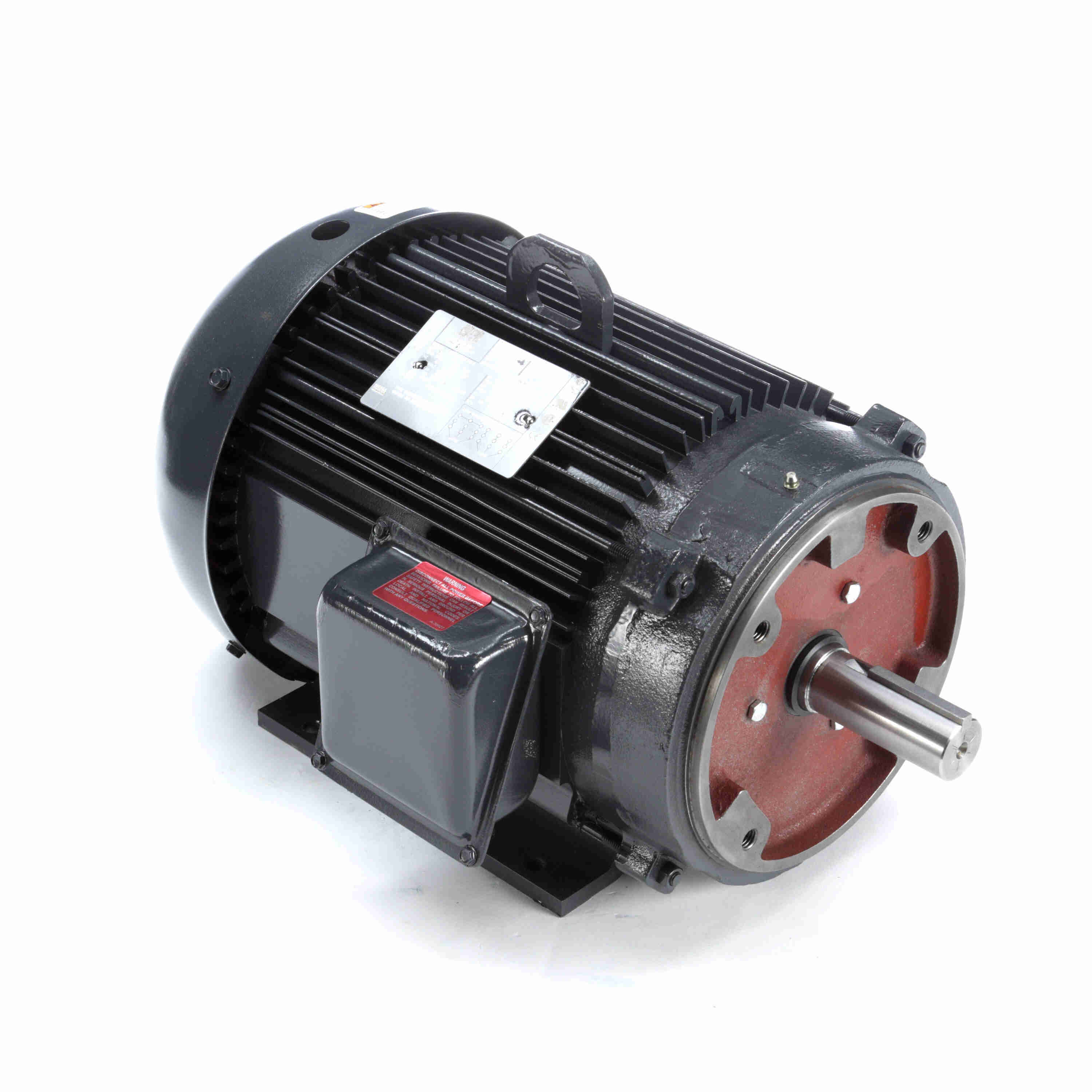

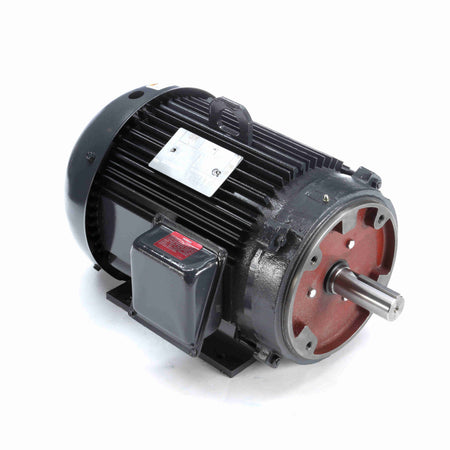

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 380-415 V, 1200 & 1000 RPM, 286TC Frame, TEFC
Features
- Inverter-rated; Nameplated for 50 Hz operation
- Class B insulation systems, Class F 140 frame and higher
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Aluminum
- UL recognized and CSA certified
Specifications
| Performance & Electrical | |
| Power | 20 HP |
| Power (dual rating) | 20 & 15 HP |
| Power | 14.9 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1182 RPM |
| Speed (dual) | 1182 & 984 RPM |
| Full-load current | 61.0/30.5 A |
| Current (dual) | 61/30.5 & 27.5-28.5 A |
| Nominal efficiency | 91.7% |
| Power factor | 66.5% |
| Service factor | 1.15 |
| Number of poles | 6 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | F |
| Duty | CONTINUOUS |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | WYE START DELTA RUN |
| Main winding resistance | .3499 Ω |
| Frame & Mechanical | |
| Frame | 286TC |
| Frame size | 286 |
| Frame suffix | TC |
| Frame material | ALUMINUM |
| Frame length | 15.25 in |
| Enclosure | TEFC |
| IP rating | IP43 |
| Insulation class | F3 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1 7/8 in |
| Shaft extension | 4.38 in |
| Shaft type | T |
| C dimension | 28.01 in |
| Drive-end bearing | 6312 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6209 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| Connection drawing | EE7358 |
| Outline drawing | XF5F1SC1-1525 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.75 × 21.75 × 18.00 in |
| Weight | 415.00 lb |
| Identification | |
| Manufacturer part / model | LM16769 |
| Catalog number | LM16769 |
| UPC | 691720061862 |
| Country of origin | United States of America |
| Substitute part | 286TTFCD6078 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
