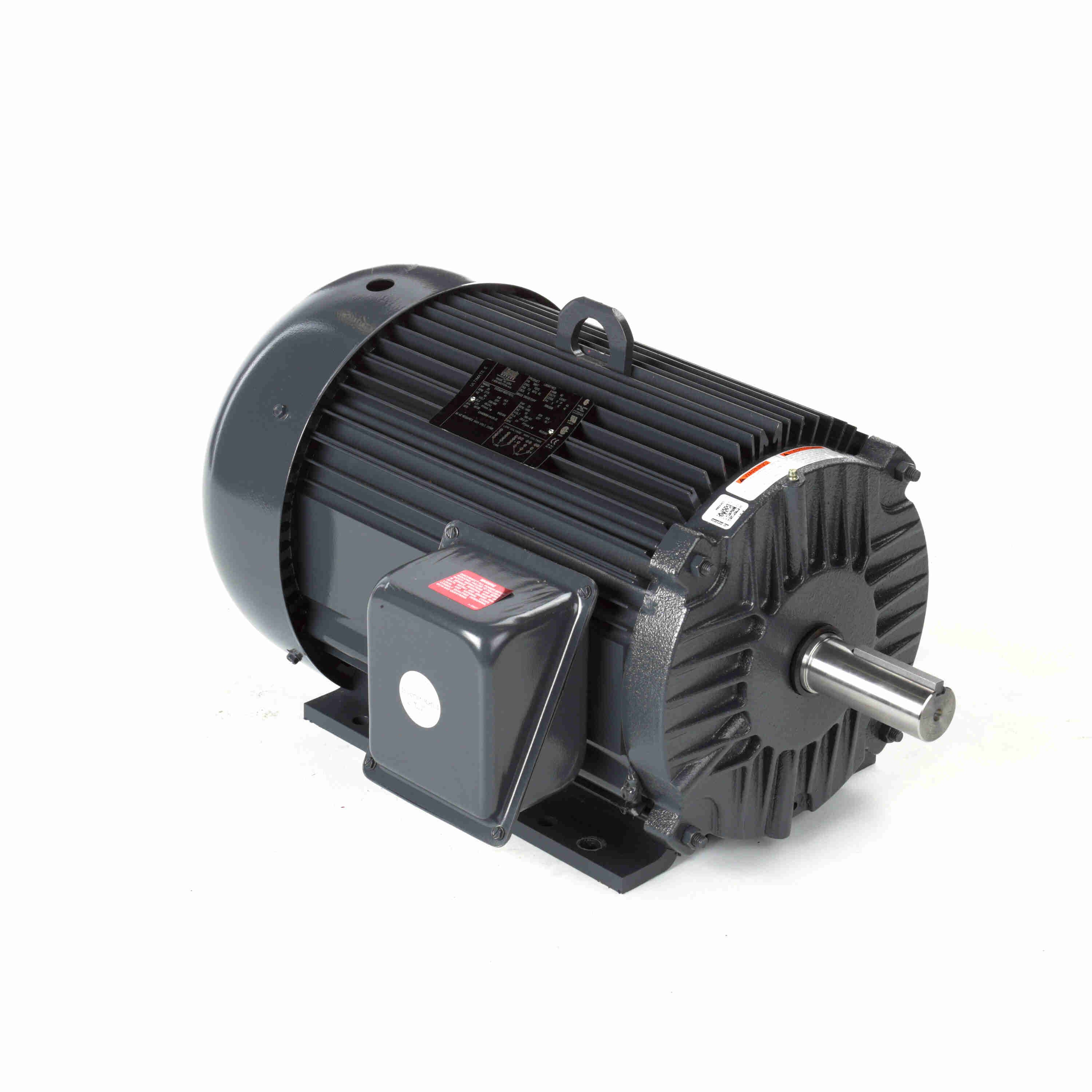

Marathon Electric General Purpose Motor, 20 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 380-415 V, 1800 & 1500 RPM, 256T Frame, TEFC
Regular price
$3,249.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 20 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 380-415 V, 1800 & 1500 RPM, 256T Frame, TEFC
Features
- Premium efficient ratings
- Inverter-rated; Continuous duty
- Class F insulation system – 140 frame and higher
- Class F insulation system – 140 frame and higher
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Dynamically balanced rotors
- Torques exceed NEMA performance standards; UL recognized and CSA certified
Specifications
| Performance & Electrical | |
| Power | 20 HP |
| Power (dual rating) | 20 & 20 HP |
| Power | 14.9 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1775 RPM |
| Speed (dual) | 1775 & 1450 RPM |
| Full-load current | 48.0/24.1 A |
| Current (dual) | 48/24.1 & 28.5-27 A |
| Nominal efficiency | 93% |
| Power factor | 84% |
| Service factor | 1.25 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | CONTINUOUS |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Y START D RUN OR INV |
| Main winding resistance | .474 Ω |
| Frame & Mechanical | |
| Frame | 256T |
| Frame size | 256 |
| Frame suffix | T |
| Frame material | ALUMINUM |
| Frame length | 13.75 in |
| Enclosure | TEFC |
| IP rating | IP43 |
| Insulation class | F3 |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | HORIZONTAL |
| Rotation | REV |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1 5/8 in |
| Shaft extension | 4 in |
| Shaft type | T |
| C dimension | 25.15 in |
| Drive-end bearing | 6309 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6208 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| Connection drawing | EE7358 |
| Outline drawing | SS321100LN-1375 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 31.25 × 22.25 × 18.00 in |
| Weight | 295.00 lb |
| Identification | |
| Manufacturer part / model | LM15674 |
| Catalog number | LM15674 |
| UPC | 691720021095 |
| Country of origin | United States of America |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
