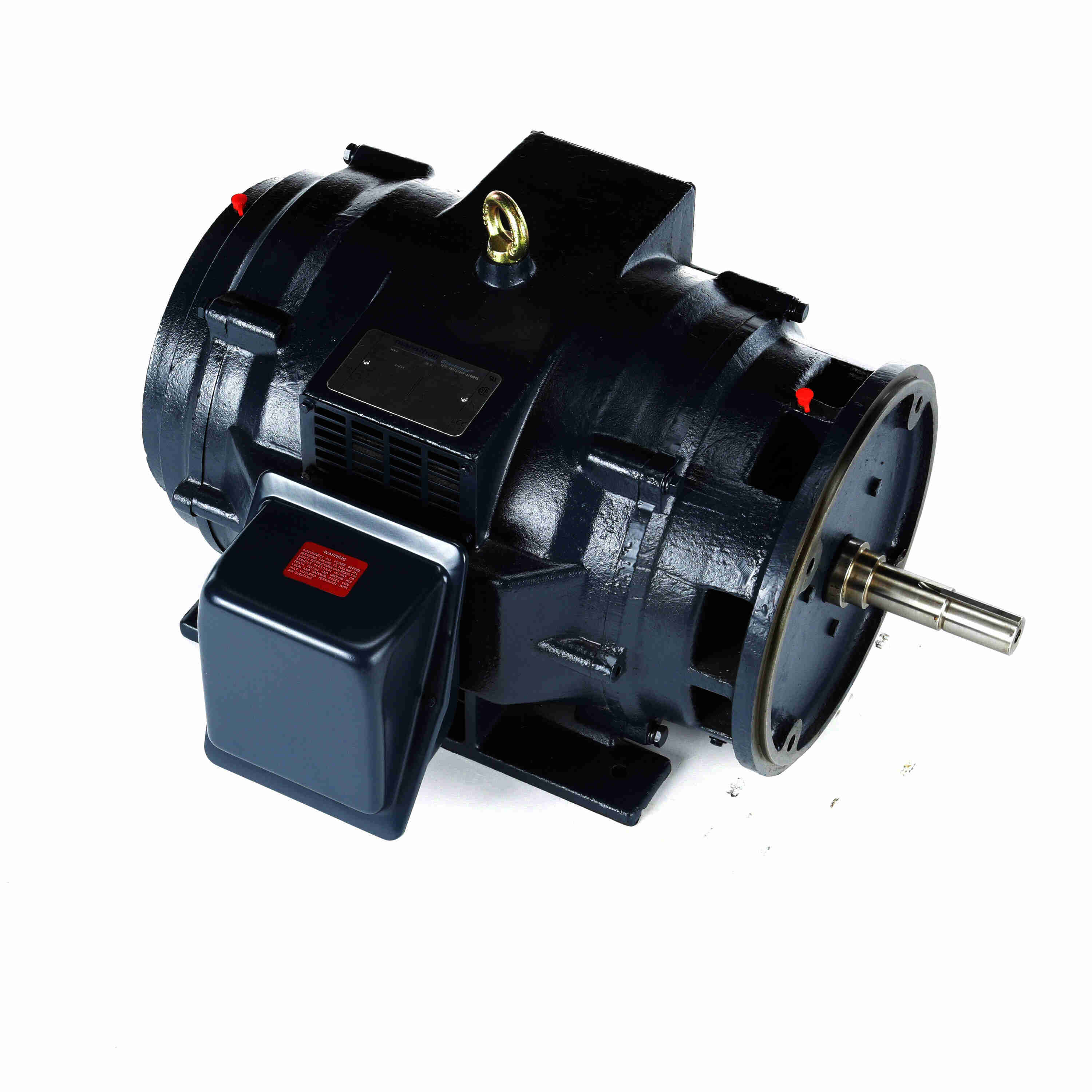

Marathon Electric Inverter (Vector) Duty Motor, 5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 & 1800 RPM, 213TC Frame, TENV
Regular price
$5,710.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Inverter (Vector) Duty Motor, 5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 & 1800 RPM, 213TC Frame, TENV
Features
- Inverter duty insulation system
- Constant HP range at 2x base speed 56 - 256T frames
- Constant HP range at 1.5x base speed 284T - 445T frames
- Includes 1024 ppr encoder with differential line driver
- Normally enclosed thermostats
- Steel and aluminum frame construction - see Notes
- C Face designs through 10 HP
- Precision balanced rotors
Specifications
| Performance & Electrical | |
| Power | 5 HP |
| Power (dual rating) | 5 HP |
| Power | 3.7 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1760 RPM |
| Speed (dual) | 1760 RPM |
| Full-load current | 15.6/7.8 A |
| Current (dual) | 15.6/7.8 A |
| Nominal efficiency | 82.5% |
| Power factor | 73% |
| Service factor | 1.00 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | INV |
| KVA code | L |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Duty |
| Starting method | Inverter Only |
| Main winding resistance | 2 Ω |
| Frame & Mechanical | |
| Frame | 213TC |
| Frame size | 213 |
| Frame suffix | TC |
| Frame material | Aluminum |
| Frame length | 8. in |
| Enclosure | Totally Enclosed Non Ventilated |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40 |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft extension | 3.38 in |
| Shaft type | T |
| C dimension | 21.14 in |
| Drive-end bearing | 6208 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308T |
| Outline drawing | SS330213LN-800 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 30.19 × 16.50 × 14.00 in |
| Weight | 129.00 lb |
| Identification | |
| Manufacturer part / model | LM04003 |
| Catalog number | LM04003 |
| UPC | 691720060797 |
| Country of origin | United States of America |
| Substitute part | 184THTY17038 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
