Marathon Electric Agricultural Motor, 10.0 HP, 1 Ph, 60 Hz, 230 V, 1800 RPM, F215T Frame, TEFC
Regular price
$2,806.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

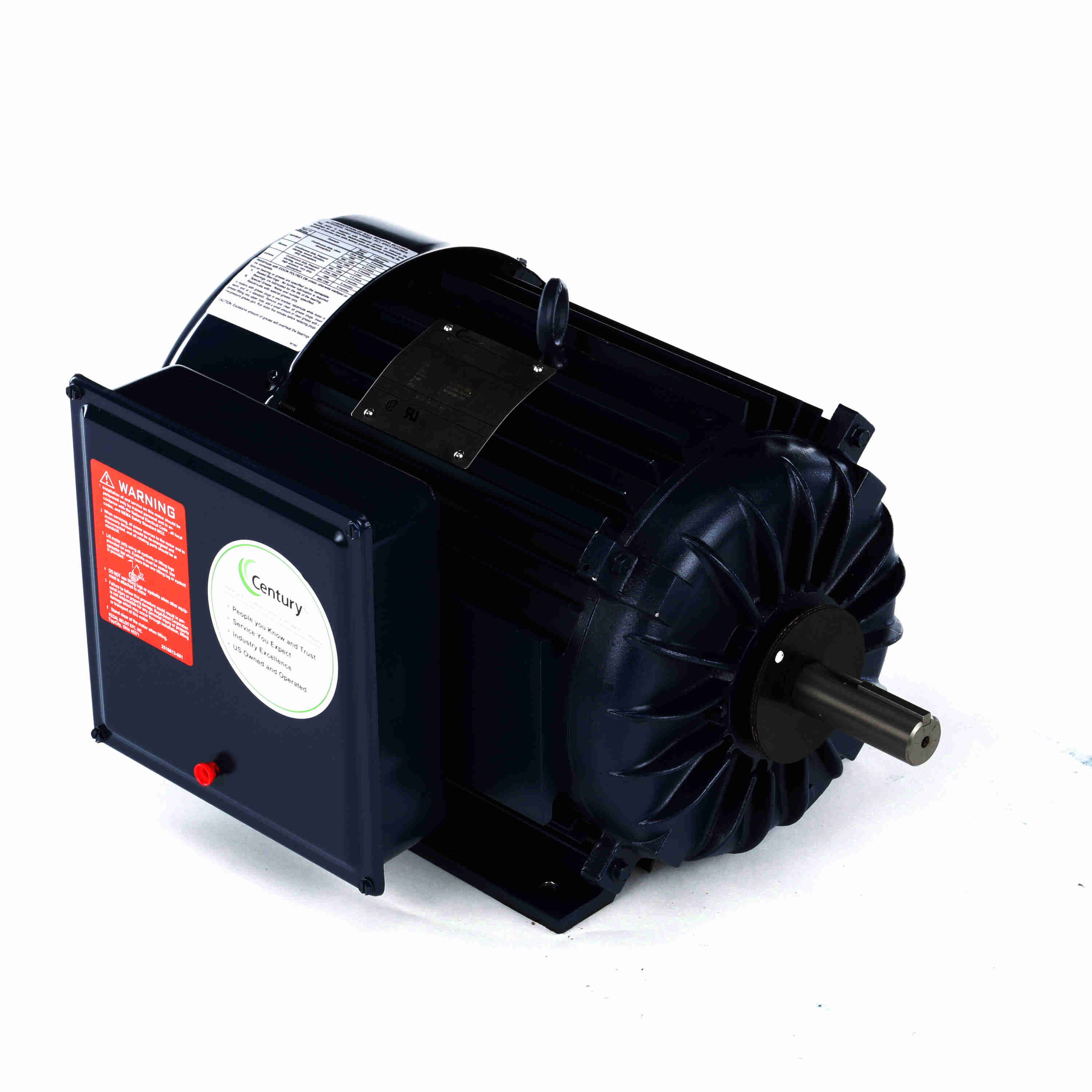

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Agricultural Motor, 10.0 HP, 1 Ph, 60 Hz, 230 V, 1800 RPM, F215T Frame, TEFC
Features
- High starting torque
- Removable condensate drain plugs
- Manual reset thermal protector
- All parts are corrosion resistant
Specifications
| Performance & Electrical | |
| Power | 10 HP |
| Power (dual rating) | 10.0 HP |
| Power | 7.5 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 1730 RPM |
| Speed (dual) | 1730 RPM |
| Current (dual) | 39.0 A |
| Service factor | 1 |
| Number of poles | 4 |
| Number of speeds | 1 |
| Duty | Continuous |
| Electrical type | Capacitor Start Capacitor Run |
| Starting method | Across The Line |
| Frame & Mechanical | |
| Frame | F215T |
| Frame size | 215 |
| Frame prefix | F |
| Frame suffix | T |
| Frame material | Aluminium |
| Frame length | 9. in |
| Enclosure | Totally Enclosed Fan Cooled |
| Insulation class | F |
| Mounting | Rigid Base |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft extension | 3.50 in |
| Shaft type | Keyed |
| C dimension | 19.13 in |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing type | Ball |
| Overload protection | Manual |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 35463501 |
| Outline drawing | K302M2-S01 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 24.75 × 18.00 × 12.00 in |
| Weight | 162.00 lb |
| Identification | |
| Manufacturer part / model | K302M2 |
| Catalog number | K302M2 |
| UPC | 786674069252 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.40.6040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
