MTA SIZE 8407, 79:1, 320 C-FACE
Regular price
$27,440.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

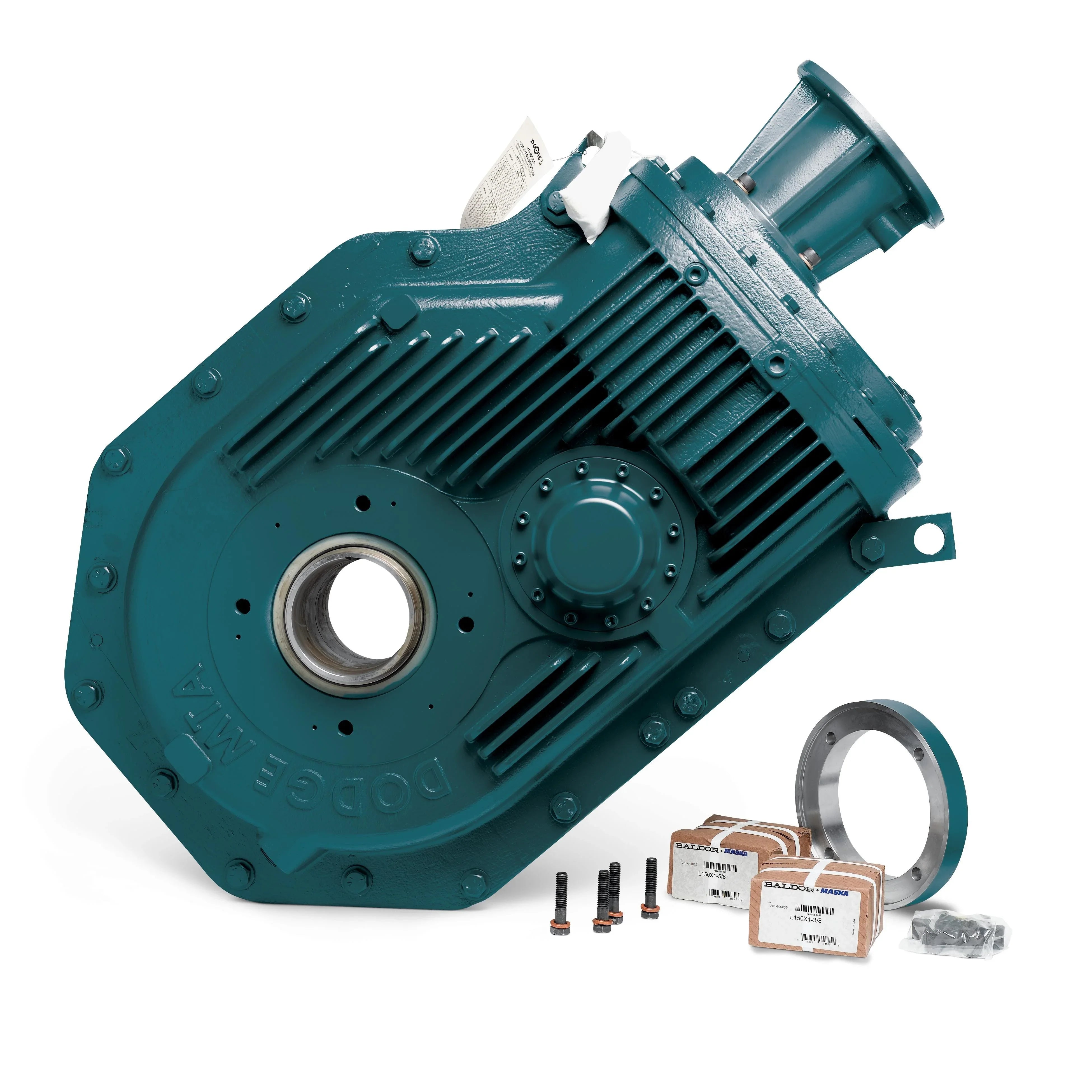

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
MTA SIZE 8407, 79:1, 320 C-FACE - Dodge
MTA SIZE 8407, 79:1, 320 C-FACE
Technical Specifications
| AGMA Size | 407 |
| Bore Length Output | 12.8100 |
| Bore Length Output (Unit) | INCH |
| Case Size | 8 |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Input Shaft Diameter | 1.4370 |
| Input Shaft Diameter (Unit) | INCH |
| Maximum Speed Input | 1800 |
| Maximum Speed Input (Unit) | RPM |
| Motor Compatibility | NEMA Motor, 320TC Frame |
| Motor Connection | 3-Piece Coupled |
| Motor Standard | NEMA |
| Output Orientation | Right-Angle |
| Output Style | Hollow Bore,Screw Conveyor |
| Reduction Type | Triple Stage |
| Seal Type | Two-Piece |
| Actual Ratio | 78.8 |
| Nominal Ratio | 79 |
