HTV48S
Regular price
$5,233.12 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

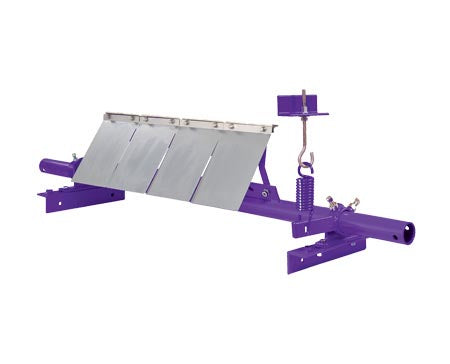

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Specifications
| Attribute | Value |
|---|---|
| Belt Width (in.) | 48 |
| Blade Configuration | Segmented |
| Blade Material | Tungsten Carbide V-Tips (for vulcanized belts only) |
| CEMA Rating | Class 3 |
| Horizontal Clearance Required (in.) | 7 |
| Maximum Belt Speed (FPM) | 1000 |
| Maximum Belt Speed (M/sec) | 5 |
| Maximum Conveyor Span (in.) | 86 |
| Pole Diameter (in.) | 2 3/8 |
| Pole Length (in.) | 96 |
| Temperature Range (C) | Up to 204° with spikes up to 232° |
| Temperature Range (F) | Up to 400° with spikes up to 450° |
| Tensioner | J-Bolt Spring Tensioner |
| Usable Blade Wear Length (in.) | 3/8 |
| Vertical Clearance Required (in.) | 15 |
| Weight (lbs) | 120.0 |
| Cleaner Material | Mild Steel Powdercoat |
| Suspension Arm Size | S |
| Blades Required | 5 |
