426533 - Dodge - FB6018X1-1/4 CHAIN FLG 5/16 KW
Regular price
$72.13 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

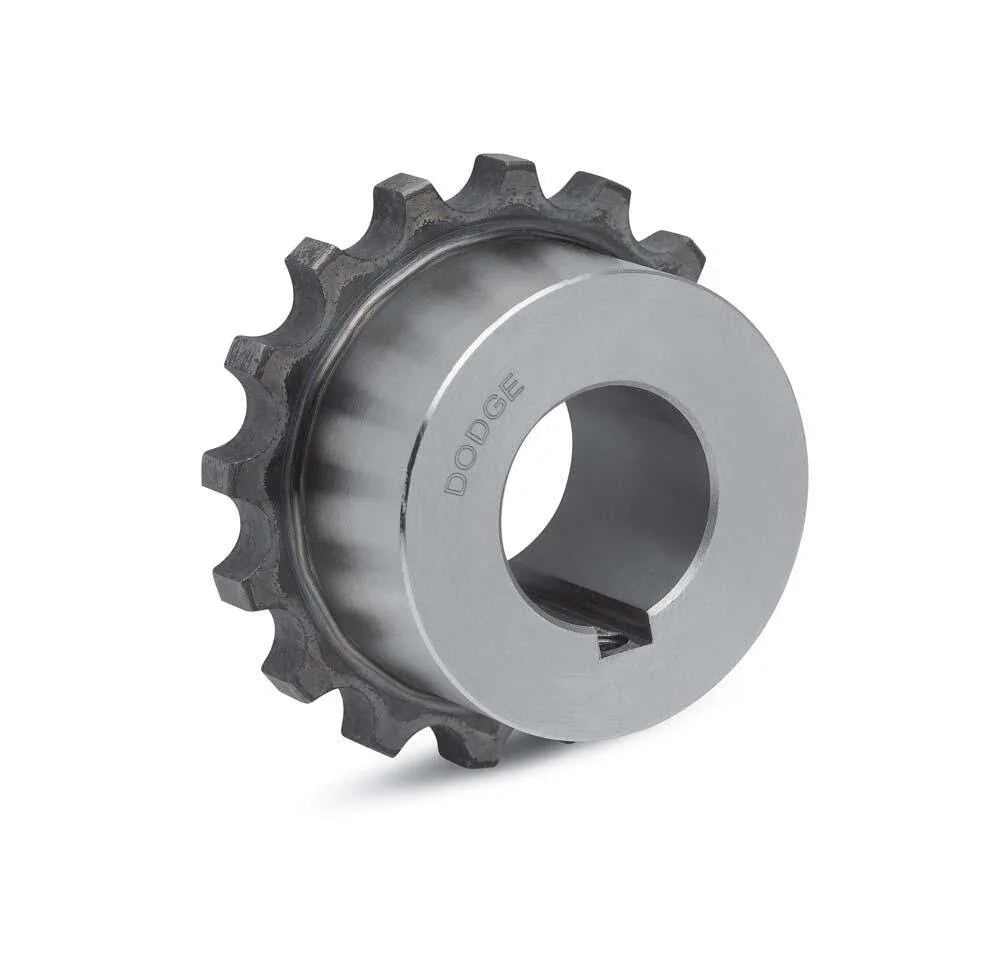

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
FB6018X1-1/4 CHAIN FLG 5/16 KW
| Specifications | |
|---|---|
| Angular Misalignment | 2° |
| Axial Misalignment | 0.3 in |
| Bore Diameter (Actual) | 1.25 in |
| Bore Fit | Clearance |
| Bore Length | 1.88 in |
| Bore Tolerance Standard | AGMA 9002 |
| Coupling Component | Flange |
| Coupling Size | 6018 |
| Coupling Style | Chain |
| Coupling Type | Metallic |
| Flange Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 RPM |
| Maximum Speed Without Cover | 675 RPM |
| Maximum Temperature Rating | 225°F |
| Minimum Temperature Rating | -30°F |
| Parallel Misalignment | 0.015 in |
| Shaft Attachment | Bored To Size |
