068108 - Dodge - F4B-VSC-107-NL MOD
Regular price
$553.96 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

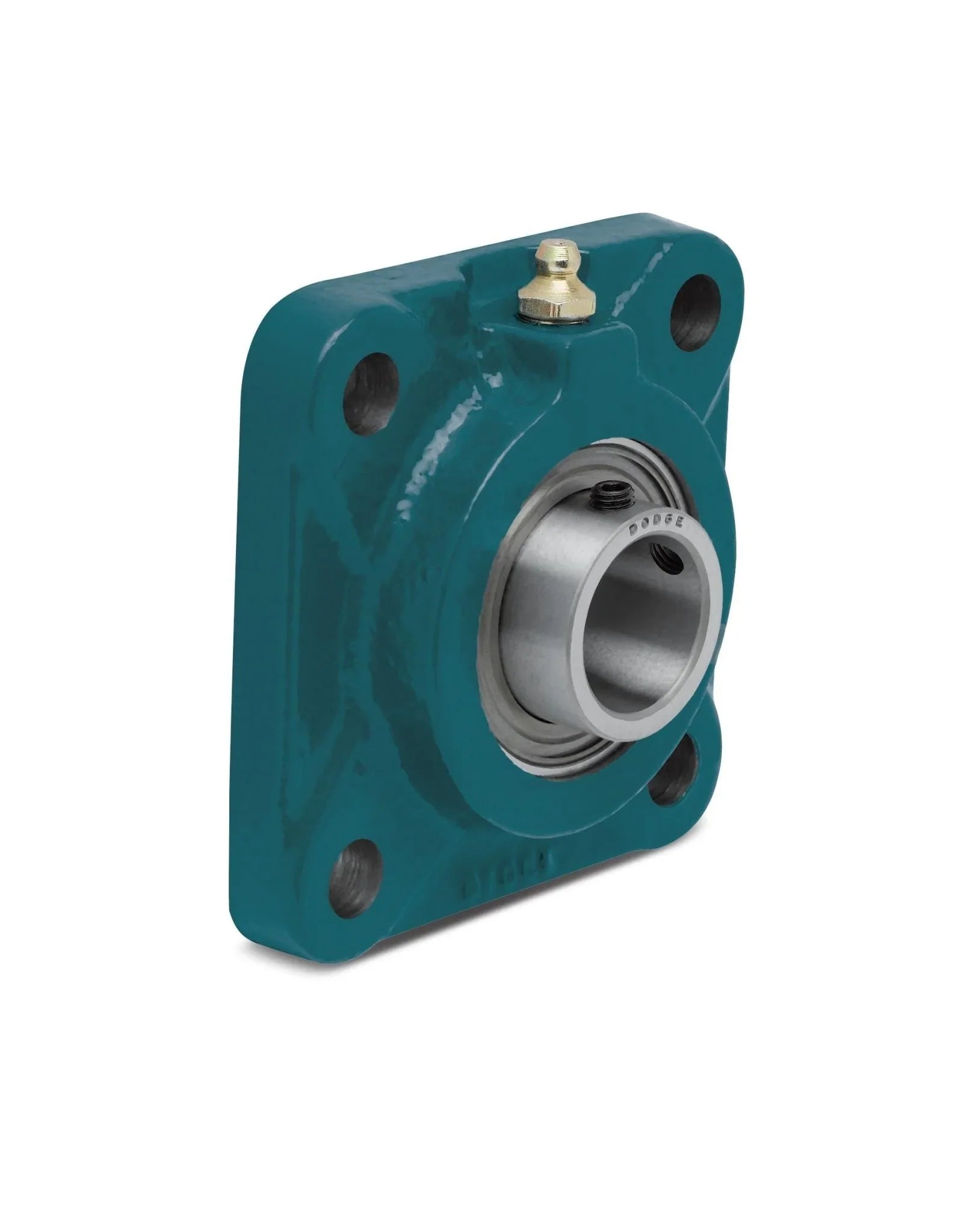

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
F4B-VSC-107-NL MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5 in |
| Bolt to Bolt (Max) | 3.63 in |
| Bolt to Bolt (Min) | 3.63 in |
| Bore Length | 1.71 in |
| Dynamic Load Capacity | 5759 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | No |
| Grease Name | Mobilith SHC 460 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 1.4375 in |
| Standoff Housing | No |
| Static Load Capacity | 3461 lbf |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
