268857 - Dodge - DCR80 20.93:1 RED ASSY
Regular price
$24,095.76 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

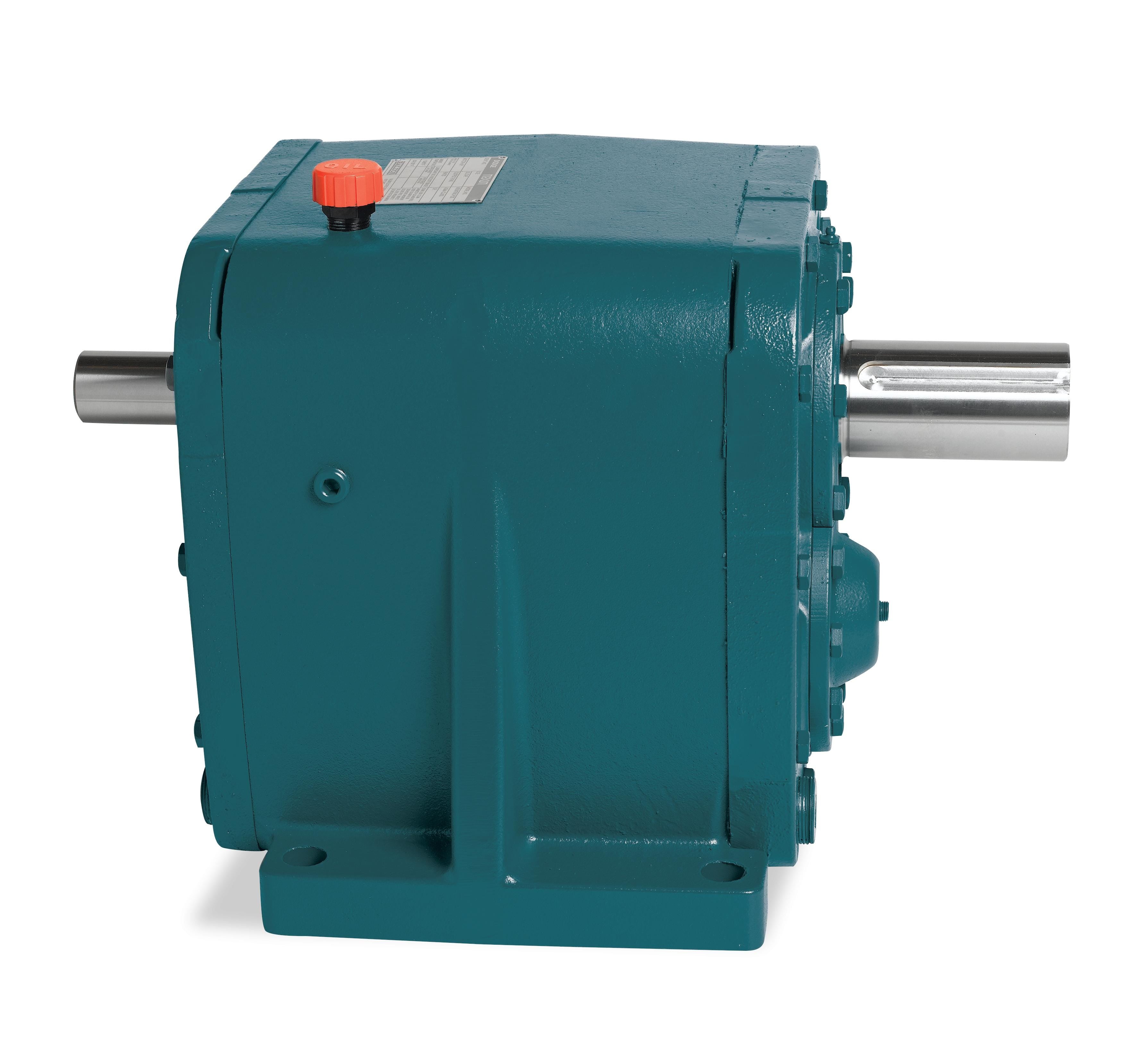

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
268857 - Dodge - DCR80 20.93:1 RED ASSY
DCR80 20.93:1 RED ASSY (INCH)
Technical Specifications
| Case Size | 80 |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 134.0000 |
| Horsepower Rating Input (Unit) | HORSEPOWER |
| Housing Material | Ductile Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 2.2500 |
| Input Shaft Diameter (Unit) | INCH |
| Maximum Speed | 2643 |
| Maximum Speed (Unit) | RPM |
| Output Orientation | In-Line |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 3.5000 |
| Output Shaft Diameter (Unit) | INCH |
| Reduction Type | Double Stage |
| Seal Type | Two-Piece |
| Actual Ratio | 20.67 |
| Nominal Ratio | 20.93 |
