099142 - Dodge - FB6018 X 1 CHAIN CPLG FLG
Regular price
$72.13 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

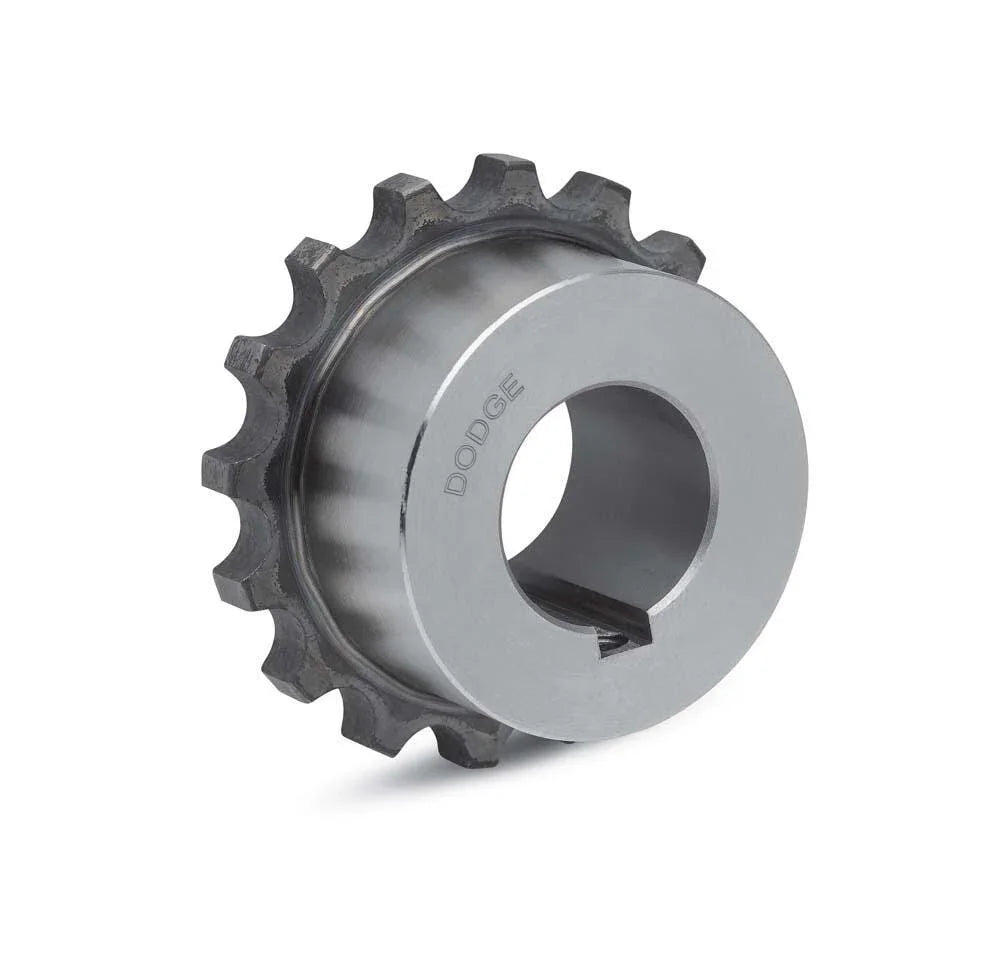

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
099142 - Dodge - FB6018 X 1 CHAIN CPLG FLG
FB6018 X 1 CHAIN CPLG FLG
Technical Specifications
| Angular Misalignment | 2.0000 |
| Angular Misalignment (Unit) | DEGREE |
| Axial Misalignment | 0.3000 |
| Axial Misalignment (Unit) | INCH |
| Bore Diameter (Actual) | 1.0000 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Fit | Clearance |
| Bore Length | 1.8800 |
| Bore Length (Unit) | INCH |
| Bore Tolerance Standard | AGMA 9002 |
| Coupling Component | Flange |
| Coupling Size | 6018 |
| Coupling Style | Chain |
| Coupling Type | Metallic |
| Flange Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Maximum Speed Without Cover | 675.0000 |
| Maximum Speed Without Cover (Unit) | RPM |
| Maximum Temperature Rating | 225.0000 |
| Maximum Temperature Rating (Unit) | FAHRENHEIT |
| Minimum Temperature Rating | -30.0000 |
| Minimum Temperature Rating (Unit) | FAHRENHEIT |
| Parallel Misalignment | 0.0150 |
| Parallel Misalignment (Unit) | INCH |
| Shaft Attachment | Bored To Size |
