099133 - Dodge - FB5012 X 7/8 CHAIN CPLG FLG
Regular price
$54.21 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

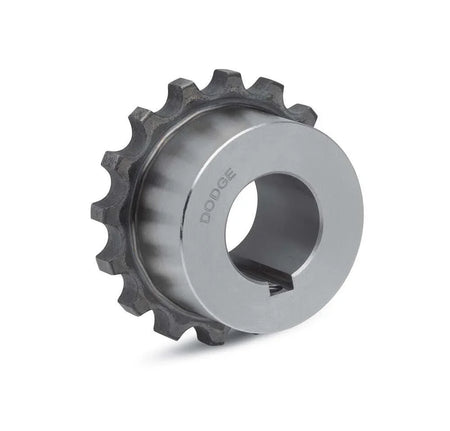

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
FB5012 X 7/8 CHAIN CPLG FLG
| Specifications | |
|---|---|
| Angular Misalignment | 2° |
| ATEX Certificate | No |
| Axial Misalignment | 0.3 in |
| Bore Diameter (Actual) | 0.875 in |
| Bore Fit | Clearance |
| Bore Length | 1.25 in |
| Bore Tolerance Standard | AGMA 9002 |
| Coupling Component | Flange |
| Coupling Size | 5012 |
| Coupling Style | Chain |
| Coupling Type | Metallic |
| Flange Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4000 RPM |
| Maximum Speed Without Cover | 800 RPM |
| Maximum Temperature Rating | 225°F |
| Minimum Temperature Rating | -30°F |
| Parallel Misalignment | 0.015 in |
| Shaft Attachment | Bored To Size |
| Shaft Spacing | Close Coupled |
