022777 - Dodge - 9SC50-11 FLANGE
Regular price
$182.82 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

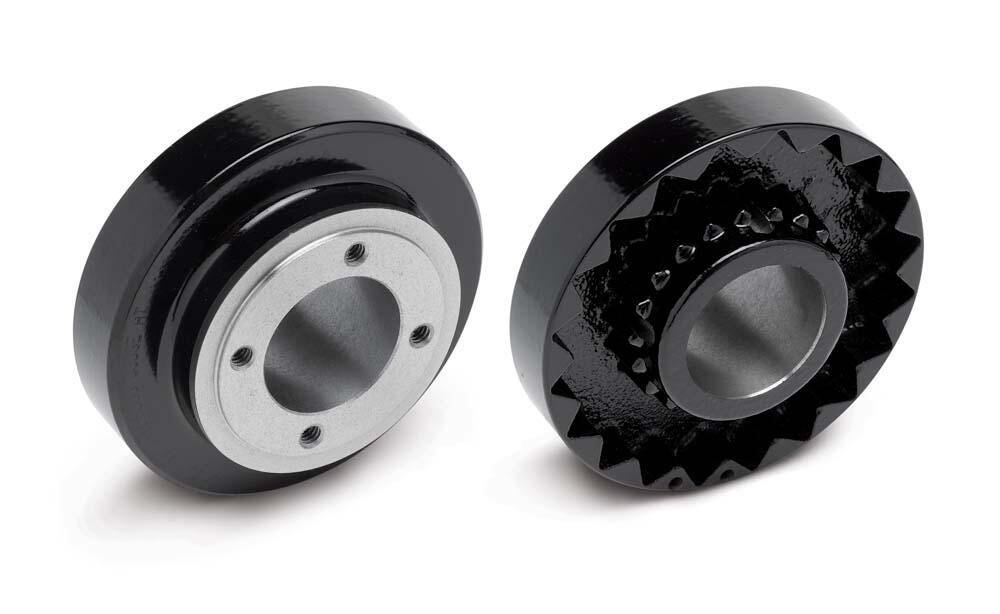

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
022777 - Dodge - 9SC50-11 FLANGE
9SC50-11 SPACER FLG
Technical Specifications
| Angular Misalignment | 1.0000 |
| Angular Misalignment (Unit) | DEGREE |
| Axial Misalignment | 0.2500 |
| Axial Misalignment (Unit) | INCH |
| Coupling Component | Spacer Flange |
| Coupling Size | 9-11 |
| Coupling Style | Sleeve |
| Coupling Type | Elastomeric |
| Distance Between Shaft Ends (Maximum) | 5.0000 |
| Distance Between Shaft Ends (Maximum) (Unit) | INCH |
| Flange Material | Cast Iron |
| Horsepower Per 100 Rat | 28.6000 |
| Horsepower Per 100 Rat (Unit) | HORSEPOWER |
| Lubrication | None |
| Maximum Speed | 3600 |
| Maximum Speed (Unit) | RPM |
| Number of Bolts | 4 |
| Parallel Misalignment | 0.0320 |
| Parallel Misalignment (Unit) | INCH |
| Rated Torque | 18000.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Spacing | Spacer |
| Tightening Torque | 900 |
| Tightening Torque (Unit) | INCH_POUND |
