022726 - Dodge - D-FLEX 6J X 1 1/8 FLANGE
Regular price
$33.10 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

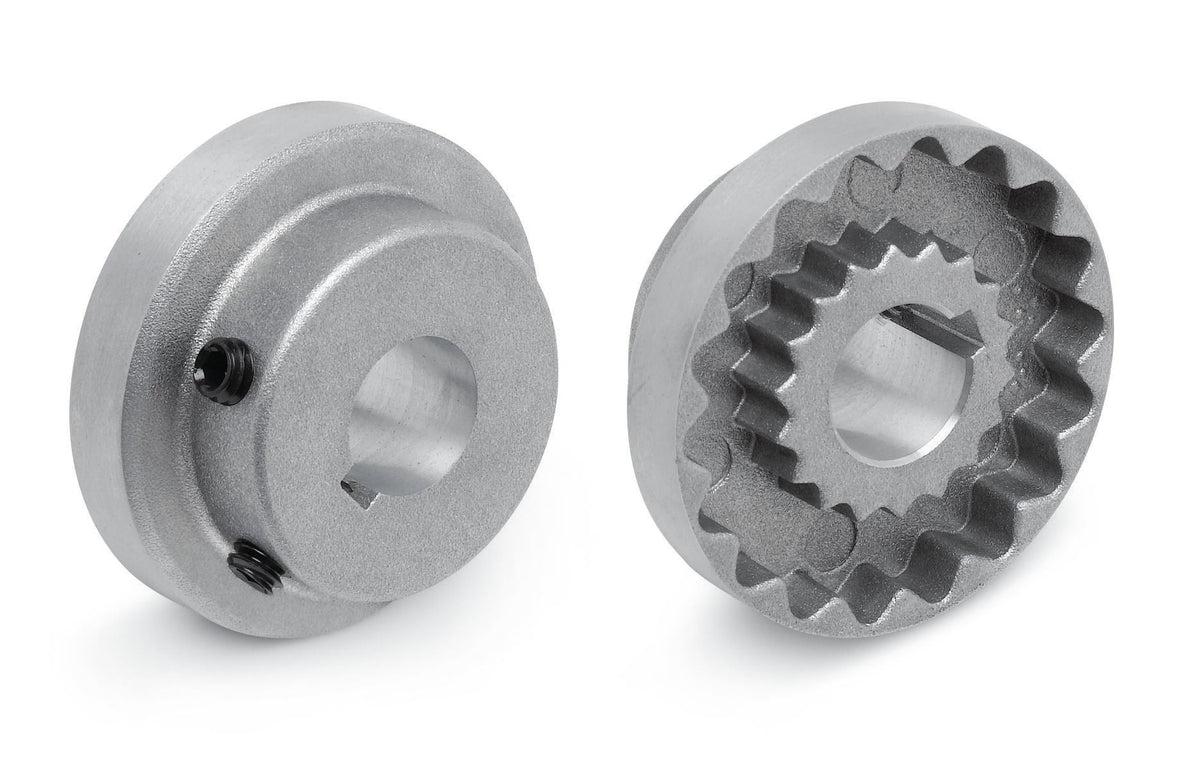

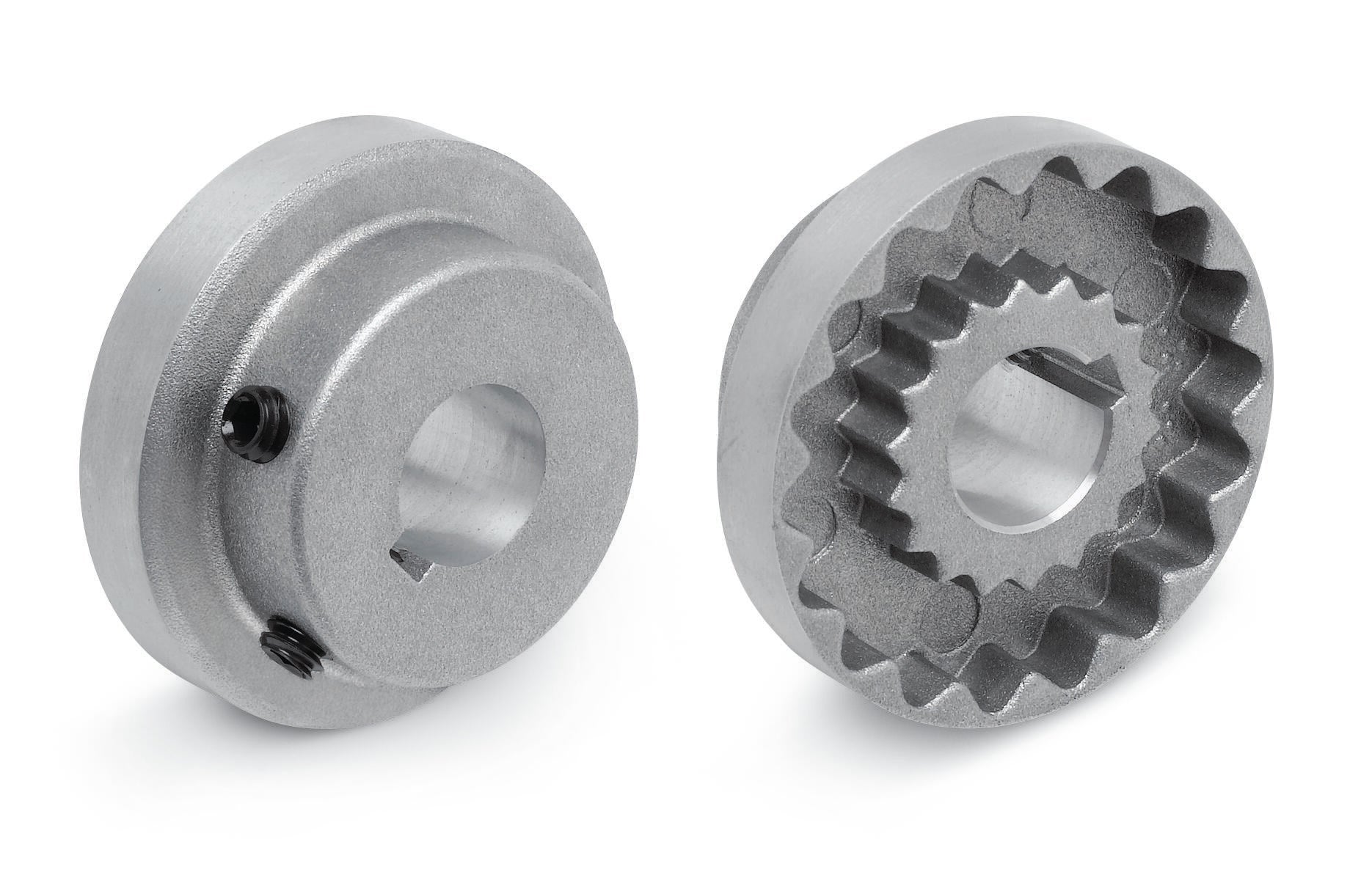

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
D-FLEX 6J X 1 1/8 FLANGE
| Specifications | |
|---|---|
| Angular Misalignment | 1° |
| Axial Misalignment | 0.12 in |
| Bore Diameter (Actual) | 1.125 in |
| Bore Fit | Clearance |
| Bore Length | 1.22 in |
| Bore Tolerance Standard | AGMA 9002 |
| Coupling Component | Flange |
| Coupling Size | 6 |
| Coupling Style | Sleeve |
| Coupling Type | Elastomeric |
| Flange Material | Aluminum |
| Horsepower Per 100 Rat | 2.9 HP |
| Maximum Speed | 6000 RPM |
| Parallel Misalignment | 0.015 in |
| Rated Torque | 1800 in-lb |
| Shaft Attachment | Bored To Size |
| Shaft Spacing | Close Coupled |
