010604 - Dodge - PX80 TAPER-LOCK FLG ASSY 2012
Regular price
$256.74 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

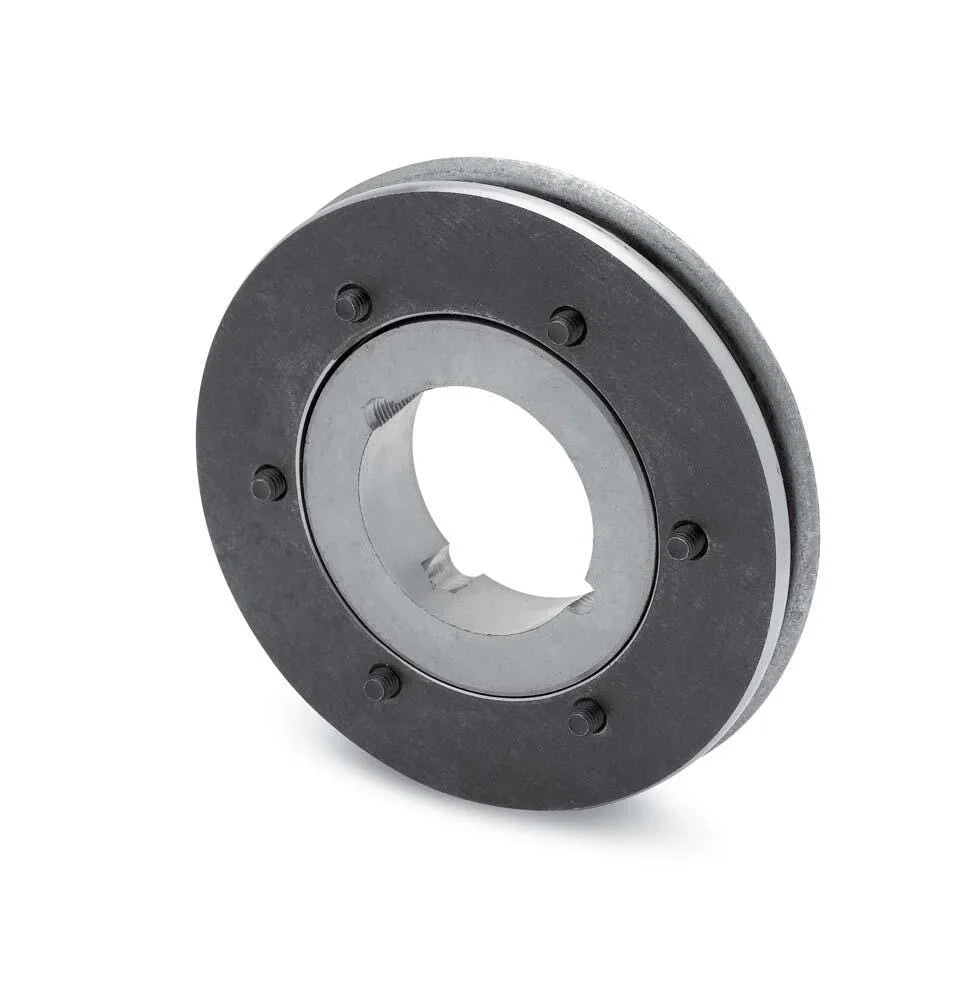

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
010604 - Dodge - PX80 TAPER-LOCK FLG ASSY 2012
PX80 TAPER-LOCK FLG ASSY 2012
Technical Specifications
| Angular Misalignment | 4.0000 |
| Angular Misalignment (Unit) | DEGREE |
| Axial Misalignment | 0.3125 |
| Axial Misalignment (Unit) | INCH |
| Bore Diameter (Maximum) | 2.1250 |
| Bore Diameter (Maximum) (Unit) | INCH |
| Bore Diameter (Minimum) | 0.5000 |
| Bore Diameter (Minimum) (Unit) | INCH |
| Bore Length | 1.2500 |
| Bore Length (Unit) | INCH |
| Bushing Size | 2012 |
| Bushing Type | Taper-Lock |
| Coupling Component | Flange |
| Coupling Size | PX80 |
| Coupling Style | Tire |
| Coupling Type | Elastomeric |
| Flange Material | Sintered Steel |
| Horsepower Per 100 Rat | 5.7200 |
| Horsepower Per 100 Rat (Unit) | HORSEPOWER |
| Lubrication | None |
| Maximum Speed | 3100 |
| Maximum Speed (Unit) | RPM |
| Maximum Temperature Rating | 180.0000 |
| Maximum Temperature Rating (Unit) | FAHRENHEIT |
| Minimum Temperature Rating | -45.0000 |
| Minimum Temperature Rating (Unit) | FAHRENHEIT |
| Parallel Misalignment | 0.1250 |
| Parallel Misalignment (Unit) | INCH |
| Rated Torque | 3605.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Bushed |
| Shaft Spacing | Close Coupled |
