008060 - Dodge - 3-1/4F POLY-DISC FLANGE
Regular price
$79.92 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

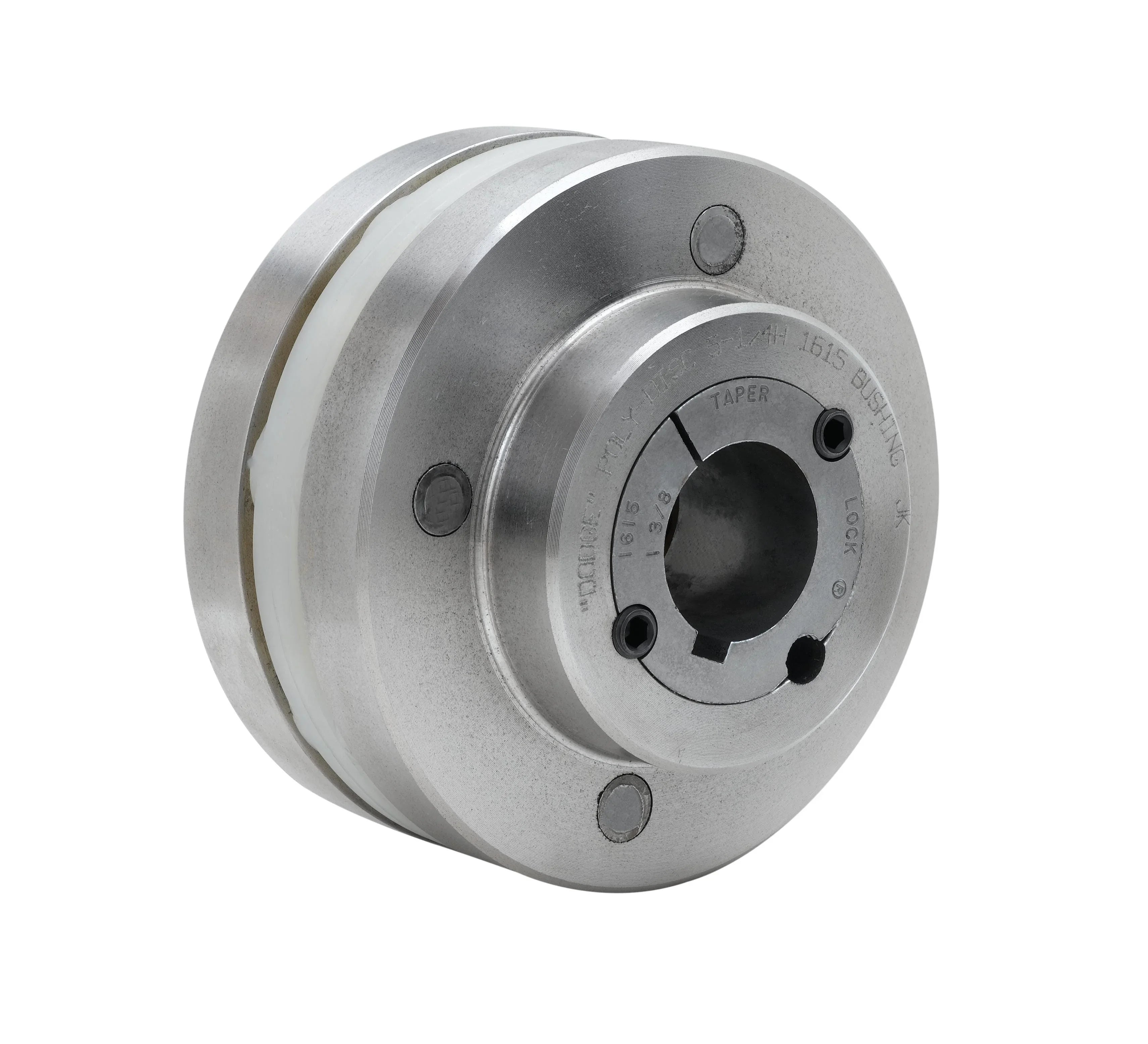

3-1/4F POLY-DISC FLANGE
| Specifications | |
|---|---|
| Angular Misalignment | 2° |
| ATEX Certificate | No |
| Bore Diameter (Maximum) | 1.25 in |
| Bore Diameter (Minimum) | 0.5 in |
| Bore Length | 1.125 in |
| Bushing Size | 1210 |
| Bushing Type | Taper-Lock |
| Coupling Component | Flange |
| Coupling Size | 3-1/4 |
| Coupling Style | Pin |
| Coupling Type | Elastomeric |
| Flange Material | Cast Iron |
| Horsepower Per 100 Rat | 0.57 HP |
| Maximum Speed | 3600 RPM |
| Maximum Temperature Rating | 170°F |
| Minimum Temperature Rating | -90°F |
| Parallel Misalignment | 0.0313 in |
| Rated Torque | 360 in-lb |
| Shaft Attachment | Bushed |
| Shaft Spacing | Close Coupled |
