008043 - Dodge - 5-1/4H POLY-DISC FLANGE
Regular price
$121.36 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

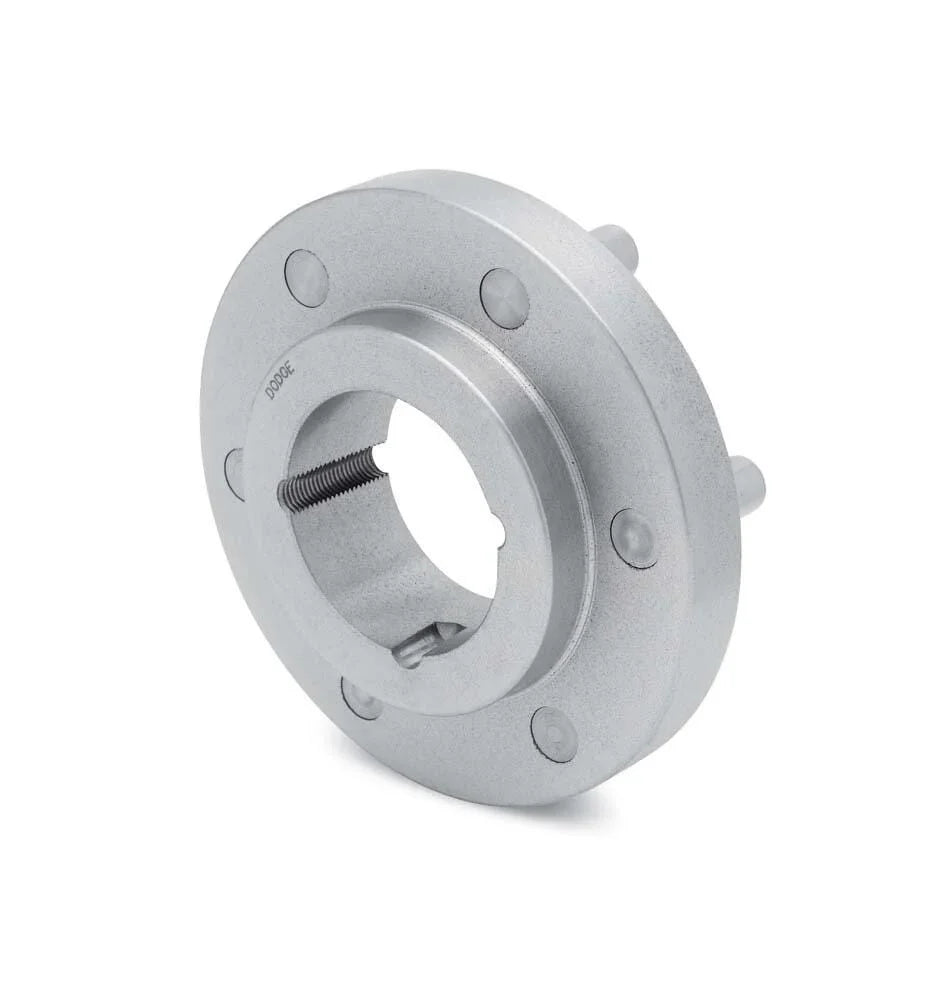

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
008043 - Dodge - 5-1/4H POLY-DISC FLANGE
5-1/4H POLY-DISC FLANGE
Technical Specifications
| Angular Misalignment | 2.0000 |
| Angular Misalignment (Unit) | DEGREE |
| Bore Diameter (Maximum) | 1.6875 |
| Bore Diameter (Maximum) (Unit) | INCH |
| Bore Diameter (Minimum) | 0.5000 |
| Bore Diameter (Minimum) (Unit) | INCH |
| Bore Length | 1.5000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 1615 |
| Bushing Type | Taper-Lock |
| Coupling Component | Flange |
| Coupling Size | 5-1/4 |
| Coupling Style | Pin |
| Coupling Type | Elastomeric |
| Flange Material | Cast Iron |
| Horsepower Per 100 Rat | 2.2900 |
| Horsepower Per 100 Rat (Unit) | HORSEPOWER |
| Lubrication | None |
| Maximum Speed | 3600 |
| Maximum Speed (Unit) | RPM |
| Maximum Temperature Rating | 170.0000 |
| Maximum Temperature Rating (Unit) | FAHRENHEIT |
| Minimum Temperature Rating | -90.0000 |
| Minimum Temperature Rating (Unit) | FAHRENHEIT |
| Parallel Misalignment | 0.0313 |
| Parallel Misalignment (Unit) | INCH |
| Rated Torque | 1440.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Bushed |
| Shaft Spacing | Close Coupled |
