396203 - Dodge - D-FLEX 4J X 24MM FLANGE
Regular price
$14.97 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

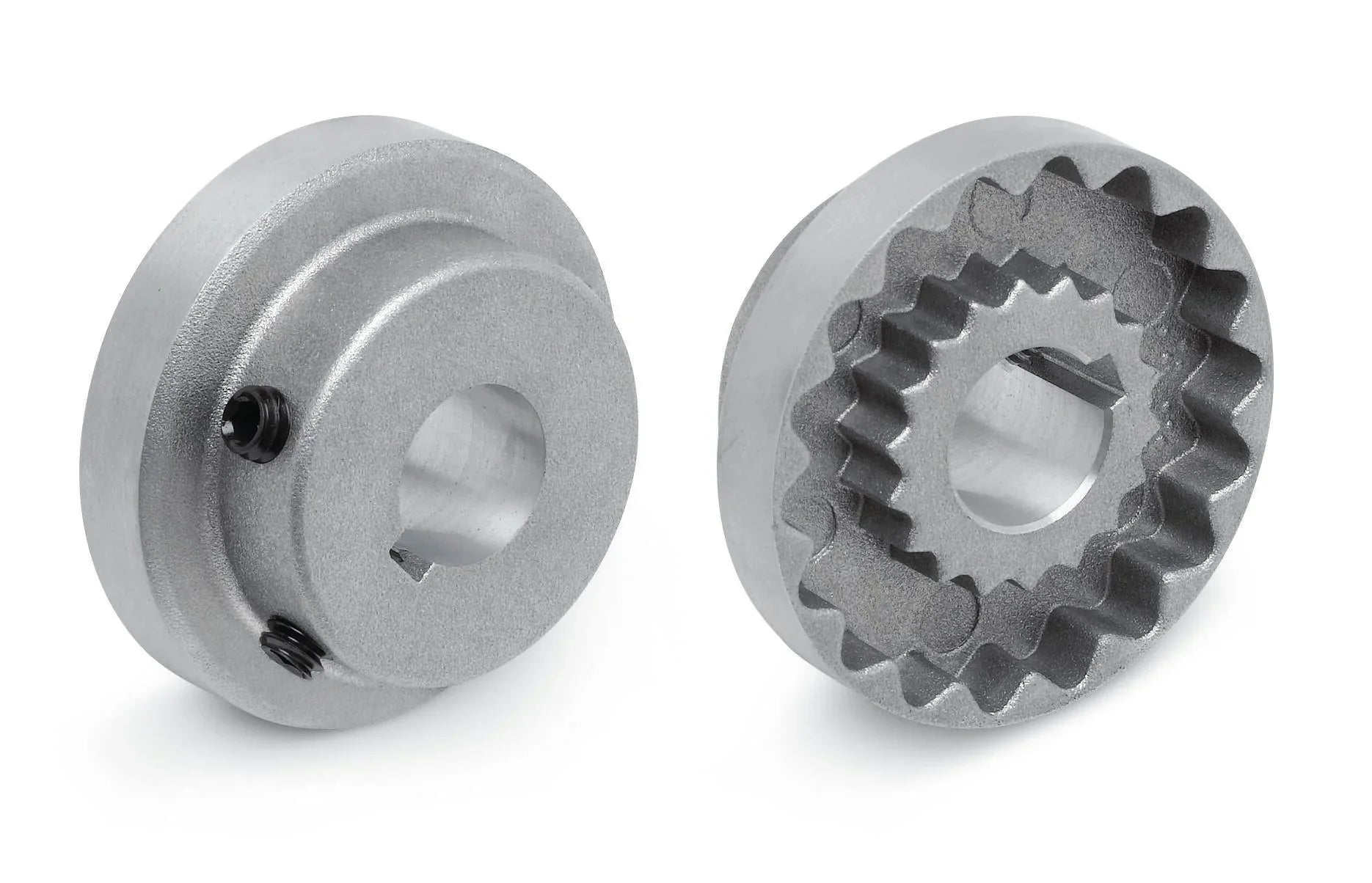

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
396203 - Dodge - D-FLEX 4J X 24MM FLANGE
D-FLEX 4J X 24MM FLANGE
Technical Specifications
| Angular Misalignment | 1.0000 |
| Angular Misalignment (Unit) | DEGREE |
| Axial Misalignment | 0.0600 |
| Axial Misalignment (Unit) | INCH |
| Bore Diameter (Actual) | 24.0000 |
| Bore Diameter (Actual) (Unit) | MILLIMETER |
| Bore Fit | Clearance |
| Bore Length | 0.8750 |
| Bore Length (Unit) | INCH |
| Bore Tolerance Standard | ISO R775 |
| Coupling Component | Flange |
| Coupling Size | 4 |
| Coupling Style | Sleeve |
| Coupling Type | Elastomeric |
| Flange Material | Aluminum |
| Horsepower Per 100 Rat | 0.1900 |
| Horsepower Per 100 Rat (Unit) | HORSEPOWER |
| ISO Fit Standard | F7 |
| Lubrication | None |
| Maximum Speed | 7600 |
| Maximum Speed (Unit) | RPM |
| Parallel Misalignment | 0.0100 |
| Parallel Misalignment (Unit) | INCH |
| Rated Torque | 120.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Bored To Size |
