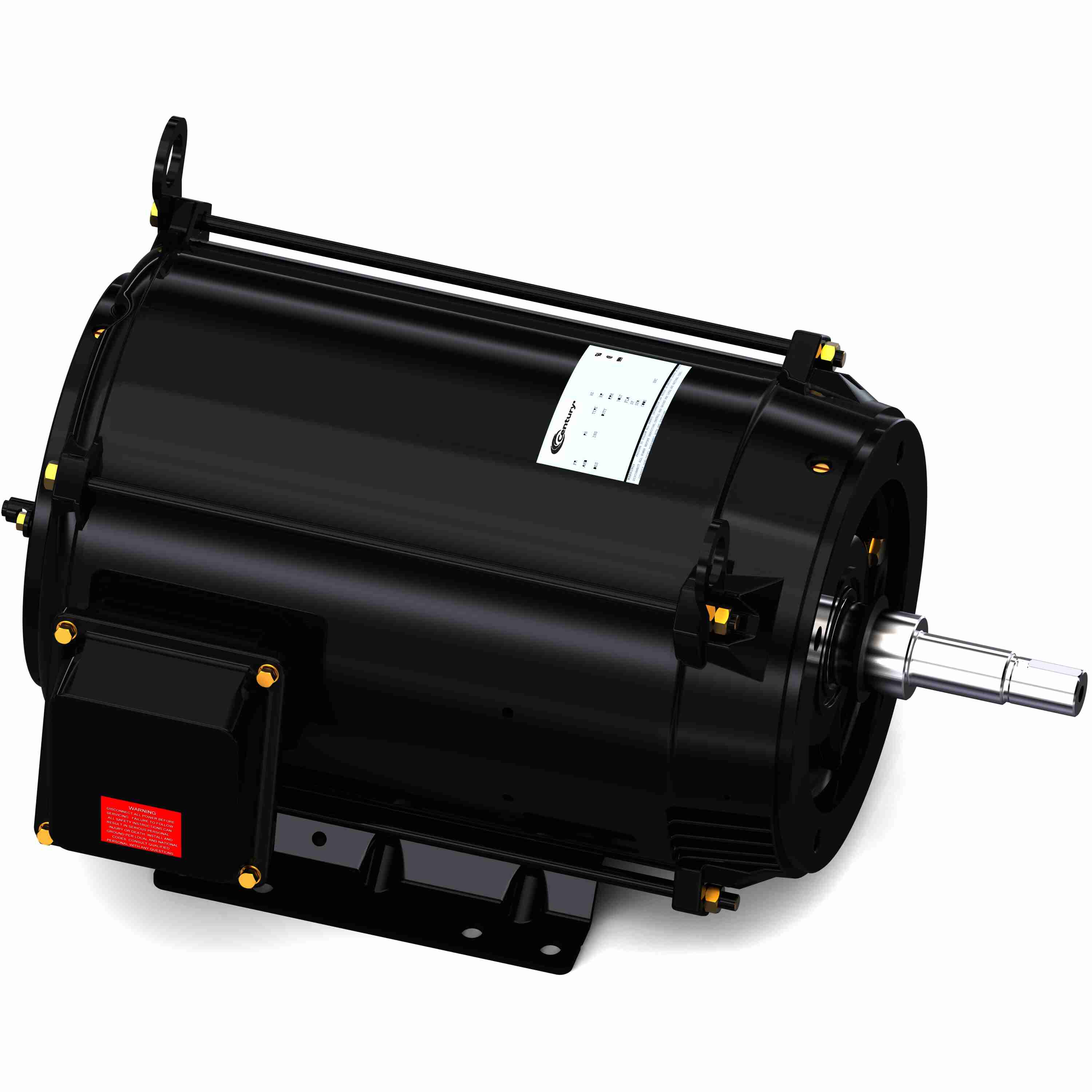

Marathon Electric Pool Pump Motor, 10 HP, 3 Ph, 60 Hz, 230/460 V, 3600 & 3600 RPM, 213JMZ Frame, DP
Regular price
$2,589.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Pool Pump Motor, 10 HP, 3 Ph, 60 Hz, 230/460 V, 3600 & 3600 RPM, 213JMZ Frame, DP
Features
- Exterior Paint Color = Black Enamel
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2052
- Inverter Duty 10:1 Variable Torque
- 1.0SF for inverter power and 1.15 Service Factor on sinewave power
- Ball Bearings
- DE Weephole radial pluged (1), Grease Pipe Plugs Both Ends
- UL® Recognized & CSA certified and CE® Mark
Specifications
| Performance & Electrical | |
| Power | 10 HP |
| Power (dual rating) | 10 HP |
| Power | 7.5 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 3520 RPM |
| Speed (dual) | 3520 RPM |
| Full-load current | 24.2/12.1 A |
| Current (dual) | 24.2/12.1 A |
| Nominal efficiency | 89.5% |
| Power factor | 86% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Across The Line |
| Main winding resistance | 1.52 Ω |
| Frame & Mechanical | |
| Frame | 213JMZ |
| Frame size | 213 |
| Frame suffix | JMZ |
| Frame material | Rolled Steel |
| Enclosure | Drip Proof |
| IP rating | IP22 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.000 in |
| Shaft type | JM |
| Drive-end bearing | 6309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308 |
| Outline drawing | SS621172-100 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 32.00 × 24.00 × 23.00 in |
| Weight | 85.00 lb |
| Identification | |
| Manufacturer part / model | CEQK1000V1 |
| Catalog number | CEQK1000V1 |
| UPC | 786674077233 |
| Country of origin | Mexico |
| Substitute part | CEQK1000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
