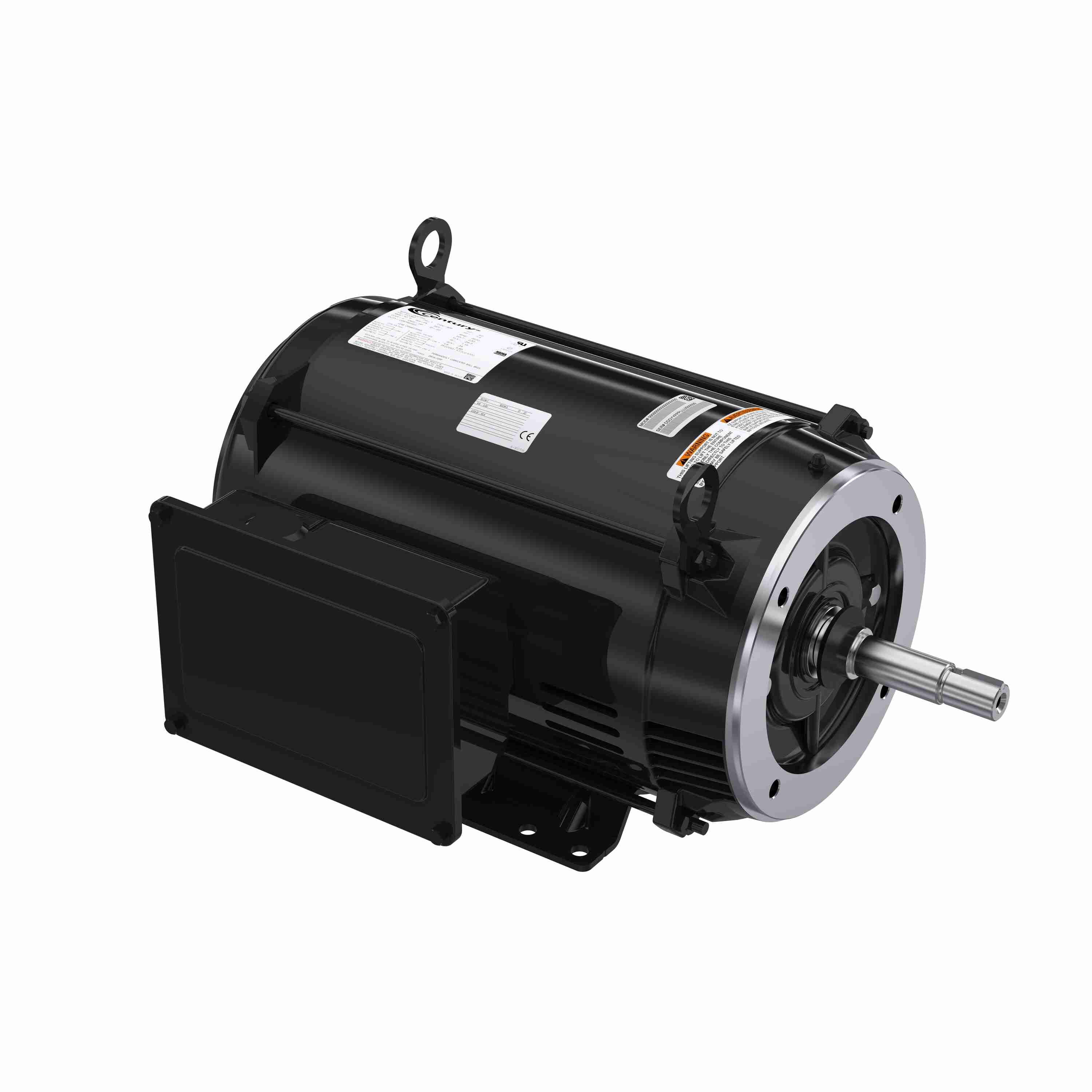

Marathon Electric Pool Pump Motor, 7 1/2 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 213JMZ Frame, DP
Regular price
$4,249.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Pool Pump Motor, 7 1/2 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 213JMZ Frame, DP
Features
- Well-suited for Commercial and Large Residential Pools
- Premium Efficient Designs
- Special JMZ Shaft Configuration
- 40°C Ambient
- Double Shielded Ball Bearing
- Rigid Base
- 303 Stainless Steel Shaft Extension
- Open Dripproof
- Replaces Pentair Motor #357066S
- Replaces Pentair Pump Model #EQ750
Specifications
| Performance & Electrical | |
| Power | 7.50 HP |
| Power (dual rating) | 7 1/2 HP |
| Power | 5.6 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 3520 RPM |
| Speed (dual) | 3520 RPM |
| Current (dual) | 29.5 A |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| Duty | Continuous |
| Electrical type | Capacitor Start Capacitor Run |
| Starting method | Across The Line |
| Frame & Mechanical | |
| Frame | 213JMZ |
| Frame size | 213 |
| Frame suffix | JMZ |
| Frame material | Rolled Steel |
| Frame length | 11.15 in |
| Enclosure | Drip Proof |
| Insulation class | F |
| Mounting | Special/Non-Standard |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.000 in |
| Shaft extension | 4.25 in |
| Shaft type | 7/8 Keyed |
| C dimension | 19.92 in |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE9048MF-CY |
| Outline drawing | OLCEQ750 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.50 × 16.00 × 11.50 in |
| Weight | 84.00 lb |
| Identification | |
| Manufacturer part / model | CEQ750 |
| Catalog number | CEQ750 |
| UPC | 786674071996 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.40.6040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
