117503 - Dodge - 8065 X 7-1/2-KW BUSHING
Regular price
$1,552.32 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

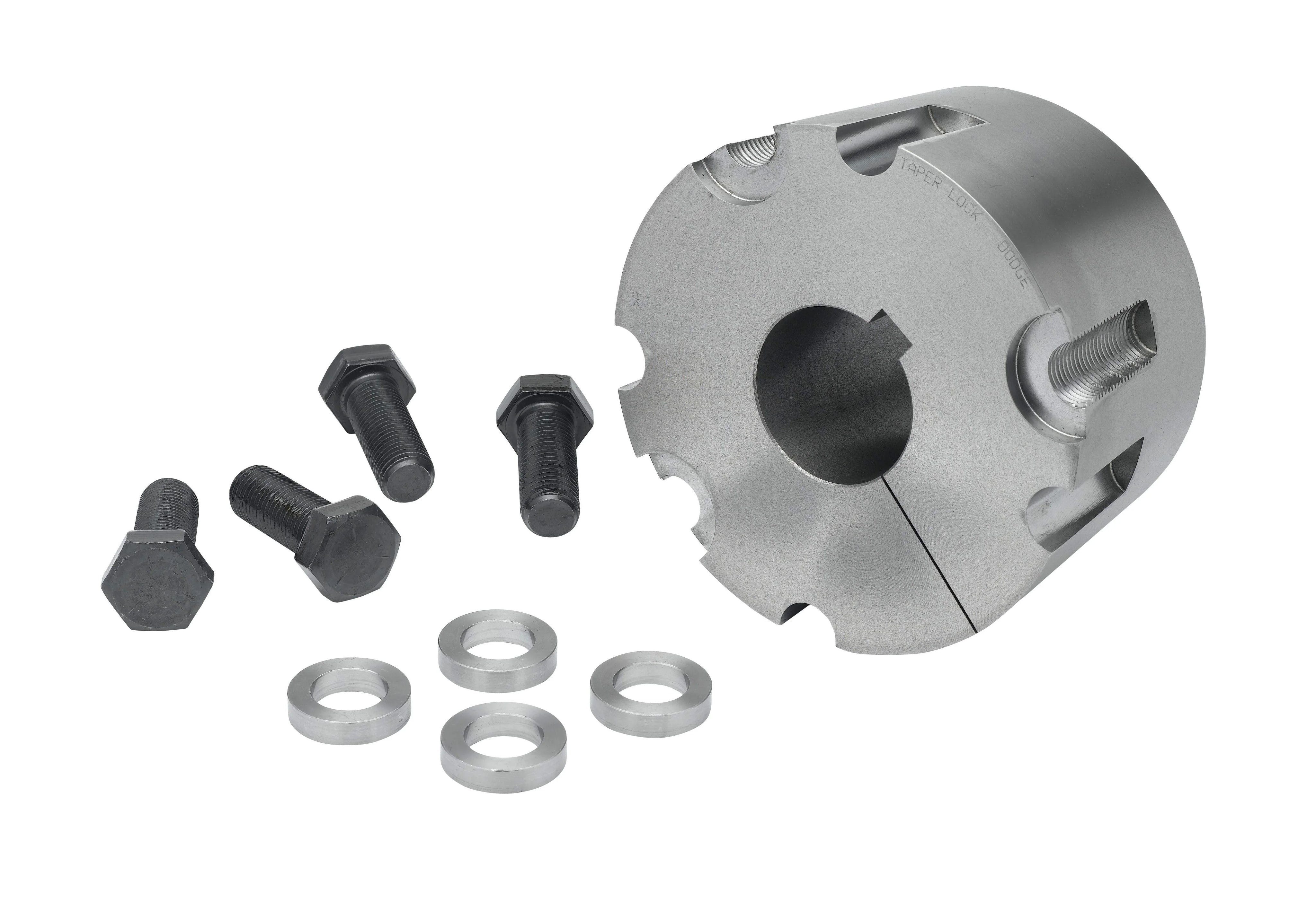

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
117503 - Dodge - 8065 X 7-1/2-KW BUSHING
8065 X 7-1/2-KW BUSHING
Technical Specifications
| Bore Diameter (Actual) | 7.5000 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 6.5000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 8065 |
| Bushing Type | Taper-Lock |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/taper_lock_tl/taper_lock_tl_bushings/tl_b_8065_kt.prj&varset={BORE=7-1/2},{PN=117503},{WT=90},{BK=1-3/4x3/4},{SK=1-3/4x3/4},{TC=456.000},{WTIS=7.820},{A=11.25},{B=6 1/2},{CI=17.5},{CS=15.5},{D=11},{FQ=4},{FS=1-1/4},{L=1.63},{M=4.38} |
| Installation Torque | 7820.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 1.75 X 1.5 |
| Material | Cast Iron, Class 30 |
| Number of Bolts | 4 |
| Rated Torque | 456000.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
