117490 - Dodge - 7060 X 4-15/16-KW BUSHING
Regular price
$1,292.03 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

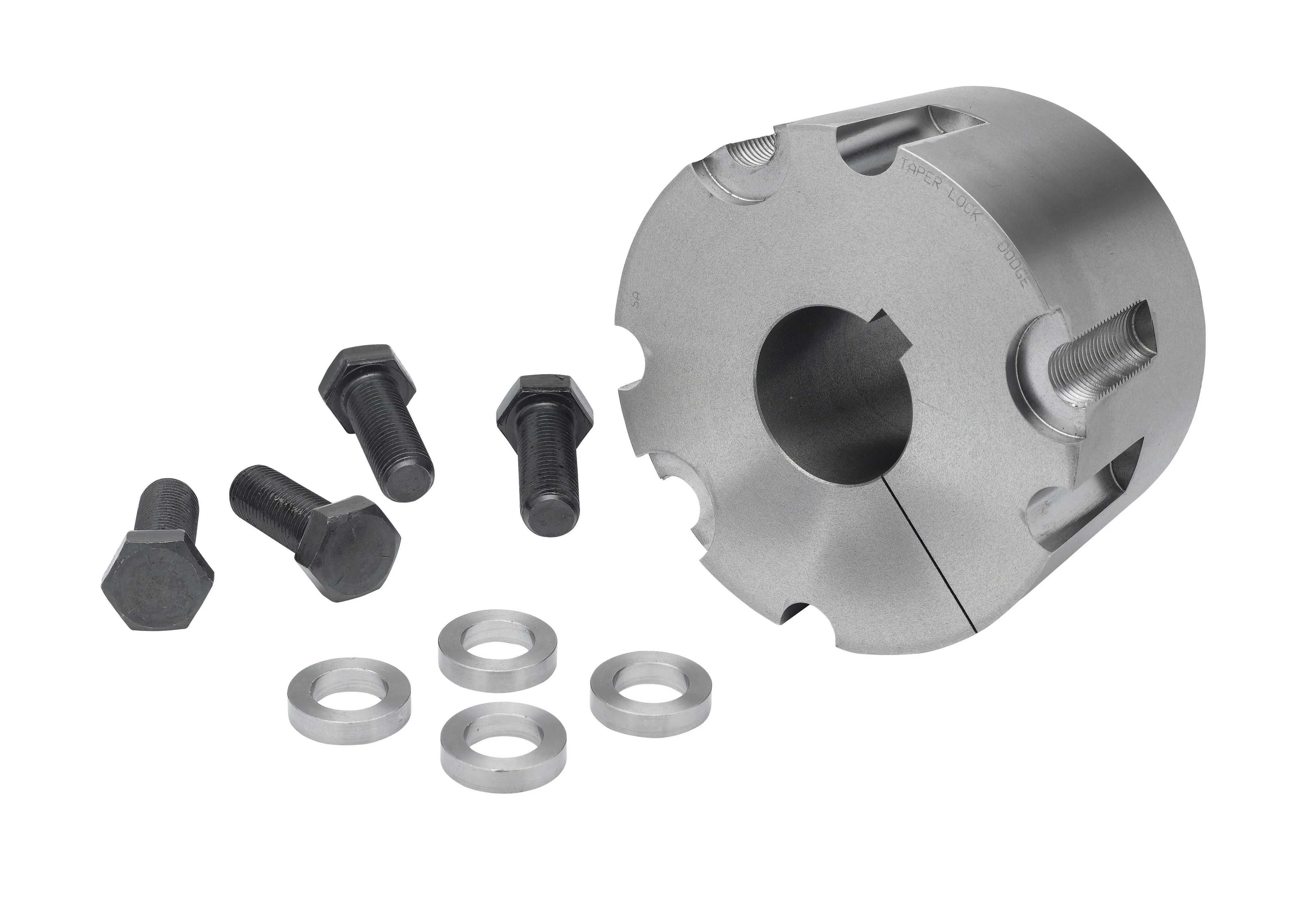

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
117490 - Dodge - 7060 X 4-15/16-KW BUSHING
7060 X 4-15/16-KW BUSHING
Technical Specifications
| Bore Diameter (Actual) | 4.9375 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 6.0000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 7060 |
| Bushing Type | Taper-Lock |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/taper_lock_tl/taper_lock_tl_bushings/tl_b_7060_kt.prj&varset={BORE=4-15/16},{PN=117490},{WT=87},{BK=1-1/4x5/8},{SK=1-1/4x5/8},{TC=416.000},{WTIS=7.820},{A=10.25},{B=6.0},{CI=17.0},{CS=14.8},{D=10},{FQ=4},{FS=1-1/4},{L=1.63},{M=4.38} |
| Installation Torque | 7820.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 1.25 X 1.25 |
| Material | Cast Iron, Class 30 |
| Number of Bolts | 4 |
| Rated Torque | 416000.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
