117453 - Dodge - 5050 X 3-5/8-KW BUSHING
Regular price
$385.73 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

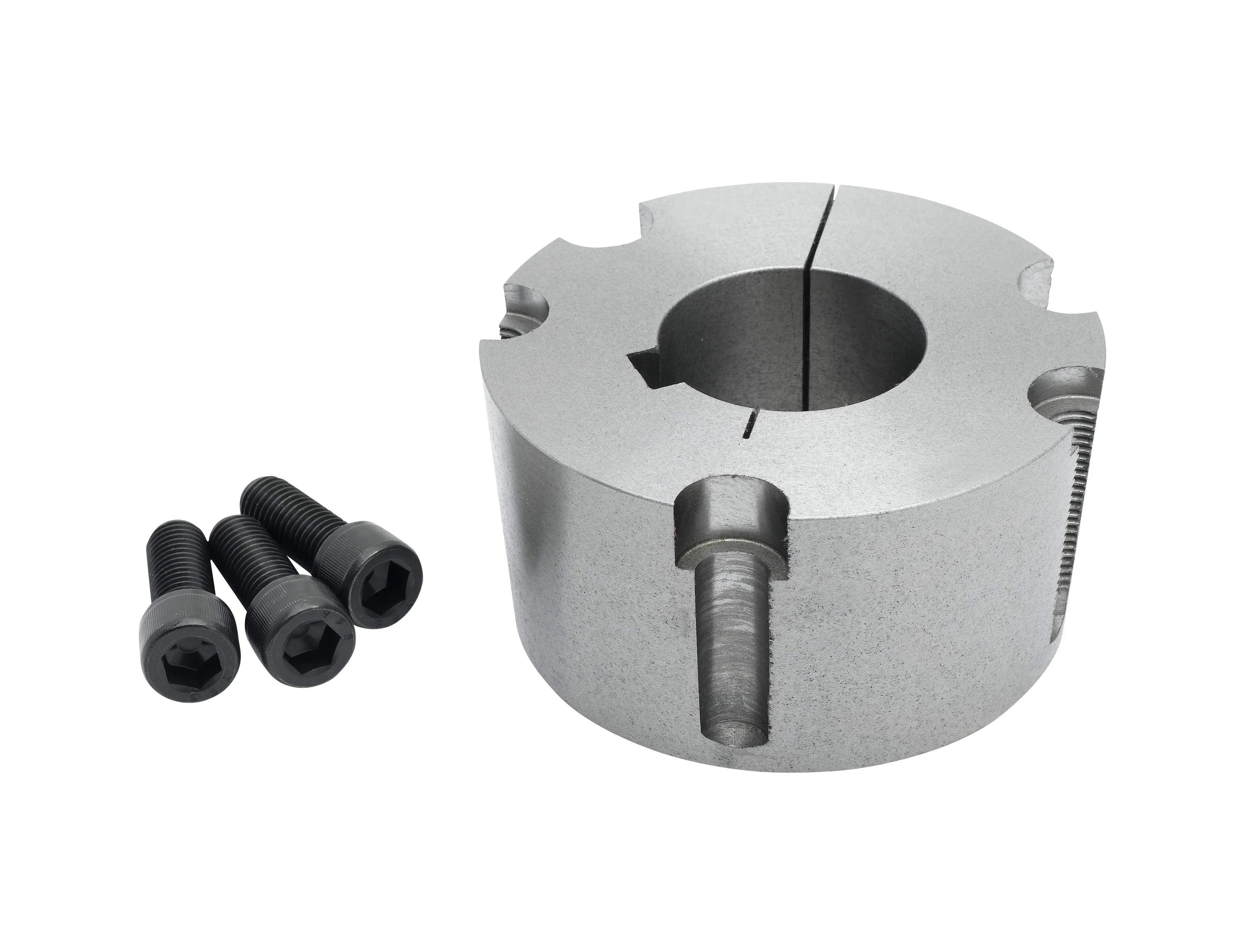

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
117453 - Dodge - 5050 X 3-5/8-KW BUSHING
5050 X 3-5/8-KW BUSHING
Technical Specifications
| Bore Diameter (Actual) | 3.6250 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 5.0000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 5050 |
| Bushing Type | Taper-Lock |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/taper_lock_tl/taper_lock_tl_bushings/tl_b_5050_kt.prj&varset={BORE=3-5/8},{PN=117453},{WT=31.1},{BK=7/8x7/16},{SK=7/8x7/16},{TC=126.000},{WTIS=3.100},{A=7.00},{B=5.00},{CI=10.5},{CS=9.50},{D=6.720},{FQ=3},{FS=7/8-9NC2 x 2-3/8},{LH=2.81},{LS=2.31},{MH=5.25},{MS=4.81} |
| Installation Torque | 3100.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 0.875 X 0.875 |
| Material | Cast Iron, Class 30 |
| Number of Bolts | 3 |
| Rated Torque | 126000.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
