117440 - Dodge - 4545 X 4-7/16-KW BUSHING
Regular price
$238.34 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

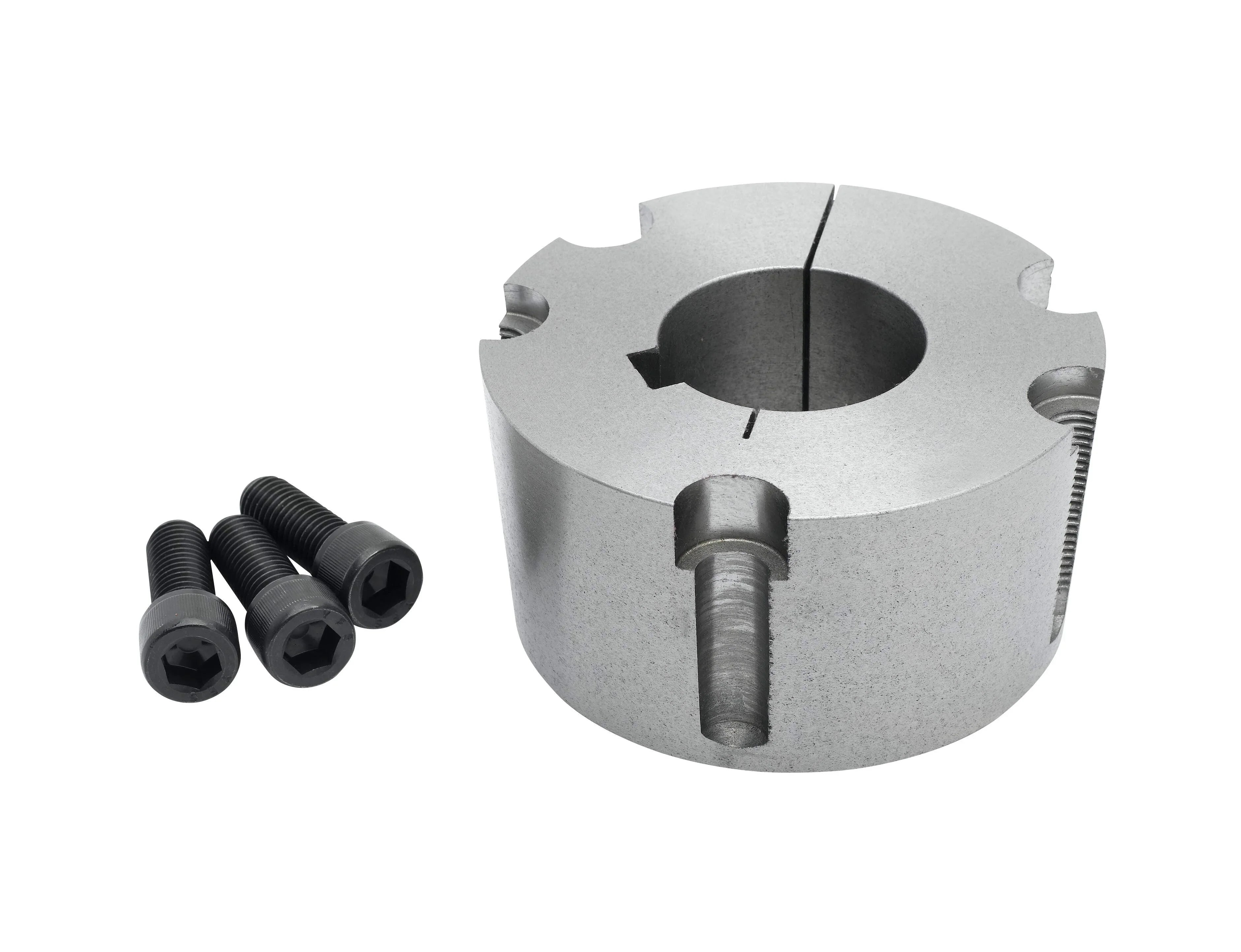

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
117440 - Dodge - 4545 X 4-7/16-KW BUSHING
4545 X 4-7/16-KW BUSHING
Technical Specifications
| Bore Diameter (Actual) | 4.4375 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 4.5000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 4545 |
| Bushing Type | Taper-Lock |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/taper_lock_tl/taper_lock_tl_bushings/tl_b_4545_kt.prj&varset={BORE=4-7/16},{PN=117440},{WT=15.4},{BK=1x1/4},{SK=1x1/2},{TC=110.000},{WTIS=2.450},{A=6.38},{B=4-1/2},{CI=9.50},{CS=8.75},{D=6.130},{FQ=3},{FS=3/4-10NC2 x 2-1/8},{LH=2.63},{LS=1.94},{MH=4.75},{MS=4.1} |
| Installation Torque | 2450.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 1 X 1 |
| Material | Cast Iron, Class 30 |
| Number of Bolts | 3 |
| Rated Torque | 110000.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
