117234 - Dodge - 3535 X 3-7/16-KW BUSHING
Regular price
$119.17 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

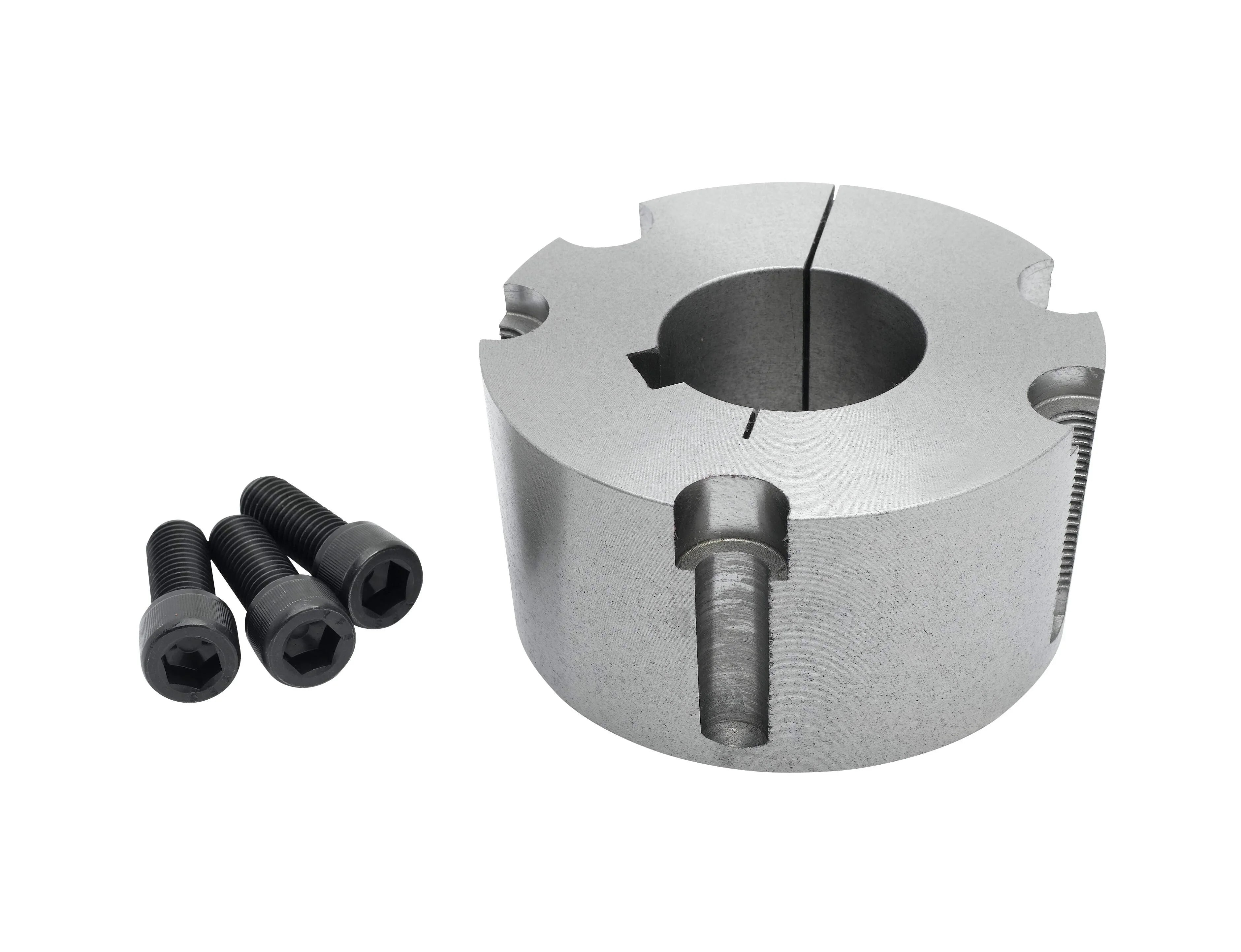

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
117234 - Dodge - 3535 X 3-7/16-KW BUSHING
3535 X 3-7/16-KW BUSHING
Technical Specifications
| Bore Diameter (Actual) | 3.4375 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 3.5000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 3535 |
| Bushing Type | Taper-Lock |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/taper_lock_tl/taper_lock_tl_bushings/tl_b_3535_kt.prj&varset={BORE=3-7/16},{PN=117234},{WT=8.2},{BK=7/8x3/16},{SK=7/8x7/16},{TC=44.800},{WTIS=1.000},{A=5.00},{B=3-1/2},{CI=7.00},{CS=6.50},{D=4.825},{FQ=3},{FS=1/2-13NC2 x 1-5/8},{LH=2.0},{LS=1.31},{MH=3.38},{MS=2.69} |
| Installation Torque | 1000.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 0.875 X 0.625 |
| Material | Cast Iron, Class 30 |
| Number of Bolts | 3 |
| Rated Torque | 44800.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
