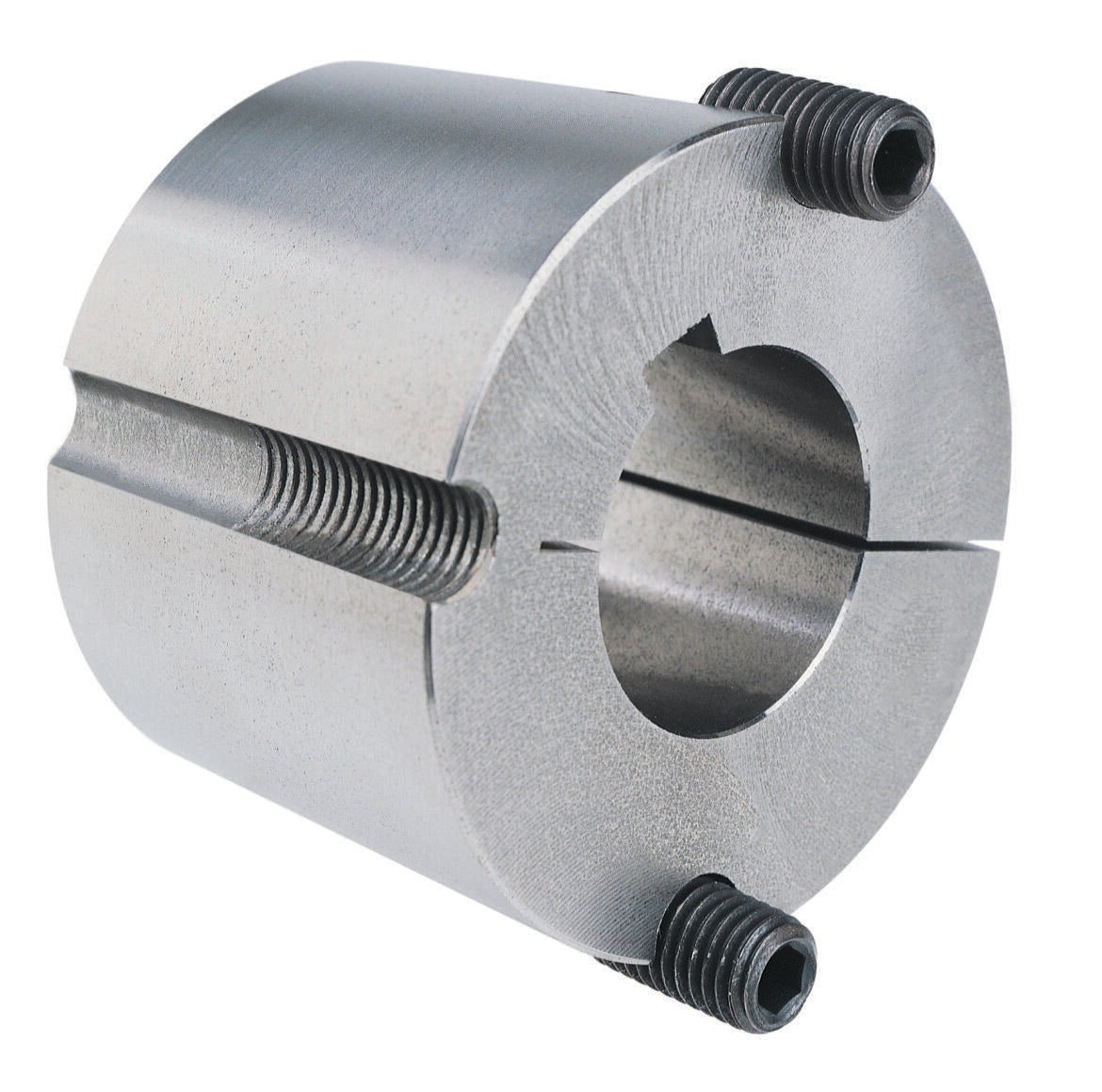

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
117080 - Dodge - 1210 X 1 1/8-KW
1210 X 1 1/8-KW
Technical Specifications
| Bore Diameter (Actual) | 1.1250 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 1.0000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 1210 |
| Bushing Type | Taper-Lock |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/taper_lock_tl/taper_lock_tl_bushings/tl_b_1210_kt.prj&varset={BORE=1-1/8},{PN=117080},{WT=0.4},{BK=1/4x1/8},{SK=1/4x1/8},{TC=3.600},{WTIS=175},{A=1.87},{B=1.0},{CI=3.25},{CS=2.88},{D=1.750},{FQ=2},{FS=3/8-16UNC },{LH=1.38},{LS=0.81},{MH=1.63},{MS=1.1} |
| Installation Torque | 175.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 0.25 X 0.25 |
| Material | Sintered Steel |
| Number of Bolts | 2 |
| Rated Torque | 3600.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
