117079 - Dodge - 1210 X 7/8-KW
Regular price
$19.99 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

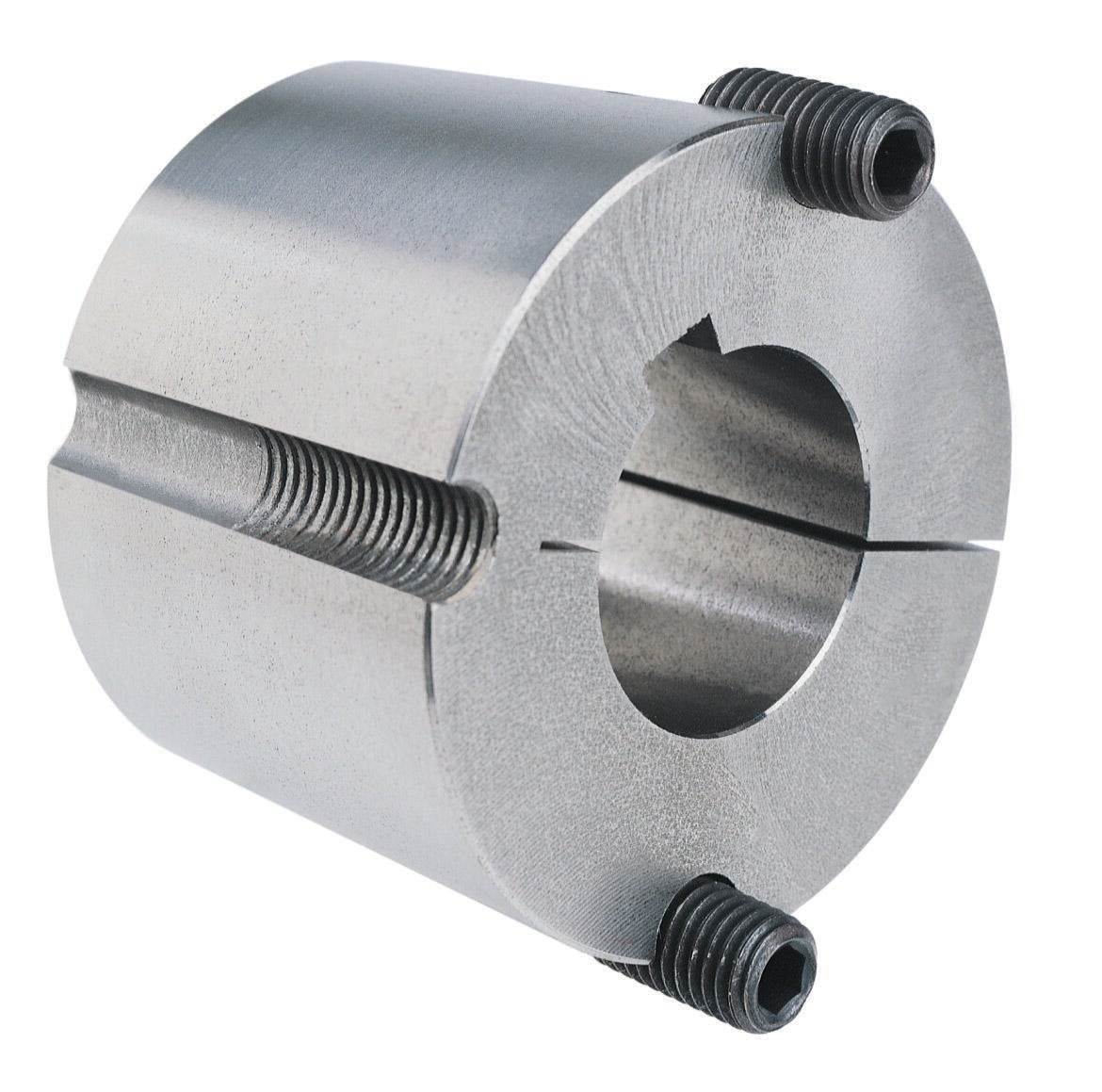

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
117079 - Dodge - 1210 X 7/8-KW
1210 X 7/8-KW
Technical Specifications
| Bore Diameter (Actual) | 0.8750 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 1.0000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 1210 |
| Bushing Type | Taper-Lock |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/taper_lock_tl/taper_lock_tl_bushings/tl_b_1210_kt.prj&varset={BORE=7/8},{PN=117079},{WT=0.5},{BK=3/16x3/32},{SK=3/16x3/32},{TC=3.600},{WTIS=175},{A=1.87},{B=1.0},{CI=3.25},{CS=2.88},{D=1.750},{FQ=2},{FS=3/8-16UNC },{LH=1.38},{LS=0.81},{MH=1.63},{MS=1.1} |
| Installation Torque | 175.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 0.1875 X 0.1875 |
| Material | Sintered Steel |
| Number of Bolts | 2 |
| Rated Torque | 3600.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
