108254 - Dodge - R3VX530-4 BELT | Conveyors

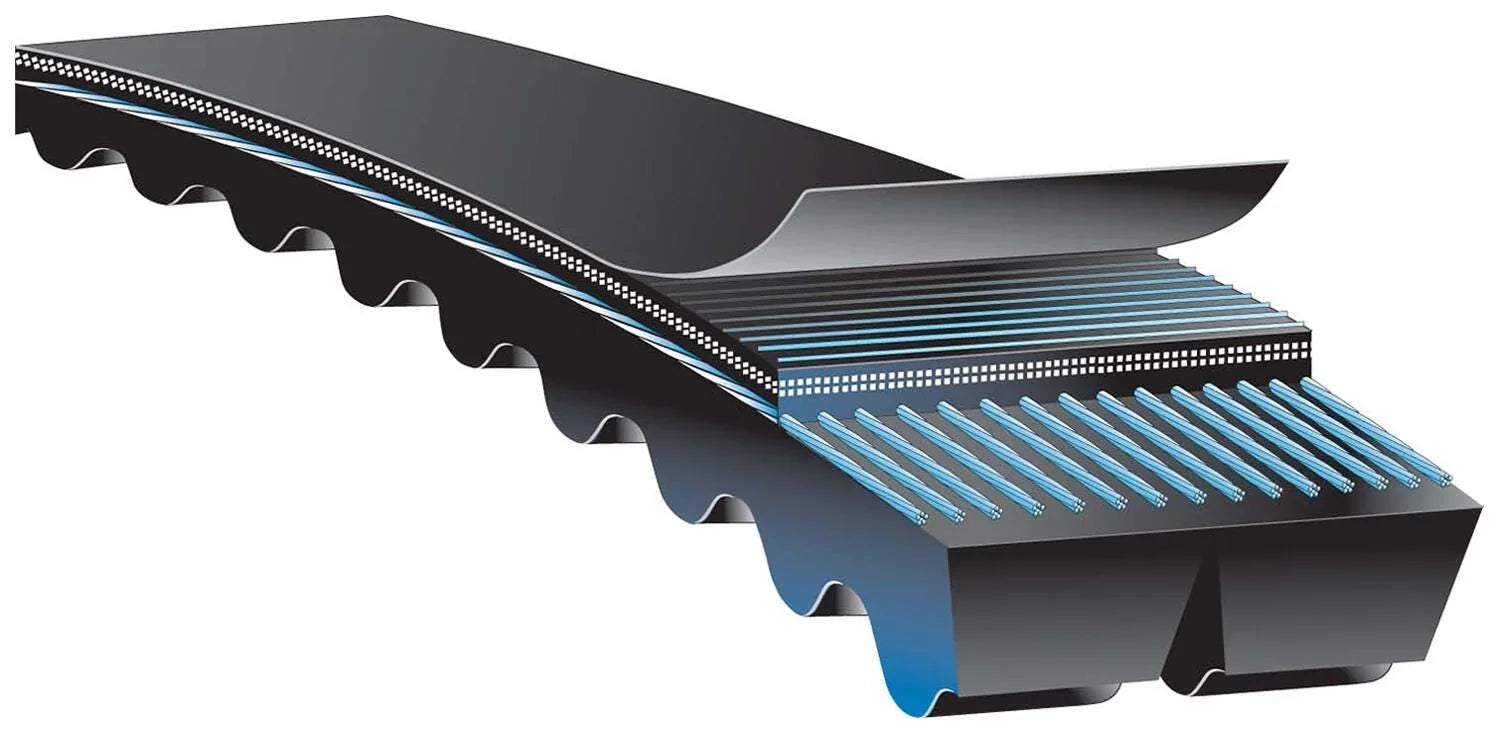

The 108254 - Dodge - R3VX530-4 BELT is a high-performance, narrow cogged banded V-belt engineered for demanding conveyor applications in industrial environments. Designed with superior load-carrying capacity and enhanced flexibility, it ensures reliable power transmission and minimized belt slippage across a wide range of operating conditions.
- Product Type: Narrow Cogged Banded V-Belt
- Category: Conveyors
- Model: R3VX530-4
- Manufacturer: Dodge
- Part Number: 108254
Compared to standard V-belts and previous belt models, the 108254 - Dodge - R3VX530-4 BELT offers greater power efficiency, longer operational life, and reduced maintenance requirements. Its advanced narrow cogged design allows for improved heat dissipation, while the banded structure delivers uniform tension distribution for less vibration and extended belt service life. By surpassing industry standards in durability and performance, this conveyor belt is well positioned for businesses seeking increased throughput and minimal downtime.
Key Technical Advantages:
Technology and Performance
The 108254 - Dodge - R3VX530-4 BELT incorporates cutting-edge materials and construction methods for exceptional reliability in conveyor systems. The narrow cogged profile maximizes contact with pulleys, reducing energy loss and enhancing the transmission of power even in high-speed applications. The banded configuration effectively prevents belt turnover or twisting, maintaining proper alignment under heavy or fluctuating loads.
This Dodge conveyor belt is designed for applications where precision, consistency, and strength are essential. It is particularly effective in environments with rigorous start-stop cycles and variable operating speeds, making it a preferred choice for industrial facilities aiming for peak efficiency. With its proven structural integrity, the 108254 - Dodge - R3VX530-4 BELT sets a new benchmark in conveyor performance and operational dependability.
R3VX530-4 BELT
Technical Specifications
| Belt Height | 0.3125 |
| Belt Height (Unit) | INCH |
| Belt Length Datum | 54.3000 |
| Belt Length Datum (Unit) | INCH |
| Belt Length Outside | 53.0000 |
| Belt Length Outside (Unit) | INCH |
| Belt Type | V-Belt |
| Belt Width | 0.3750 |
| Belt Width (Unit) | INCH |
| Material | Neoprene Rubber Body |
| Maximum Temperature Rating | 180.0000 |
| Maximum Temperature Rating (Unit) | FAHRENHEIT |
| Minimum Temperature Rating | -30.0000 |
| Minimum Temperature Rating (Unit) | FAHRENHEIT |
| Number of Bands | 4 |
| Oil Resistance | Good |
| Reinforcement Material | Length Stabilized Polyester Cord |
| Standards Met | RMA |
| V-Belt Construction | Cogged |
| V-Belt Design | Banded |
| V-Belt Profile | 3V |
