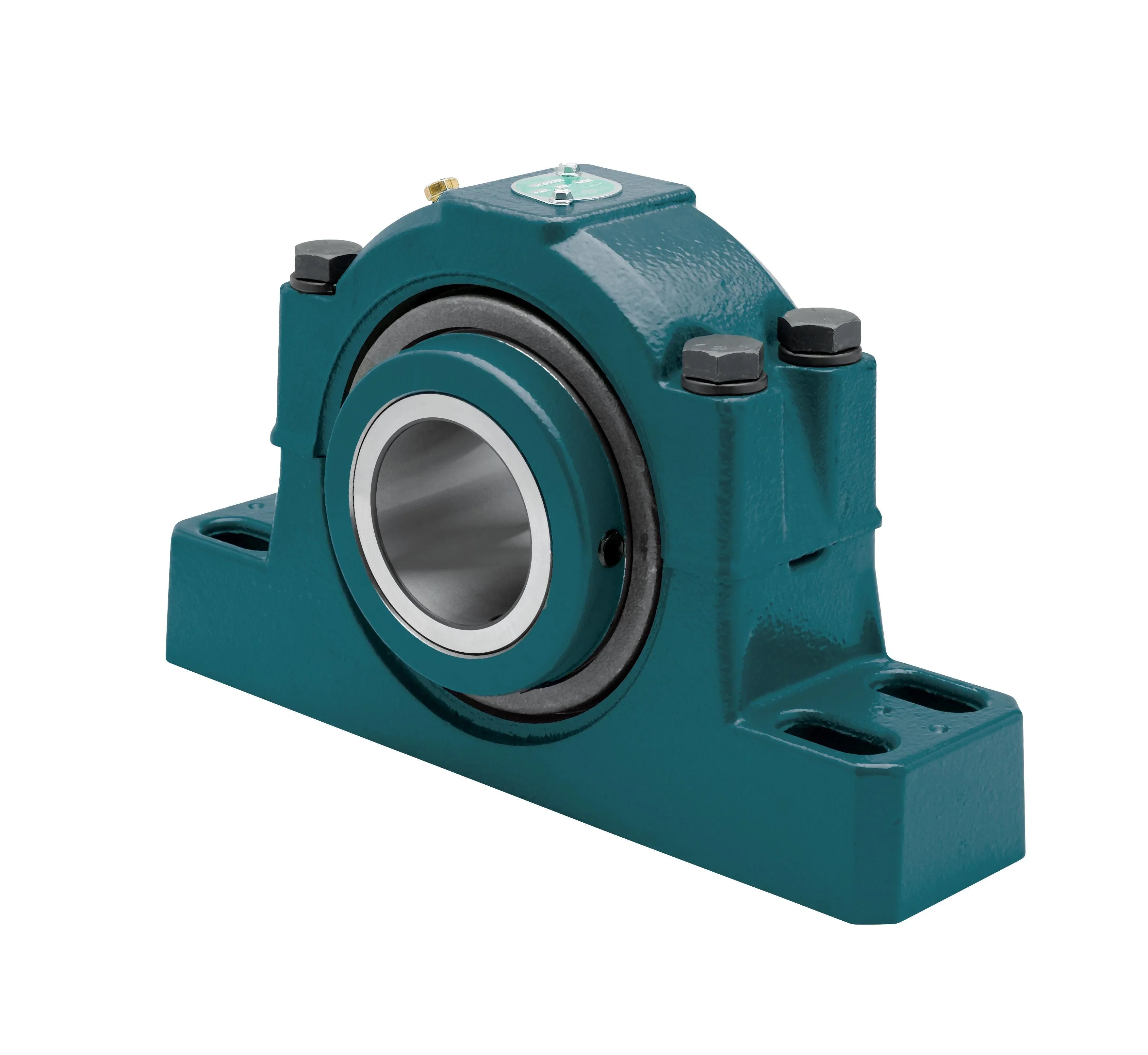

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
080993 - Dodge - P4B-DI-407-HT
P4B-DI-407-HT
Technical Specifications
| Base to Center Height | 5.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 16.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 14.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.2500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 6.7500 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 30000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1360 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 4.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 188400 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-400 |
