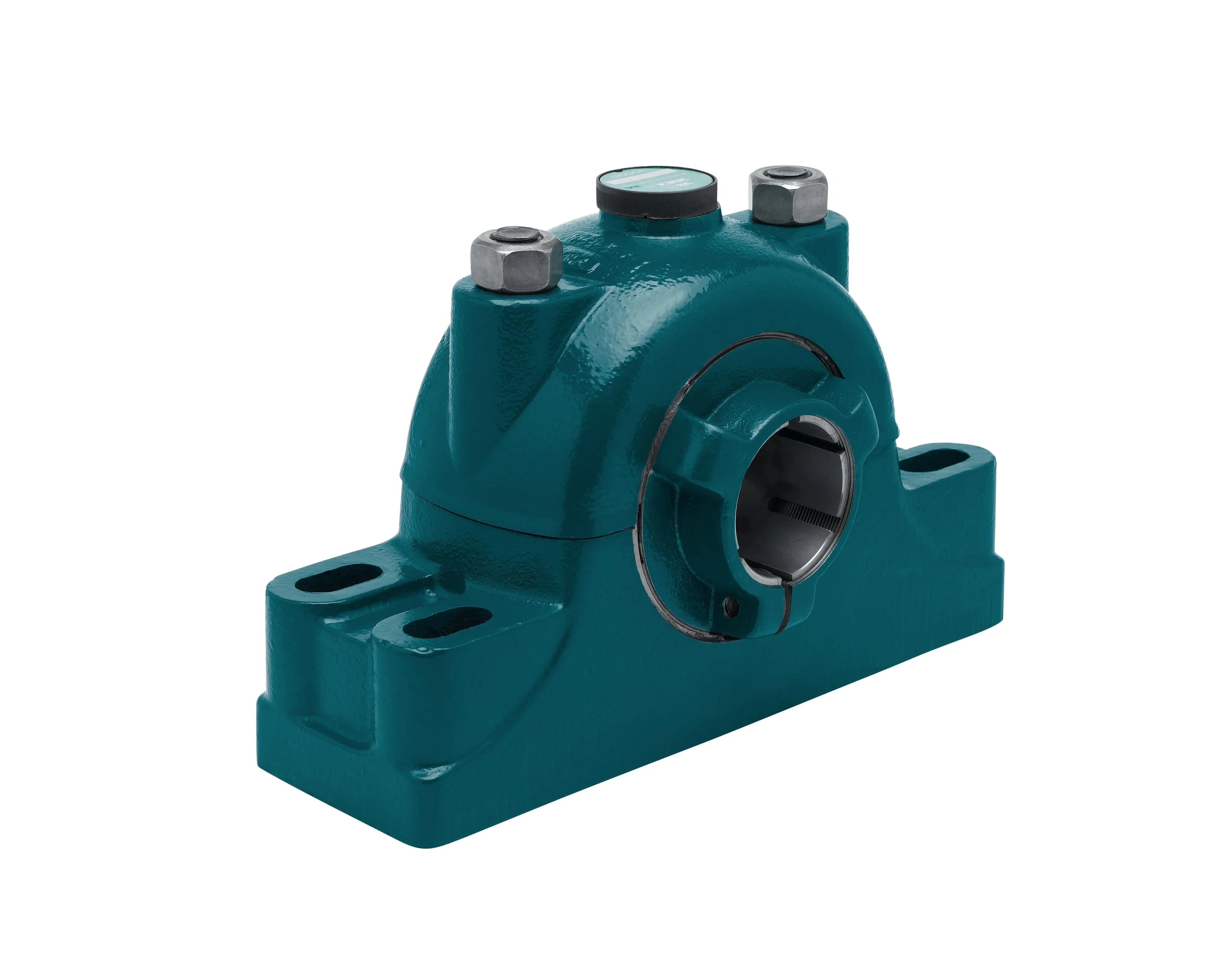

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
080332 - Dodge - P4B-C-215 MOD
P4B-C-215 MOD
Technical Specifications
| Base to Center Height | 4.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 12.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 11.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 6.5000 |
| Bore Length (Unit) | INCH |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-300 |
