077290 - Dodge - P4B-EXL-300RE
Regular price
$1,019.01 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

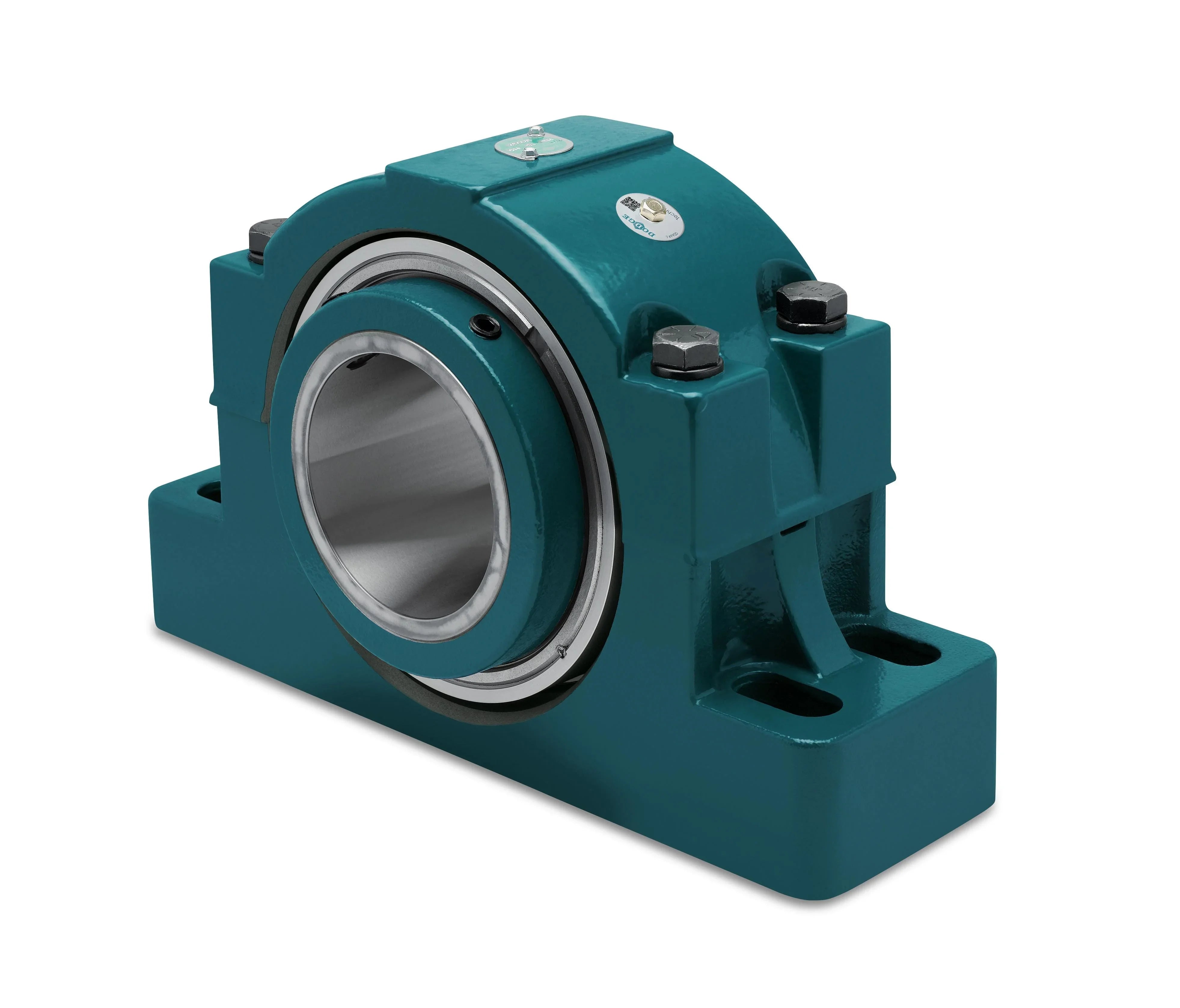

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
077290 - Dodge - P4B-EXL-300RE
P4B-EXL-300RE
Technical Specifications
| Base to Center Height | 3.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 10.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.7500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.1200 |
| Bolt Width (Unit) | INCH |
| Bore Length | 4.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/exl/pb_exl_asmtab.prj&varset={SS=3},{HF=4},{EF=E},{A=4.50},{B=11.75},{H=1.88},{J=6.77},{L=4.72},{M=3.13},{P=7.50},{EXP=0.56}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11120 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | Type E |
| Housing Material | Ductile Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2060 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 61200 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-515,HD-250 |
