077223 - Dodge - P2B-EXL-106R
Regular price
$419.48 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

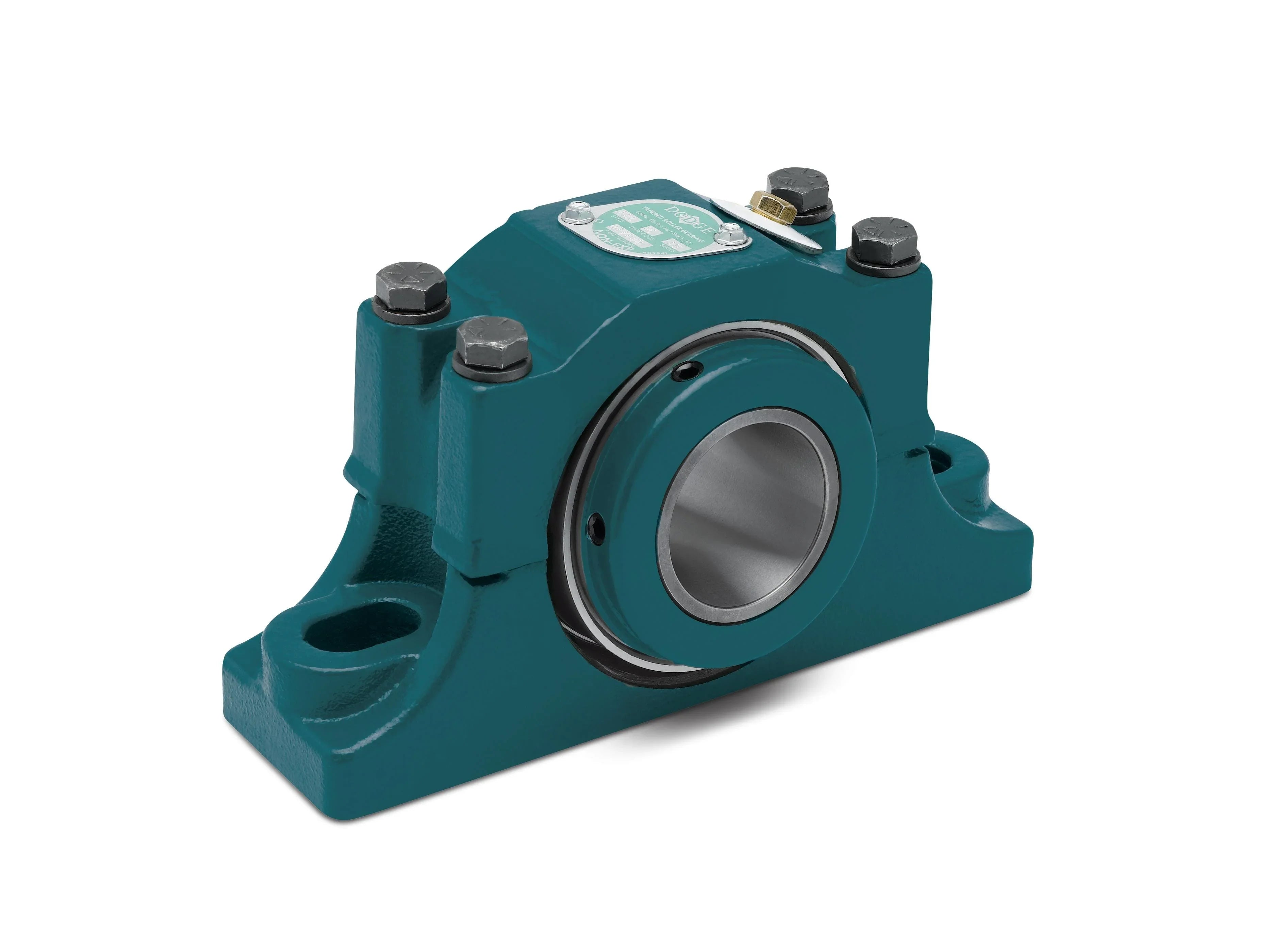

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
077223 - Dodge - P2B-EXL-106R
P2B-EXL-106R
Technical Specifications
| Base to Center Height | 1.8800 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.9400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.3100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/exl/pb_exl_asmtab.prj&varset={SS=1-3/8},{HF=2},{EF=},{A=3.00},{B=7.25},{H=1.13},{J=4.17},{L=2.75},{M=1.88},{P=4.63},{EXP=0.56}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | Type E |
| Housing Material | Ductile Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3820 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.3750 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 26000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-308,HD-200 |
