066257 - Dodge - P2B-SD-202E SPECIAL DUTY
Regular price
$2,817.10 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

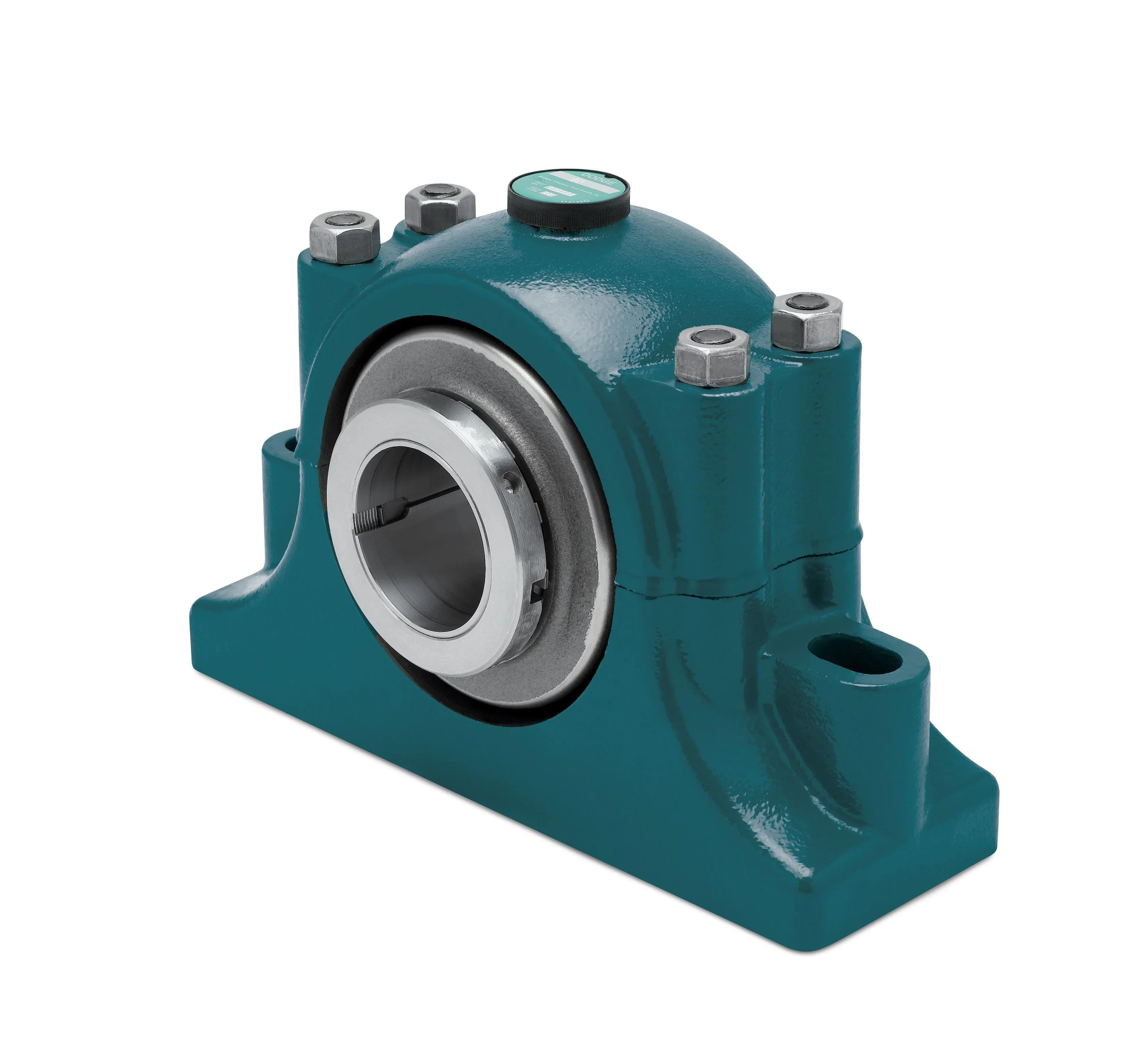

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
066257 - Dodge - P2B-SD-202E SPECIAL DUTY
P2B-SD-202E
Technical Specifications
| Base to Center Height | 3.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 10.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.1300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.5600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/special_duty/p2b_sd_asmtab.prj&varset={SS=2-1/8},{TYPE=2},{A=4-9/16},{B=12},{C=4},{DMIN=9-1/8},{DMAX=10-3/8},{F=5/8},{G=1-1/4},{H=2-7/8},{J=8},{L=3-7/16},{M=3-3/4},{P=7-1/4},{R=2-1/16},{S=2-1/2},{EXP=5/8}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 10716 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Piston Ring |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 2.1250 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-250 |
