066246 - Dodge - P2B-SD-208 SPECIAL DUTY
Regular price
$3,219.85 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

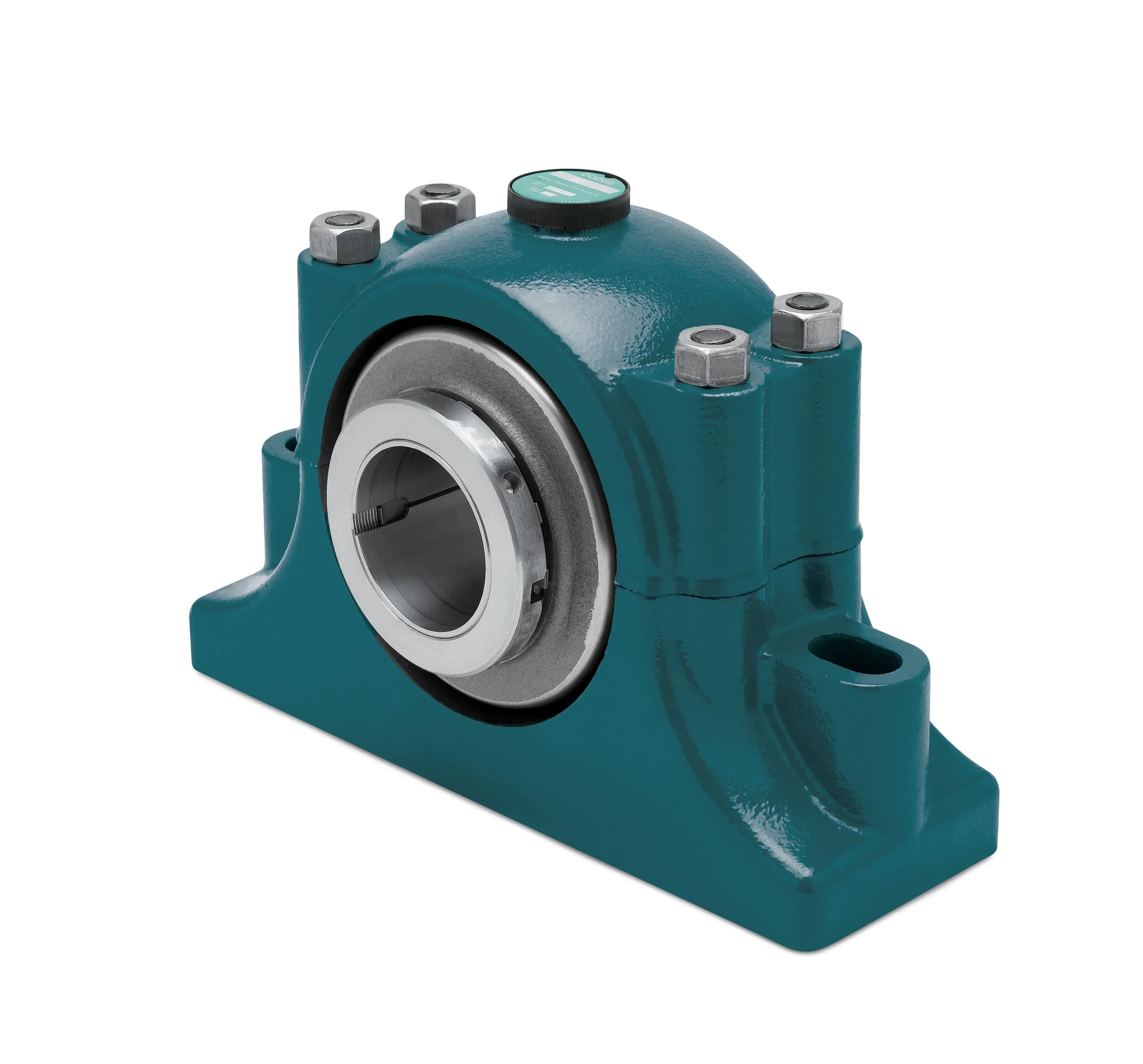

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
066246 - Dodge - P2B-SD-208 SPECIAL DUTY
P2B-SD-208
Technical Specifications
| Base to Center Height | 4.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 11.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 10.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 5.0600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/special_duty/p2b_sd_asmtab.prj&varset={SS=2-1/2},{TYPE=1},{A=5-1/16},{B=13-1/4},{C=4-1/4},{DMIN=10},{DMAX=11-1/2},{F=3/4},{G=1-1/2},{H=3},{J=8-9/16},{L=3-13/16},{M=4},{P=7-13/16},{R=2-5/16},{S=2-3/4},{EXP=5/8}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11010 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Piston Ring |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 2.5000 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-250 |
