066237 - Dodge - P2B-SD-306 SPECIAL DUTY
Regular price
$6,309.78 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

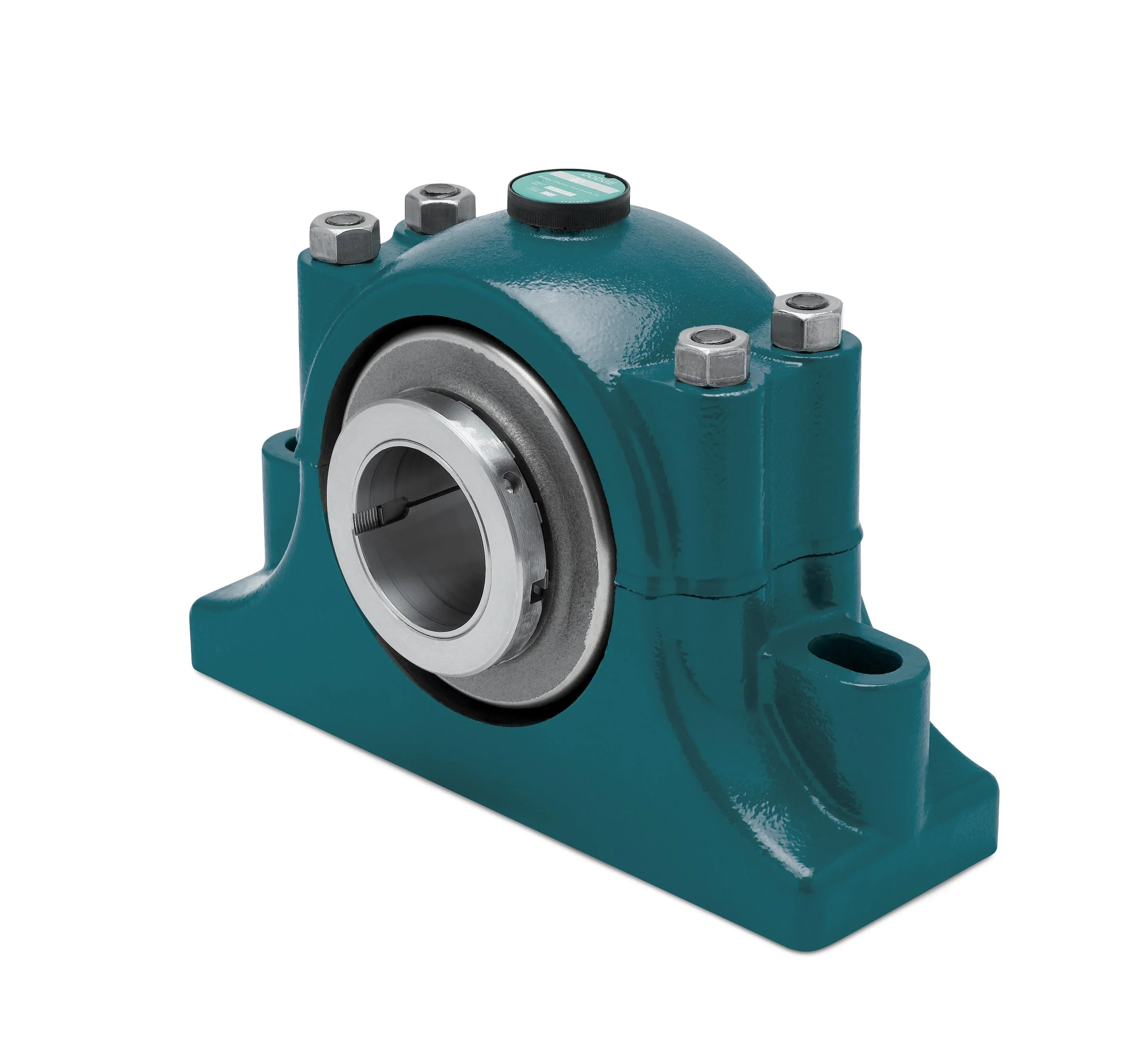

066237 - Dodge - P2B-SD-306 SPECIAL DUTY
P2B-SD-306
Technical Specifications
| Base to Center Height | 5.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 14.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 13.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 6.3800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/special_duty/p2b_sd_asmtab.prj&varset={SS=3-3/8},{TYPE=1},{A=6-3/8},{B=16-3/4},{C=5-1/2},{DMIN=13-1/4},{DMAX=14-1/4},{F=7/8},{G=1-1/2},{H=4},{J=11-3/8},{L=5-1/16},{M=5-1/2},{P=11-1/4},{R=2-15/16},{S=3-7/16},{EXP=3/4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 23553 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Piston Ring |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 3.3750 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-350 |
