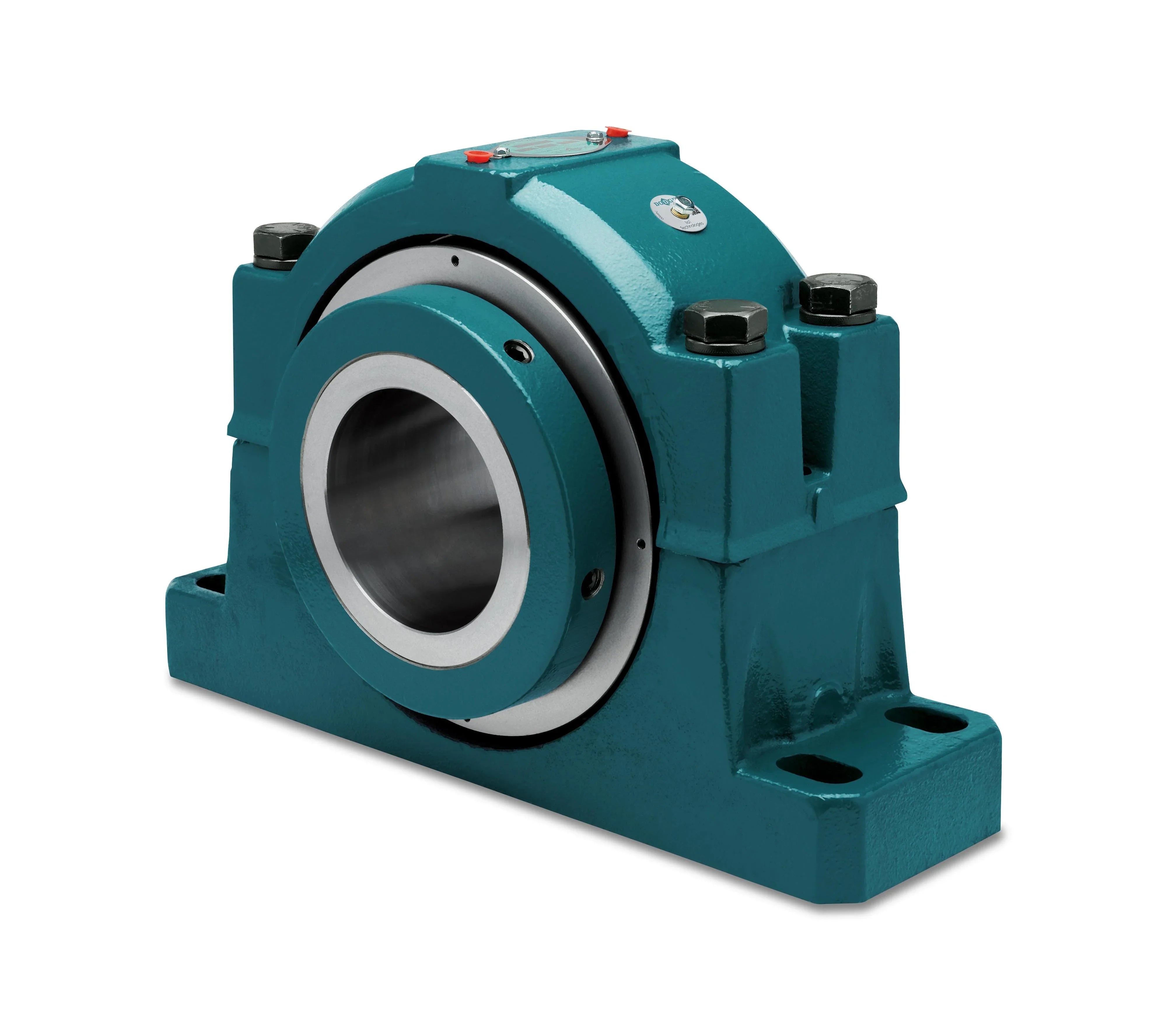

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
037630 - Dodge - P4B528-TAF-415RE
P4B528-TAF-415RE
Technical Specifications
| Base to Center Height | 6.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 17.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 15.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.8800 |
| Bolt Width (Unit) | INCH |
| Bore Length | 7.2500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/taf/p4b_taf_ex_asmtab.prj&varset={SS=4-15/16},{SERIES=528},{PN=037630},{DESCRIPTION=P4b-taf-415re},{HF=4},{EF=Expansion Type},{A=7.25},{B=19.71},{C=5.88},{DMIN=15.63},{DMAX=17.38},{E=3.38},{F=1},{G=2},{H=2.06},{J=12.58},{K=3.625},{L=7.45},{M=6},{P=13.36},{T=0.34},{SC=266000},{DC=35500},{RN=25},{RMD=0.68},{PD=6.573},{EP=0.008/0.012},{CSS=5/8-11x1-1/4},{CST=1325},{HM=A48 CLASS 30},{CM=4118 CASE CARB.},{CUM=4118 CASE CARB.},{RM=STEEL},{ROM=4118 CASE CARB.},{SM=2.91}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 41310 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 4.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 266000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-400 |
